Model
Kenmore 106.58014400
Side-By-Side Refrigerator (Kenmore 10658014400)
Parts Sections (11)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
106.58014400Side-By-Side Refrigerator (Kenmore 10658014400)
11 diagrams315 parts
Parts Sections (11)
Diagram

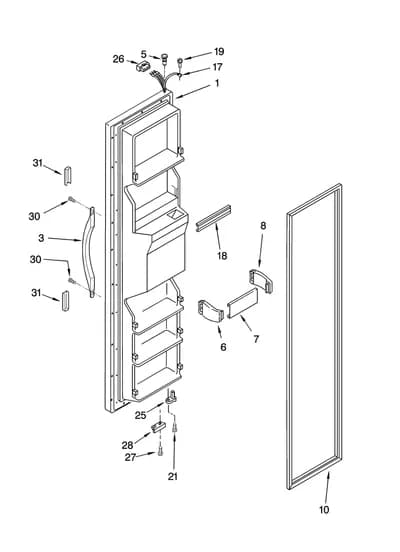

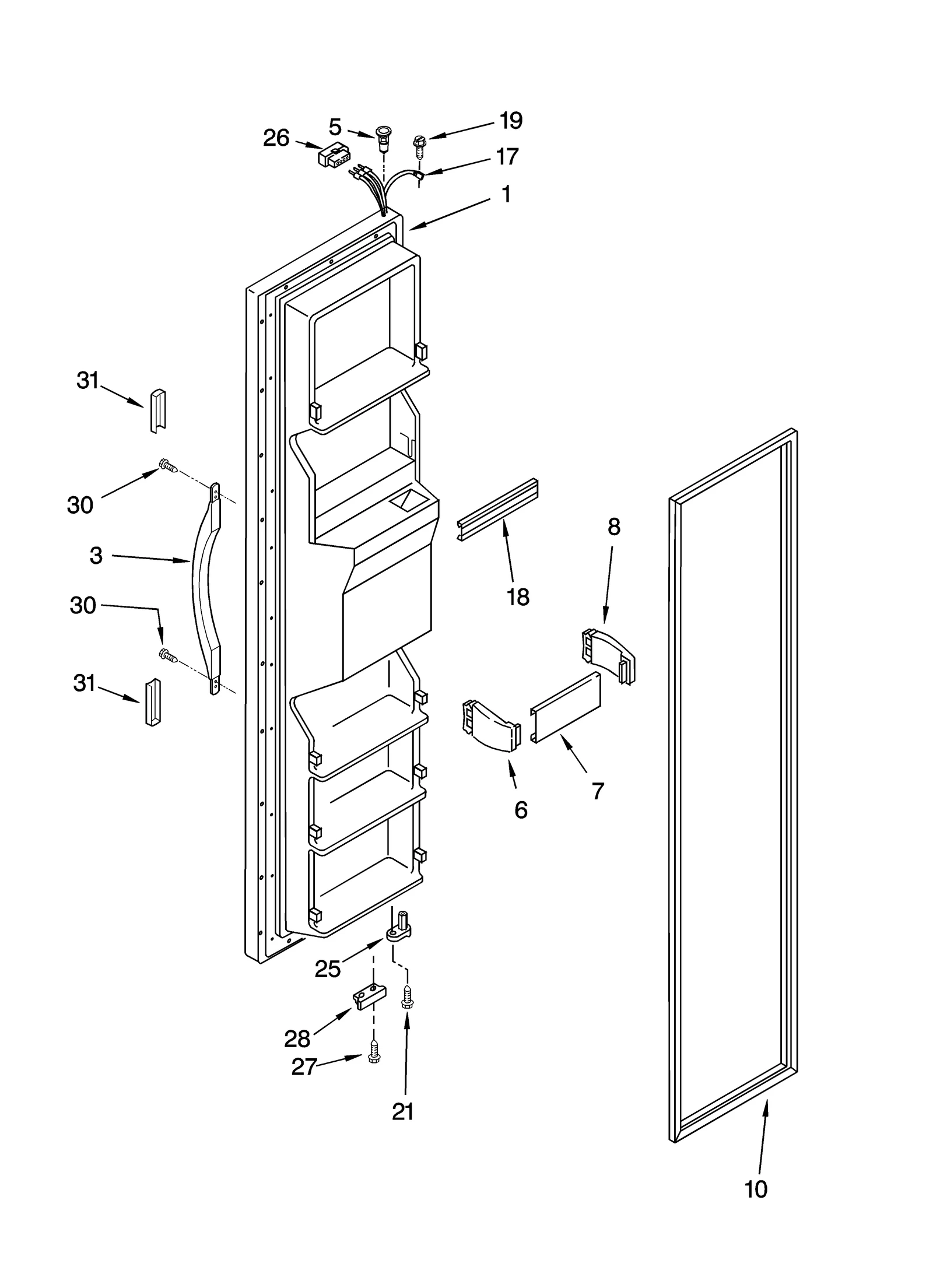

FREEZER DOOR PARTS
Parts in FREEZER DOOR PARTS
25 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 2308064W Freezer Door Assembly (White) | - |
| 1A | – | 2308064T Freezer Door Assembly (Bisque) | - |
| 1B | – | 2308064B Freezer Door Assembly (Black) | - |
| 3 |  | 2207206WNLA Refrigerator Door Handle Assembly | Discontinued |
| 3A | | 2207206TNLA Refrigerator Handle (Off-White) | Discontinued |
| 3B |  | Refrigerator Handle (Black) | Discontinued |
| 5 |  | WP2182181replaces 2182181 Refrigerator Door Hinge Bushing | $3.55 Part Advantage |
| 6 |  | WP2195916Kreplaces 2195916 Refrigerator End Cap | $6.48 Part Advantage |
| 7 | | Refrigerator Trim | - |
| 8 |  | WP2195917Kreplaces 2195917 Refrigerator End Cap | $9.95 ApplianceParts Pro |
| 10 |  | 2159072replaces 2221301 Refrigerator Gasket Panel | $89.31 Part Advantage |
| 10A |  | 2159080replaces 2221312 Refrigerator Gasket Panel (Black) | $142.47 Parts Dr |
| 17 | – | 2207215 Refrigerator Wire Harness | - |
| 18 |  | WPW10307490replaces 2209680 Refrigerator Door Trim | $7.87 Part Advantage |
| 19 |  | WP489128replaces 8281149 Refrigerator Screw | $5.96 Parts Dr |
| 21 |  | WP3400012replaces 3400012 Refrigerator Door Hinge Screw | $7.47 PartSelect |
| 25 |  | WP2182179replaces 2182179 Refrigerator Door Closer Cam | $2.96 Amazon |
| 26 |  | WP2154473replaces 2154473 Refrigerator Wire Harness Connector | $15.95 ApplianceParts Pro |
| 27 |  | WP489483replaces 489420 SCREW | $11.77 PartSelect |
| 28 |  | WP2206629Breplaces 2206629 Refrigerator Door Stop Bracket | $14.98 Parts Dr |
| 28A | | WP2206629Breplaces 2206629B Refrigerator Bracket (Black) | $14.98 Parts Dr |
| 30 |  | WP489491replaces 489491 Refrigerator Screw | $3.66 Parts Dr |
| 31 | | 2194272WNLA Refrigerator Door Handle Trim Cap | Discontinued |
| 31A | | Refrigerator Door Handle End Cap | - |
| 31B |  | WP2194272Breplaces 2194272B Refrigerator End Cap Handle (Black) | $9.27 Parts Dr |
