Model
Kenmore 110.22936102
Washer (Kenmore 11022936102)
Parts Sections (11)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
110.22936102Washer (Kenmore 11022936102)
11 diagrams252 parts
Parts Sections (11)
Diagram

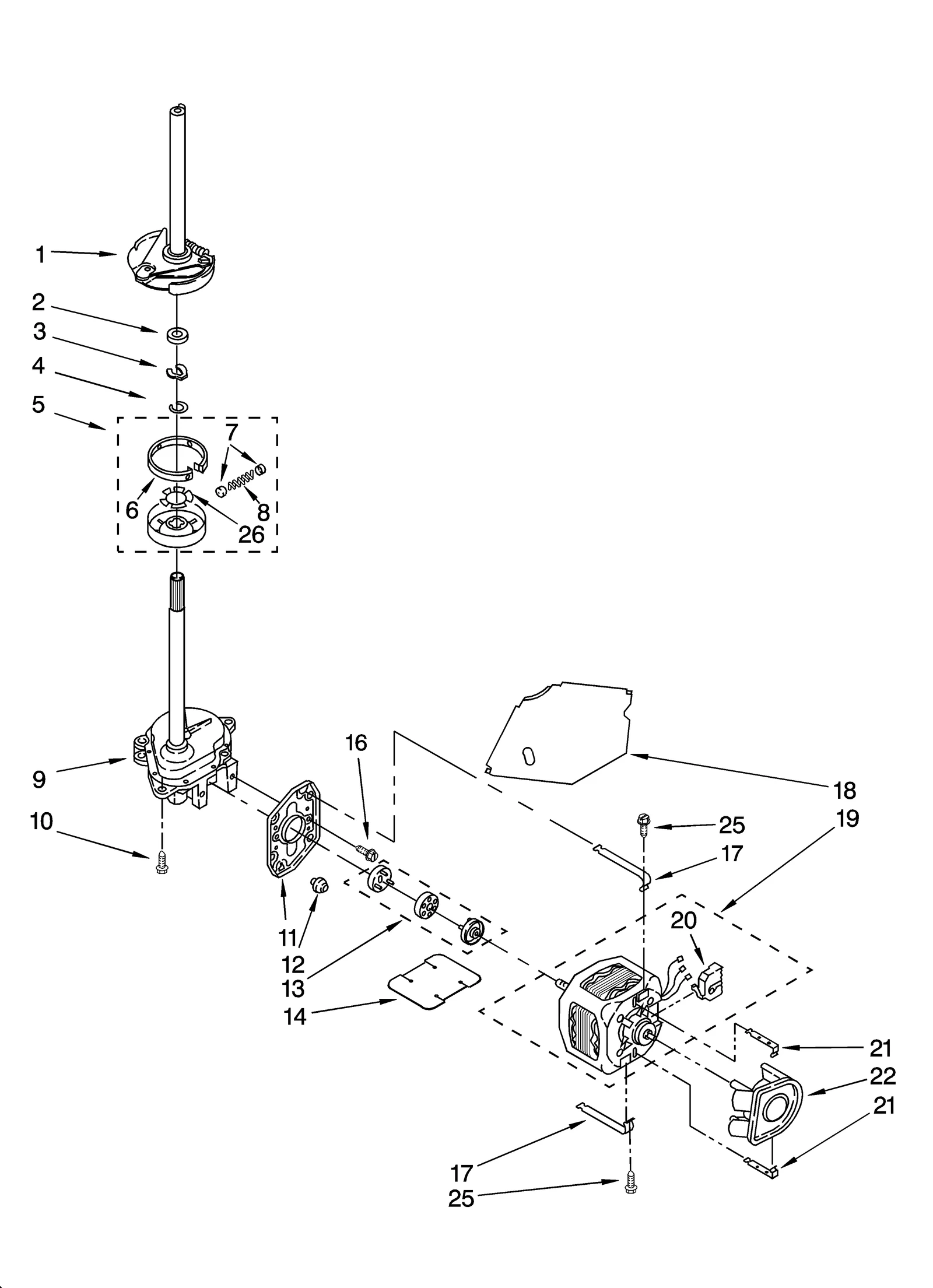

BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP PARTS
Parts in BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP PARTS
23 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | W10820043replaces 388952 Drive Basket | $80.05 Part Advantage |
| 2 |  | WP63292replaces 63292 Washing Machine Washer | $3.38 Part Advantage |
| 3 |  | WPW10080230replaces 62697 Ring | $7.77 RepairClinic |
| 4 |  | 285353replaces 63283 Ring | $5.00 RepairClinic |
| 5 |  | WP8299642replaces 8299642 Clutch Washer | $63.09 Part Advantage |
| 6 |  | W10817888replaces 3951993 Washer Clutch Band | $44.96 Part Advantage |
| 7 |  | WP62646replaces 62646 Cap, Clutch Spring | $2.30 Part Advantage |
| 8 |  | WP8559387replaces 3946846 Spring | $5.95 ApplianceParts Pro |
| 9 |  | 3360629replaces 3360630 Gear Case | $225.98 Part Advantage |
| 10 |  | WP3400516replaces 3357334 Screw | $2.30 Part Advantage |
| 11 |  | WP62611replaces 62611 Plate | $37.95 Part Advantage |
| 12 |  | WP62691replaces 62691 Washer Drive Motor Grommet | $4.85 Part Advantage |
| 13 |  | 285753Areplaces 285753 Washer Motor Coupling | $8.80 Part Advantage |
| 14 |  | WP3946532replaces 3946532 Shield | $20.49 ApplianceParts Pro |
| 16 | | WP3400516replaces 3400516 Washer Screw | $2.30 Part Advantage |
| 17 |  | WPW10086010replaces 3349637 Motor Retainer | $5.00 RepairClinic |
| 18 |  | W10838408replaces 3362089 Motor Shield | - |
| 19 |  | Washer Drive Motor | Discontinued |
| 20 |  | 8529896NLA Washer Motor Switch | Discontinued |
| 21 |  | WP8546127replaces 62700 Retainer | $2.76 Part Advantage |
| 22 |  | WP3363394replaces 3363394 Washer Drain Pump | $22.37 Part Advantage |
| 25 |  | WP273556replaces 3387485 Washer Screw | $2.30 Part Advantage |
| 26 |  | WP3355454replaces 3355454 Clip | $3.38 Part Advantage |
