Model
Kenmore 110.22952102
Washer (Kenmore 11022952102)
Parts Sections (11)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
110.22952102Washer (Kenmore 11022952102)
11 diagrams266 parts
Parts Sections (11)
Diagram

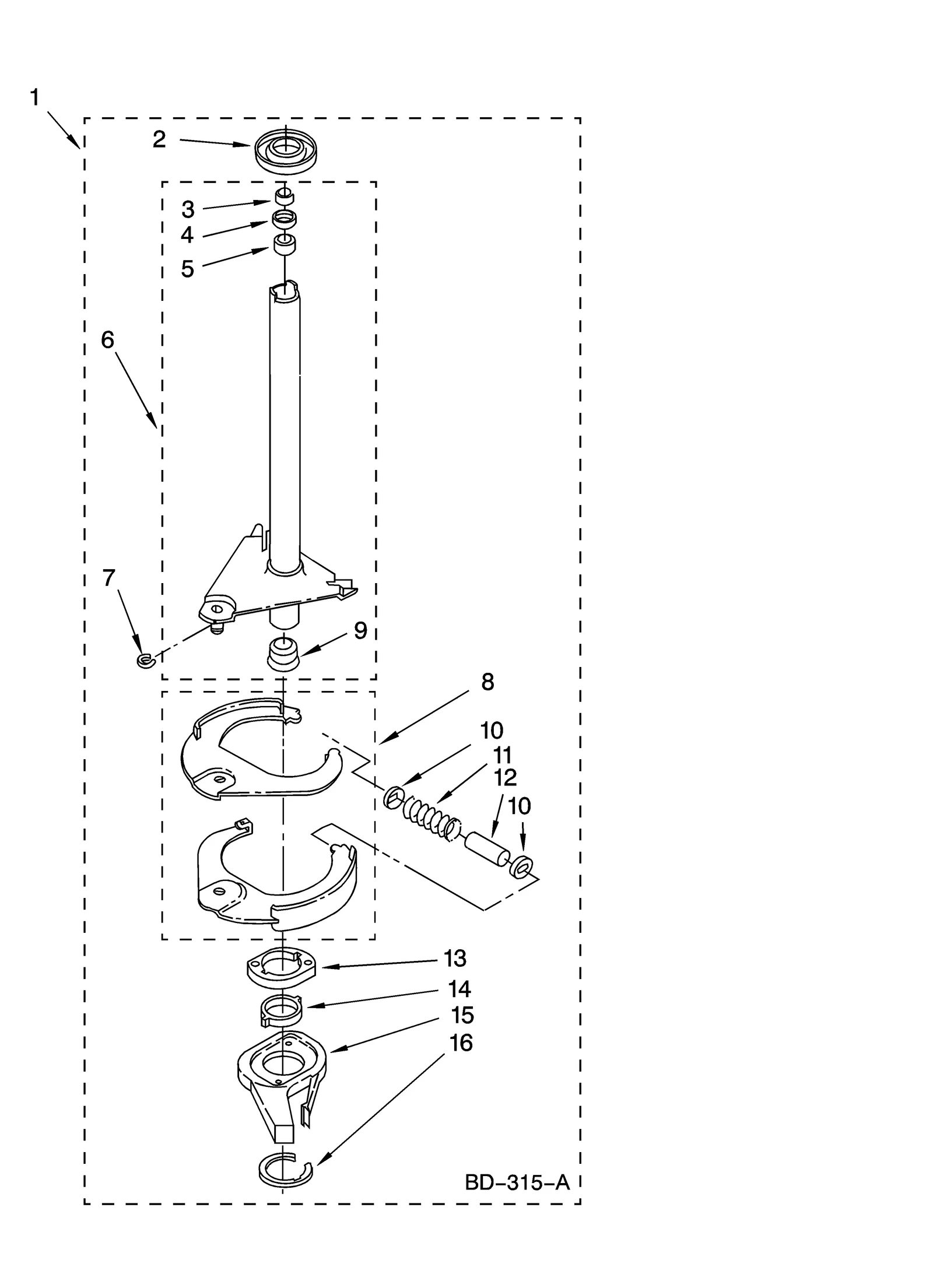

BRAKE AND DRIVE TUBE PARTS
Parts in BRAKE AND DRIVE TUBE PARTS
17 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | W10820043replaces 388952 Drive Basket | $80.05 Part Advantage |
| 2 |  | WP62658replaces 62658 Slinger | $8.16 RepairClinic |
| 3 |  | WP91939replaces 91939 Shaft Seal | $3.55 Part Advantage |
| 4 |  | WP356427replaces 356427 Shaft Seal | $3.55 Part Advantage |
| 5 |  | 356937NLA Spacer | Discontinued |
| 6 |  | WP64208replaces 64027 Drive Tube | $154.38 ApplianceParts Pro |
| 7 |  | W10083190replaces 64035 Ring | $6.14 Parts Dr |
| 8 |  | 285438replaces 64232 Brake Shoe | $76.18 Parts Dr |
| 9 |  | WP8546462replaces 62703 Bearing | $3.55 Part Advantage |
| 10 |  | 285658replaces 62648 Cap | $9.50 ApplianceParts Pro |
| 11 |  | 387806NLA Spring | Discontinued |
| 12 | | 285658replaces 62909 Sleeve | $9.50 ApplianceParts Pro |
| 13 |  | WP8546461replaces 63023 Cam | $5.00 RepairClinic |
| 14 |  | WP63022replaces 63022 Sleeve | - |
| 15 |  | 285790replaces 64194 Washer Brake Cam Driver | $27.09 Parts Dr |
| 16 |  | W11033823replaces 90368 Ring | $6.26 Parts Dr |
| NI | | 285208NLA Washer Brake Shoe Roller and Pin Lubricant | Discontinued |
