Model
Kenmore 110.72409430
Electric Washer (Kenmore 11072409430)
Parts Sections (10)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
110.72409430Electric Washer (Kenmore 11072409430)
10 diagrams298 parts

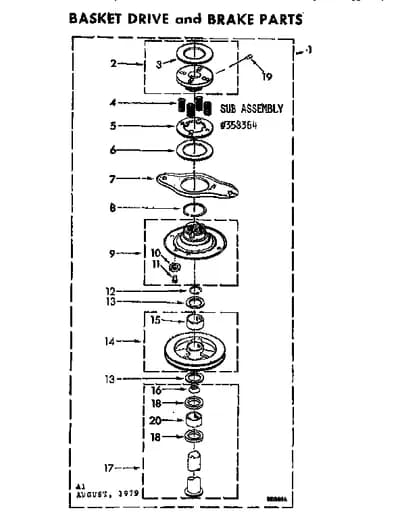

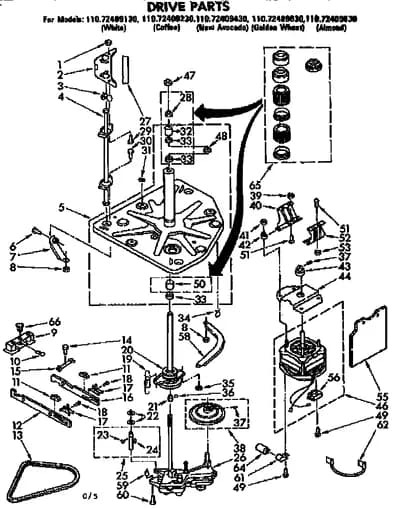

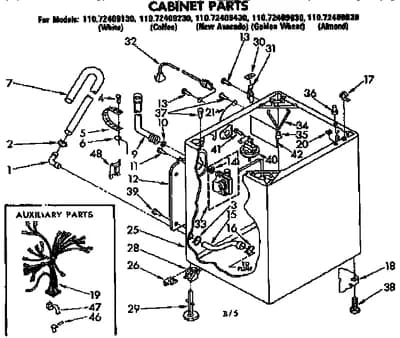

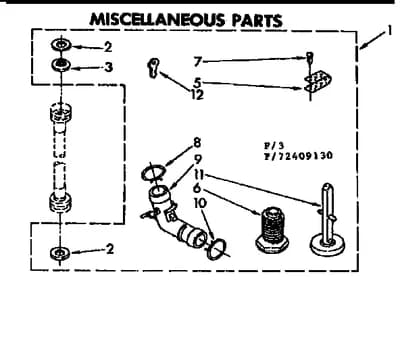

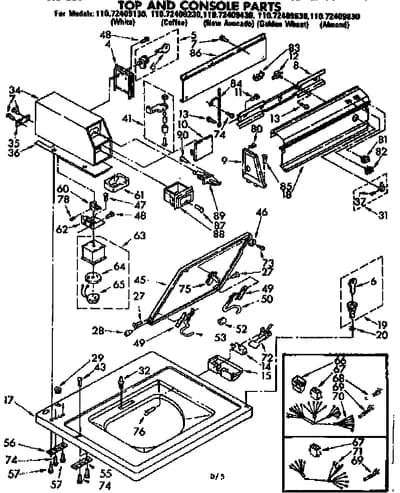

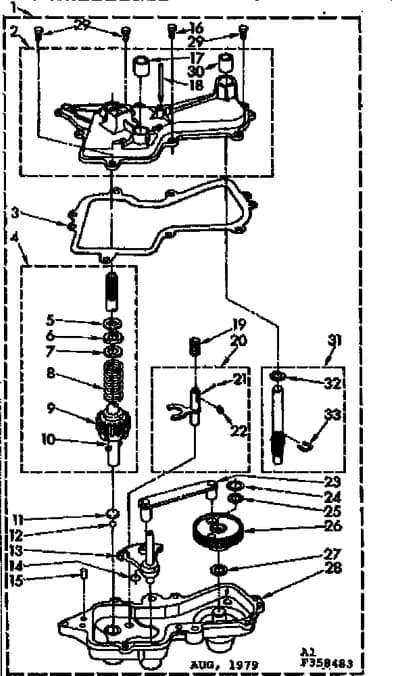

Parts Sections (10)
Diagram

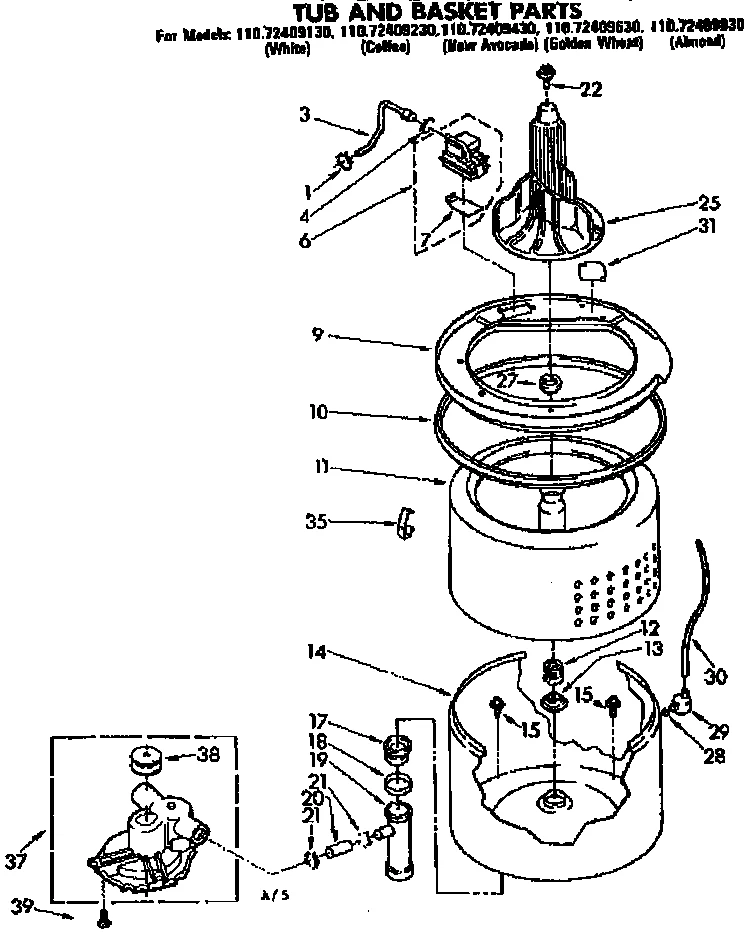

TUB AND BASKET PARTS
Parts in TUB AND BASKET PARTS
28 parts

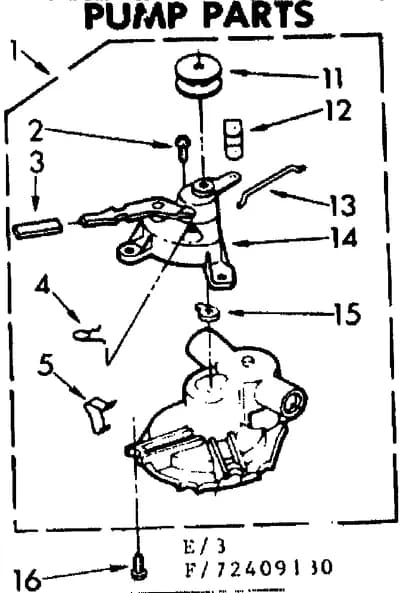

| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | WP596669replaces 272846 Hose Clamp | $2.30 Part Advantage |
| 3 |  | 356349NLA Hose | Discontinued |
| 4 | | WP596669replaces 272847 Clamp | $2.30 Part Advantage |
| 6 |  | 366072NLA Inlet | Discontinued |
| 7 | – | 355584 Flapper | - |
| 9 | – | 381971 Ring | - |
| 10 | | Washer Tub Ring Seal | - |
| 11 | | 383963NLA Basket | Discontinued |
| 12 |  | 96384NLA Washer Drive Block | Discontinued |
| 13 |  | W10814296replaces 96690 Gasket | $2.49 Part Advantage |
| 14 | – | 359590 Tub | - |
| 15 | – | 370571 Screw | - |
| 17 |  | 93553NLA Washer Outer Tub Grommet | Discontinued |
| 18 | – | 9421321 Clamp | - |
| 19 | | 84091NLA Manifold | Discontinued |
| 20 | | 92231NLA Hose | Discontinued |
| 21 |  | WP285655replaces 272858 Hose Clamp | $3.38 Part Advantage |
| 22 |  | WP358237replaces 359198 Stud Assembly | $2.22 Part Advantage |
| 25 | – | 365779 Agitator (White) | - |
| 27 |  | WP21366replaces 21366 Washer Spanner Nut | $3.38 Part Advantage |
| 28 | | 351830NLA Washer Seal | Discontinued |
| 29 | – | 360804 Air Dome | - |
| 30 |  | WP353244replaces 355221 Hose | $31.19 Part Advantage |
| 31 | | Washer Snubber Plate | - |
| 35 |  | Washer Tub Ring Clip | - |
| 37 |  | 350365replaces 358036 Pump | $58.59 Parts Dr |
| 38 | | 359630NLA Pulley | Discontinued |
| 39 | | Screw Pump to Gear Case, 5/16-18 x 7-in | $32.95 ApplianceParts Pro |
