ModelKenmore
110.72960600Washer (Kenmore 11072960600)
11 diagrams342 parts
Parts Sections (11)
Diagram

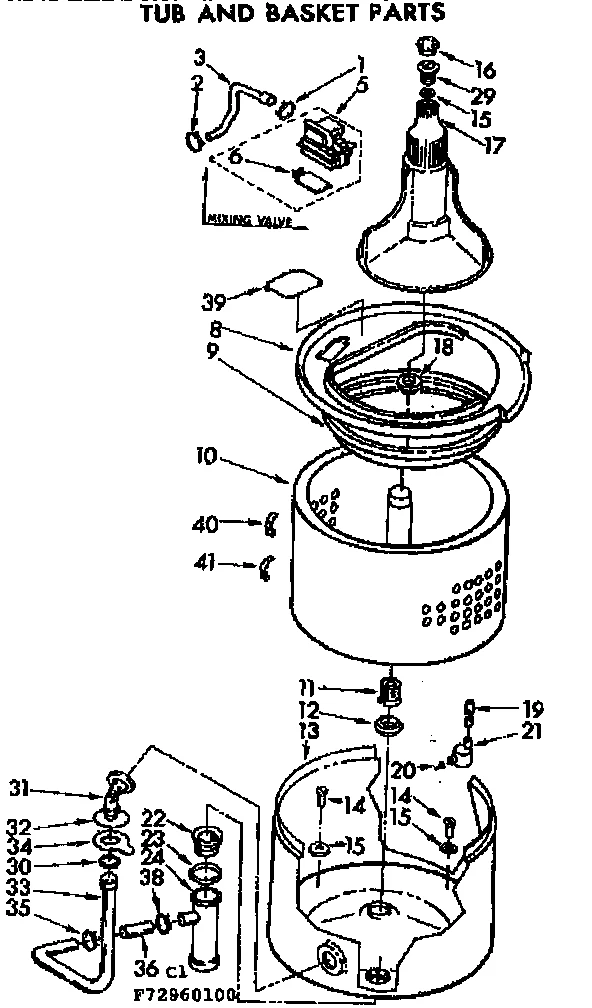

TUB AND BASKET PARTS
Parts in TUB AND BASKET PARTS
37 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | WP596669replaces 353366 Clamp | $2.30 Part Advantage |
| 2 | | WP596669replaces 353367 Hose Clamp | $2.30 Part Advantage |
| 3 |  | 356349NLA Hose | Discontinued |
| 5 |  | 366072NLA Inlet | Discontinued |
| 6 | – | 355584 Flapper | - |
| 8 | – | 356038 Ring | - |
| 9 | | 356584NLA Washer Seal | Discontinued |
| 10 | – | 357968 Basket | - |
| 11 |  | WP389140replaces 357782 Block | $7.71 Part Advantage |
| 12 |  | W10814296replaces 96690 Gasket | $2.49 Part Advantage |
| 13 | – | 366555 Tub | - |
| 13A | – | 360787 Tub | - |
| 14 | – | 356973 Screw | - |
| 15 |  | WP21365replaces 21365 Washer | $7.39 RepairClinic |
| 16 | – | 356880 Cap | - |
| 17 | – | 369492 Agitator | - |
| 18 |  | WP21366replaces 21366 Washer Spanner Nut | $3.38 Part Advantage |
| 19 |  | WP353244replaces 353243 Hose | $31.19 Part Advantage |
| 20 | | 351830NLA Washer Seal | Discontinued |
| 21 | – | 360804 Air Dome | - |
| 22 | | 96386NLA Washer Outer Tub Grommet | Discontinued |
| 23 | – | 9421321 Clamp | - |
| 24 | | 84091NLA Manifold | Discontinued |
| 29 |  | WP358237replaces 357082 Screw | $2.22 Part Advantage |
| 30 |  | WP356138replaces 353095 Clamp | $3.38 Part Advantage |
| 31 | | Funnel | - |
| 32 | | Gasket | - |
| 33 | | 92272NLA Hose | Discontinued |
| 34 | | Lock Nut | - |
| 35 |  | WP285655replaces 353093 Clamp | $3.38 Part Advantage |
| 36 | – | N/P (338471) (ALT.) | - |
| 36A | | 357130NLA Hose | Discontinued |
| 36B | – | 96251 Hose | - |
| 38 | | WP285655replaces 272858 Hose Clamp | $3.38 Part Advantage |
| 39 | | Washer Snubber Plate | - |
| 40 | – | 356700 Clip | - |
| 41 | – | 356701 Clip | - |
