Kenmore 110.81310110
Electric Washer (Kenmore 11081310110)
Parts Sections (10)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
110.81310110Electric Washer (Kenmore 11081310110)
10 diagrams188 parts

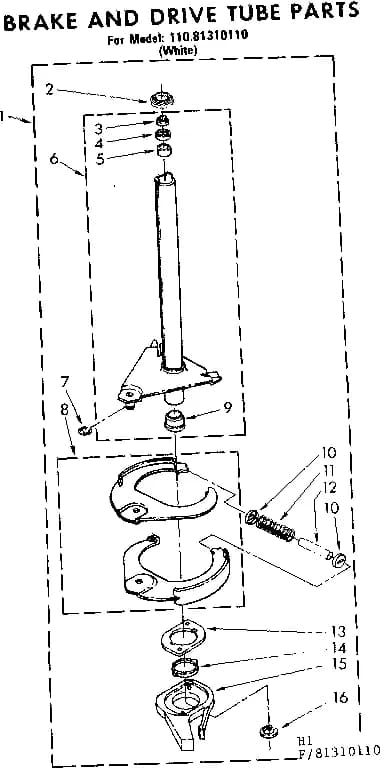

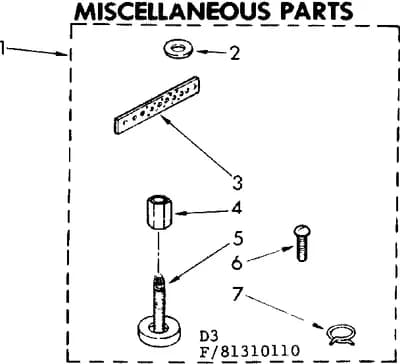

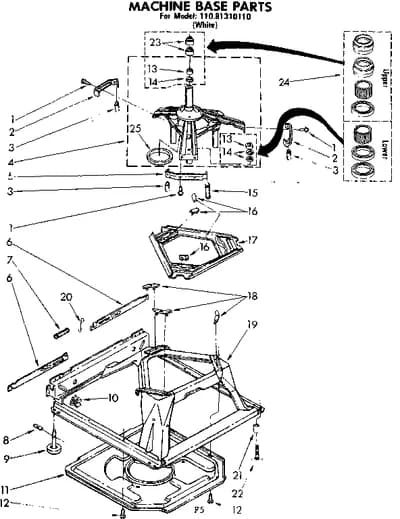

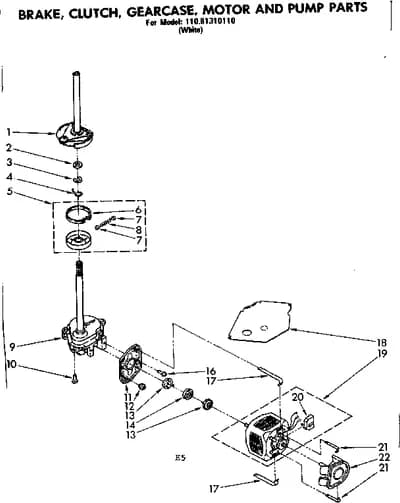

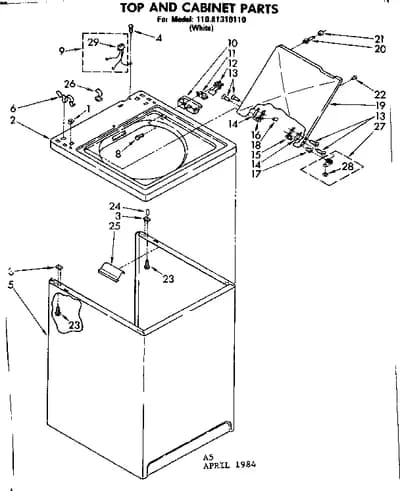

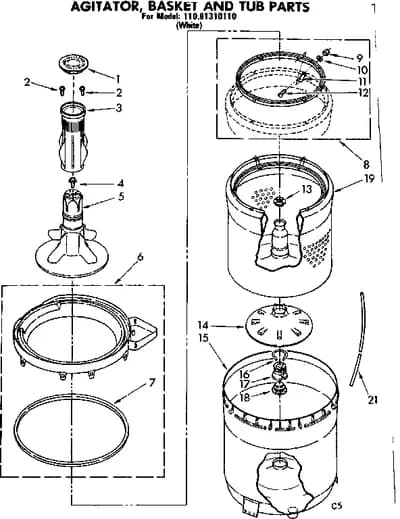

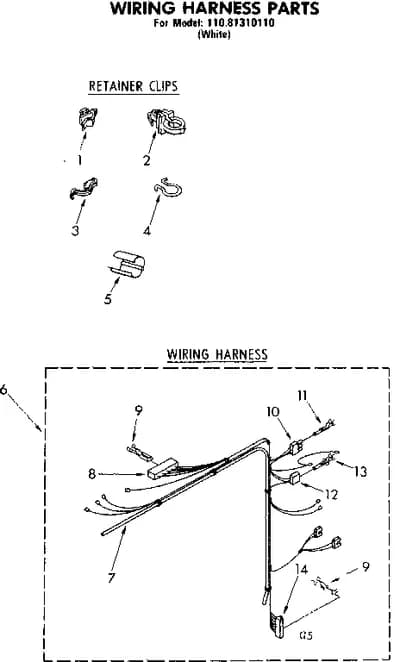

Parts Sections (10)
Diagram

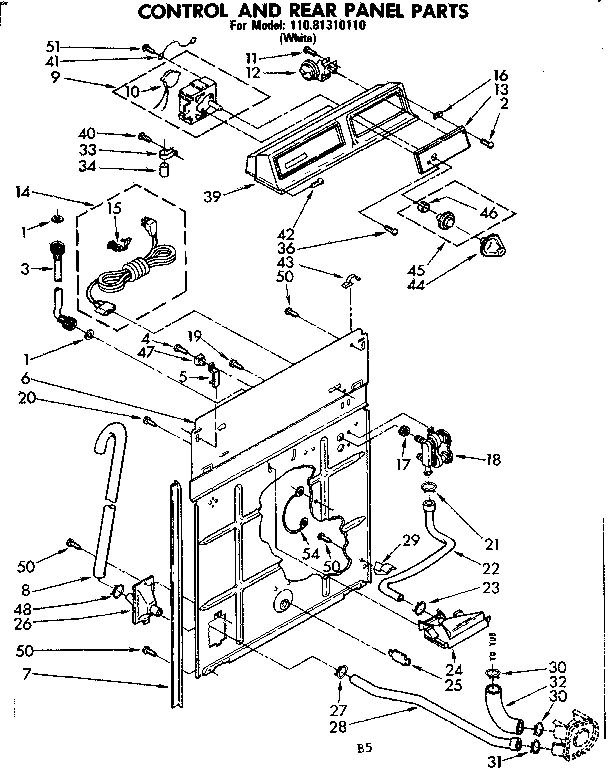

CONTROL AND REAR PANEL PARTS
Parts in CONTROL AND REAR PANEL PARTS
48 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | WP16123replaces 16123 Washing Machine Washer | $2.30 Part Advantage |
| 2 |  | WP355515replaces 355515 Washer Screw | $5.00 RepairClinic |
| 3 |  | WP89503replaces 660028 Hose | $4.59 Part Advantage |
| 4 |  | WP681414replaces 687128 Screw | $2.30 Part Advantage |
| 5 |  | Hinge | - |
| 6 | – | 63180 Panel | - |
| 7 |  | WP62747replaces 62747 Pad Panel | - |
| 8 |  | WP96743replaces 96743 Washer Drain Hose | $24.33 Part Advantage |
| 9 | | 63248NLA Timer 60hz | Discontinued |
| 10 | – | 63492 Motor | - |
| 11 |  | WPW10109200replaces 97787 Screw | $2.30 Part Advantage |
| 12 | – | 63418 Switch | - |
| 13 | – | 384391 Bezel | - |
| 14 |  | W10820044replaces 62734 Cord | $63.13 Parts Dr |
| 15 | | Relief | - |
| 16 | | 98084NLA Clip | Discontinued |
| 17 |  | WP96160replaces 96160 Filter Screen | $4.36 Part Advantage |
| 18 |  | 285805replaces 358992 Valve | $16.69 Part Advantage |
| 19 |  | WP3351614replaces 90864 Screw | $3.62 Parts Dr |
| 20 | | WP681414replaces 359262 Screw | $2.30 Part Advantage |
| 21 |  | WP596669replaces 272846 Hose Clamp | $2.30 Part Advantage |
| 22 |  | WP3357328replaces 62662 Hose | $7.24 Part Advantage |
| 23 | | WP596669replaces 371503 Clamp | $2.30 Part Advantage |
| 24 |  | WP3347034replaces 63029 Washer Break | $29.21 Part Advantage |
| 25 |  | WP8519200replaces 63290 Support | $12.39 RepairClinic |
| 26 |  | WPW10358149replaces 63206 Connector | $13.44 Part Advantage |
| 27 |  | WP356138replaces 272856 Hose Clamp | $3.38 Part Advantage |
| 28 |  | WP3348552replaces 63172 Hose | $49.50 PartSelect |
| 29 | – | 63162 Pin | - |
| 30 | | WP371502replaces 371502 Hose Clamp | - |
| 31 |  | WP285655replaces 272858 Hose Clamp | $3.38 Part Advantage |
| 32 |  | 285871replaces 62731 Hose | $7.56 Amazon |
| 33 |  | Clamp | - |
| 34 |  | WP8572717replaces 357021 Capacitor | $43.58 Part Advantage |
| 36 | – | 358950 Screw | - |
| 39 | – | 63308 Escutcheon | - |
| 40 | | WPW10109200replaces 63584 Screw | $2.30 Part Advantage |
| 41 |  | 3184020replaces 370144 Wire | $50.57 ApplianceParts Pro |
| 42 | – | 358225 Screw | - |
| 43 | | WP98997replaces 98997 Harness Clip | - |
| 44 | – | 355643 Knob | - |
| 45 | – | 63474 Pointer | - |
| 46 | | 384710NLA Clip | Discontinued |
| 47 | | WP689559replaces 689559 End Cap Clip | $8.95 ApplianceParts Pro |
| 48 | | WP356138replaces 356138 Hose Clamp | $3.38 Part Advantage |
| 50 |  | WP3390631replaces 62863 Screw | $2.30 Part Advantage |
| 51 |  | WP356418replaces 96435 Screw | $2.30 Part Advantage |
| 54 | – | 364089 Ground Wire | - |
