Model
Kenmore 110.81375750
System 21 Washer (Kenmore 11081375750)
Parts Sections (11)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
110.81375750System 21 Washer (Kenmore 11081375750)
11 diagrams261 parts
Parts Sections (11)
Diagram

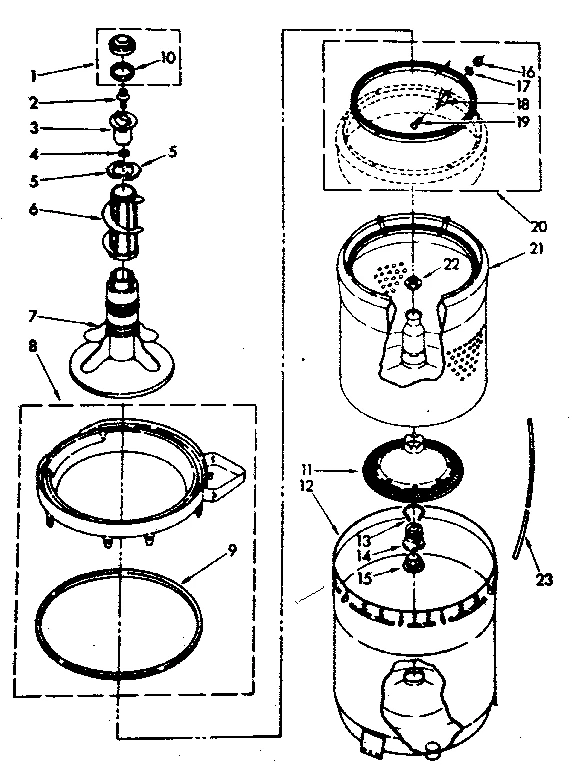

AGITATOR, BASKET AND TUB PARTS
Parts in AGITATOR, BASKET AND TUB PARTS
23 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | 358348NLA Washer Agitator Cap | Discontinued |
| 2 |  | WP358237replaces 358237 Washer Agitator Bolt | $2.22 Part Advantage |
| 3 | | 63262NLA Cam | Discontinued |
| 4 | | 357574NLA Appliance O-Ring | Discontinued |
| 5 |  | 358692NLA Washer Agitator Dog | Discontinued |
| 6 | | Agitator Auger | - |
| 7 | | Agitator | - |
| 8 | – | 63223 Ring | - |
| 9 |  | WP3359586replaces 63222 Gasket | $29.33 Part Advantage |
| 10 |  | WP358912replaces 358912 Seal-cap Ring | $5.00 RepairClinic |
| 11 |  | 285868replaces 62941 Filter | $13.34 Part Advantage |
| 12 |  | Washer Outer Tub | - |
| 13 | | 62942NLA Washer Filter Plate Lock Ring | Discontinued |
| 14 |  | WP389140replaces 357782 Block | $7.71 Part Advantage |
| 15 |  | W10814296replaces 62665 Gasket | $2.49 Part Advantage |
| 16 | – | 285348 Lock Nut | - |
| 17 | – | 680829 Washer | - |
| 18 | – | 63552 Clip | - |
| 19 |  | WP486754replaces 486754 Screw | $5.95 ApplianceParts Pro |
| 20 | – | 285350 Ring | - |
| 21 | – | 63780 Basket | - |
| 22 |  | WP21366replaces 21366 Washer Spanner Nut | $3.38 Part Advantage |
| 23 |  | WP353244replaces 62977 Hose | $31.19 Part Advantage |
