Model
Kenmore 110.81375760
System 21 Electric Washer (Kenmore 11081375760)
Parts Sections (11)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
110.81375760System 21 Electric Washer (Kenmore 11081375760)
11 diagrams262 parts
Parts Sections (11)
Diagram

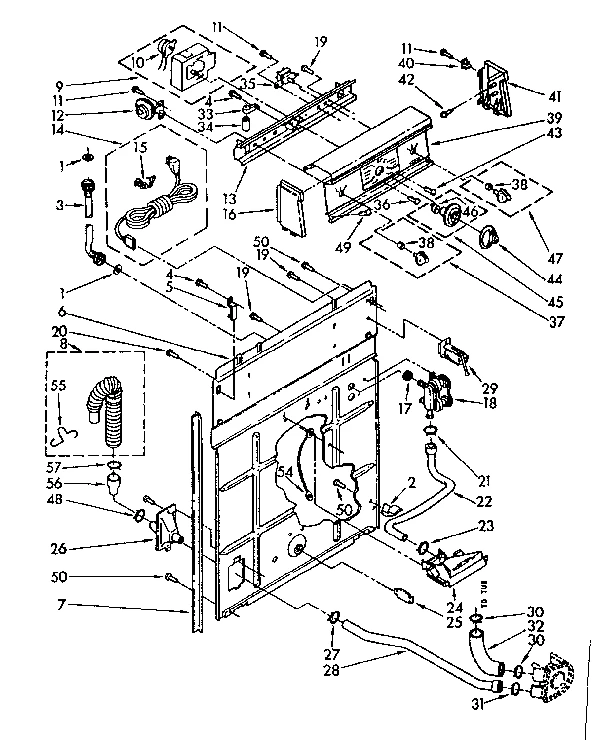

CONTROLS AND REAR PANEL PARTS
Parts in CONTROLS AND REAR PANEL PARTS
54 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | WP16123replaces 16123 Washing Machine Washer | $2.30 Part Advantage |
| 2 | – | 63162 Pin | - |
| 3 |  | WP89503replaces 660028 Hose | $4.59 Part Advantage |
| 4 |  | WP681414replaces 687128 Screw | $2.30 Part Advantage |
| 5 |  | Hinge | - |
| 6 | – | 63897 Panel | - |
| 7 |  | WP62747replaces 62747 Pad Panel | - |
| 8 |  | 285664replaces 387325 Hose | $16.76 Part Advantage |
| 8A |  | 285666replaces 388418 Hose | $31.25 Parts Dr |
| 9 |  | WP661549replaces 3347178 Timer | $237.56 ApplianceParts Pro |
| 10 | | 63491NLA Timer Motor | Discontinued |
| 11 |  | WP90767replaces 90767 Tap Screw | $2.30 Part Advantage |
| 12 | | Washer Water-Level Pressure Switch | Discontinued |
| 13 | – | 381474 Bracket | - |
| 14 |  | W10820044replaces 62734 Cord | $63.13 Parts Dr |
| 15 | | Relief | - |
| 16 | – | 372127 Cap (Chestnut) | - |
| 17 |  | WP96160replaces 96160 Filter Screen | $4.36 Part Advantage |
| 18 |  | 285805replaces 358992 Valve | $16.69 Part Advantage |
| 19 |  | WP3351614replaces 90864 Screw | $3.62 Parts Dr |
| 20 | | WP681414replaces 359262 Screw | $2.30 Part Advantage |
| 21 |  | WP596669replaces 272846 Hose Clamp | $2.30 Part Advantage |
| 22 |  | WP3357328replaces 62662 Hose | $7.24 Part Advantage |
| 23 | | WP596669replaces 371503 Clamp | $2.30 Part Advantage |
| 24 |  | WP3347034replaces 63029 Washer Break | $29.21 Part Advantage |
| 25 |  | WP8519200replaces 63290 Support | $12.39 RepairClinic |
| 26 |  | WPW10358149replaces 63206 Connector | $13.44 Part Advantage |
| 27 |  | WP356138replaces 272856 Hose Clamp | $3.38 Part Advantage |
| 28 |  | WP3348552replaces 63172 Hose | $49.50 PartSelect |
| 29 | | Relay | - |
| 30 | | WP371502replaces 371502 Hose Clamp | - |
| 31 |  | WP285655replaces 272858 Hose Clamp | $3.38 Part Advantage |
| 32 |  | 285871replaces 62731 Hose | $7.56 Amazon |
| 33 |  | Clamp | - |
| 34 |  | WP8572717replaces 357021 Capacitor | $43.58 Part Advantage |
| 35 | | Switch | - |
| 36 | – | 359504 Screw | - |
| 37 | | Washer Control Knob | - |
| 38 | – | 90015 Compression Ring | - |
| 39 | – | 386342 Panel | - |
| 40 | | WP689559replaces 689559 End Cap Clip | $8.95 ApplianceParts Pro |
| 41 | – | 372134 Cap (Chestnut) | - |
| 42 | – | 355326 Screw | - |
| 43 | – | 339607 Screw, Nibbed | - |
| 44 |  | Washer Timer Knob | - |
| 45 | | 62754NLA Pointer | Discontinued |
| 46 | – | 359710 Clip | - |
| 48 | | WP356138replaces 356138 Hose Clamp | $3.38 Part Advantage |
| 49 | – | 358225 Screw | - |
| 50 |  | WP3390631replaces 62863 Screw | $2.30 Part Advantage |
| 54 | – | 364089 Ground Wire | - |
| 55 | – | 357247 Retainer | - |
| 56 |  | WP384496replaces 384496 Washer Drain Hose Sleeve Connector | $35.55 Parts Dr |
| 57 |  | WP616099replaces 371504 Clamp | $8.55 PartSelect |
