Model
Kenmore 110.81661700
System 21 Washer (Kenmore 11081661700)
Parts Sections (11)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
110.81661700System 21 Washer (Kenmore 11081661700)
11 diagrams234 parts
Parts Sections (11)
Diagram

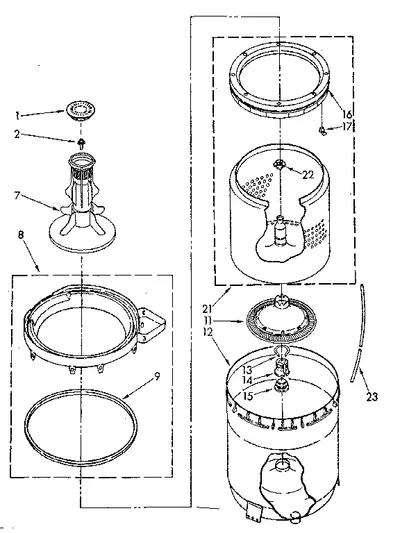

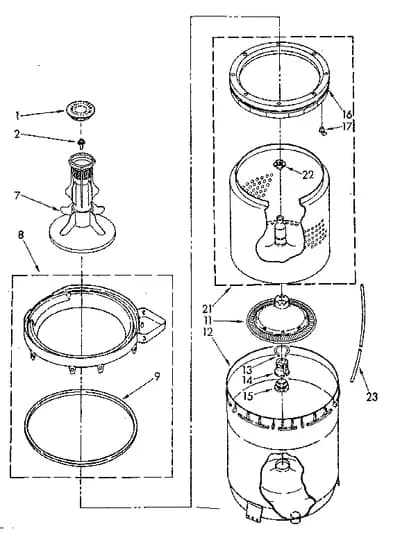

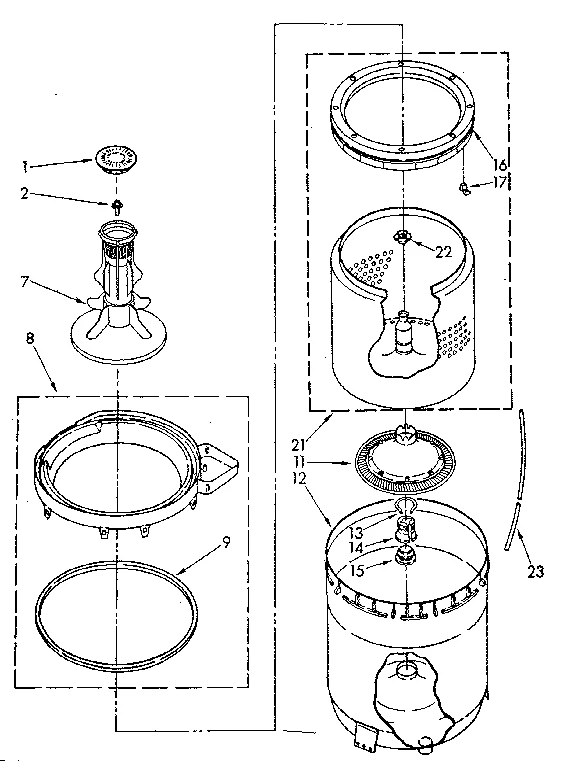

AGITATOR, BASKET AND TUB PARTS
Parts in AGITATOR, BASKET AND TUB PARTS
15 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | WP3352483replaces 62725 Cap | - |
| 2 |  | WP358237replaces 358237 Washer Agitator Bolt | $2.22 Part Advantage |
| 7 |  | WPW10131112replaces 63377 Washer Agitator | $55.24 Part Advantage |
| 8 | – | 387966 Tub Ring | - |
| 9 |  | WP3359586replaces 63222 Gasket | $29.33 Part Advantage |
| 11 |  | 285868replaces 62941 Filter | $13.34 Part Advantage |
| 12 |  | Washer Outer Tub | - |
| 13 |  | 62942NLA Washer Filter Plate Lock Ring | Discontinued |
| 14 |  | WP389140replaces 357782 Block | $7.71 Part Advantage |
| 15 |  | W10814296replaces 62665 Gasket | $2.49 Part Advantage |
| 16 | | Balance Ring | Discontinued |
| 17 |  | WP8519815replaces 387867 Balance Ring Clip | $2.30 Part Advantage |
| 21 | | Basket | Discontinued |
| 22 |  | WP21366replaces 21366 Washer Spanner Nut | $3.38 Part Advantage |
| 23 |  | WP353244replaces 3347776 Hose-wl | $31.19 Part Advantage |
