Model
Kenmore 110.81664600
System 21 Washer (Kenmore 11081664600)
Parts Sections (11)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
110.81664600System 21 Washer (Kenmore 11081664600)
11 diagrams240 parts
Parts Sections (11)
Diagram

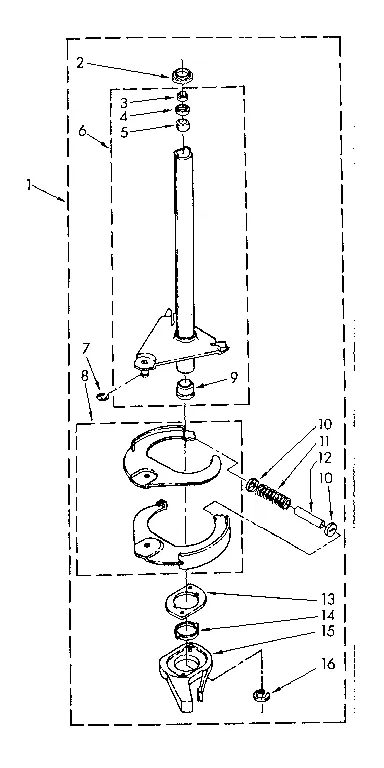

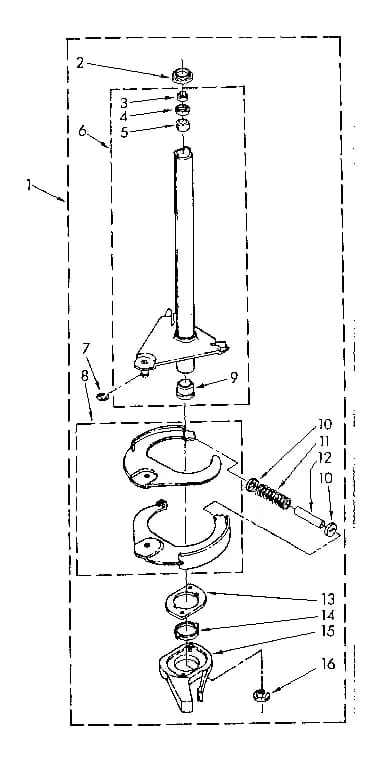

BRAKE AND DRIVE TUBE PARTS
Parts in BRAKE AND DRIVE TUBE PARTS
16 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | W10820043replaces 64033 Drive Basket | $80.05 Part Advantage |
| 2 |  | WP62658replaces 62658 Slinger | $8.16 RepairClinic |
| 3 |  | WP91939replaces 91939 Shaft Seal | $3.55 Part Advantage |
| 4 |  | WP356427replaces 356427 Shaft Seal | $3.55 Part Advantage |
| 5 |  | 356937NLA Spacer | Discontinued |
| 6 |  | WP64208replaces 64027 Drive Tube | $154.38 ApplianceParts Pro |
| 7 |  | W10083190replaces 64035 Ring | $6.14 Parts Dr |
| 8 |  | 285438replaces 64232 Brake Shoe | $76.18 Parts Dr |
| 9 |  | WP8546462replaces 62703 Bearing | $3.55 Part Advantage |
| 10 |  | 285658replaces 62648 Cap | $9.50 ApplianceParts Pro |
| 11 |  | WP62647replaces 62647 Spring | $3.21 Part Advantage |
| 12 | | 285658replaces 62909 Sleeve | $9.50 ApplianceParts Pro |
| 13 |  | WP8546461replaces 63023 Cam | $5.00 RepairClinic |
| 14 |  | WP63022replaces 63022 Sleeve | - |
| 15 |  | 285790replaces 63047 Driver | $27.09 Parts Dr |
| 16 |  | W11033823replaces 90368 Ring | $6.26 Parts Dr |
