Model
Kenmore 110.81864330
Washer (Kenmore 11081864330)
Parts Sections (10)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
110.81864330Washer (Kenmore 11081864330)
10 diagrams219 parts
Parts Sections (10)
Diagram

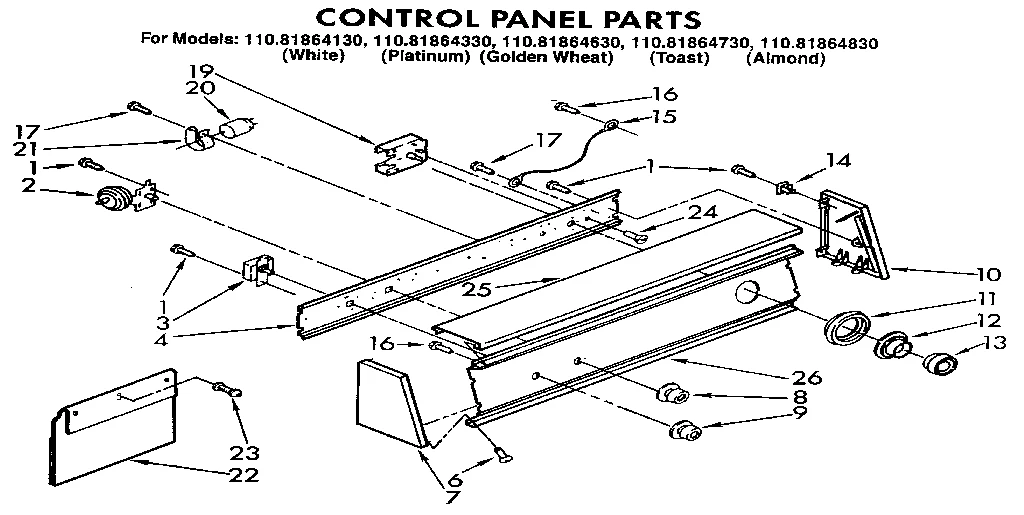

CONTROL PANEL
Parts in CONTROL PANEL
24 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | WP90767replaces 90767 Tap Screw | $2.30 Part Advantage |
| 2 |  | Washer Water-Level Pressure Switch | Discontinued |
| 3 | | WP3405157replaces 661538 Temperature Switch | - |
| 4 | – | 3394059 Bracket | - |
| 6 |  | WP388326replaces 388326 Washer Screw | $5.00 RepairClinic |
| 7 | – | 388203 End Cap | - |
| 8 | | Laundry Center Control Knob | - |
| 9 | | Washer Control Knob | - |
| 10 | – | 388209 End Cap | - |
| 11 |  | WP388257replaces 388257 Trim Ring | $5.95 ApplianceParts Pro |
| 12 | | Dial | Discontinued |
| 13 |  | WP3362624replaces 3353309 Timer Knob | $15.36 Part Advantage |
| 14 | | WP689559replaces 689559 End Cap Clip | $8.95 ApplianceParts Pro |
| 15 | – | 388853 Ground Wire | - |
| 16 |  | W11693756replaces 359625 Screw | $9.83 Parts Dr |
| 17 |  | WP3351614replaces 90864 Screw | $3.62 Parts Dr |
| 19 |  | WP661549replaces 661549 Washer Timer | $237.56 ApplianceParts Pro |
| 20 |  | WP8572717replaces 357021 Capacitor | $43.58 Part Advantage |
| 21 |  | Clamp | - |
| 22 | – | 3352312 Rack | - |
| 23 | – | 3389802 Fastener | - |
| 24 |  | WP356418replaces 96435 Screw | $2.30 Part Advantage |
| 25 | – | 3349269 Control Panel | - |
| 26 | – | 388265 Control Panel | - |
