ModelKenmore
110.81864800Washer (Kenmore 11081864800)
11 diagrams243 parts
Parts Sections (11)
Diagram

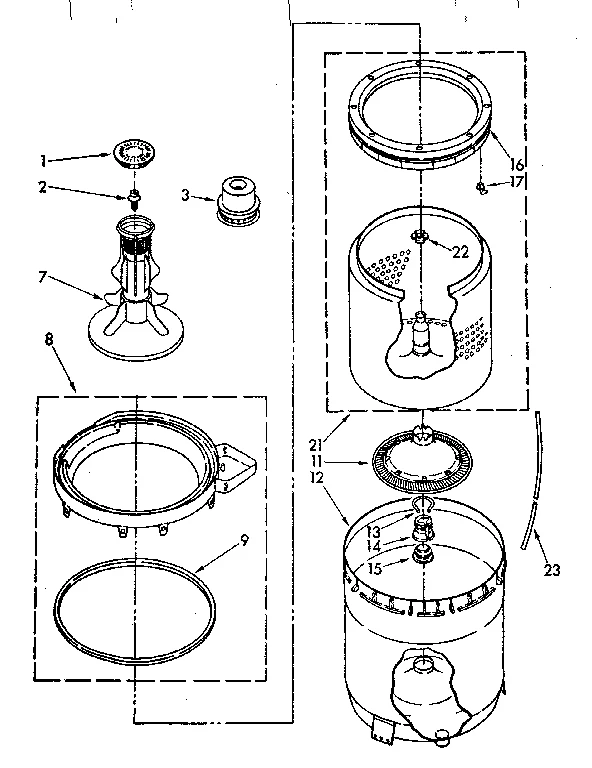

AGITATOR, BASKET AND TUB PARTS
Parts in AGITATOR, BASKET AND TUB PARTS
16 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | WP3352483replaces 62725 Cap | - |
| 2 |  | WP358237replaces 358237 Washer Agitator Bolt | $2.22 Part Advantage |
| 3 |  | WP63594replaces 63594 Washer Fabric Softener Dispenser Cup | $12.56 Part Advantage |
| 7 |  | WPW10131112replaces 63377 Washer Agitator | $55.24 Part Advantage |
| 8 | – | 387966 Tub Ring | - |
| 9 |  | WP3359586replaces 63222 Gasket | $29.33 Part Advantage |
| 11 |  | 285868replaces 62941 Filter | $13.34 Part Advantage |
| 12 |  | Washer Outer Tub | - |
| 13 |  | 62942NLA Washer Filter Plate Lock Ring | Discontinued |
| 14 |  | WP389140replaces 389140 Washer Drive Block | $7.71 Part Advantage |
| 15 |  | W10814296replaces 383727 Washer Tub Gasket | $2.49 Part Advantage |
| 16 | | Balance Ring | Discontinued |
| 17 |  | WP8519815replaces 387867 Balance Ring Clip | $2.30 Part Advantage |
| 21 | | 3956207NLA Inglis Washer Spin Basket | Discontinued |
| 22 |  | WP21366replaces 21366 Washer Spanner Nut | $3.38 Part Advantage |
| 23 |  | WP353244replaces 3347776 Hose-wl | $31.19 Part Advantage |
