Model
Kenmore 110.81878610
Washer (Kenmore 11081878610)
Parts Sections (10)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
110.81878610Washer (Kenmore 11081878610)
10 diagrams233 parts
Parts Sections (10)
Diagram

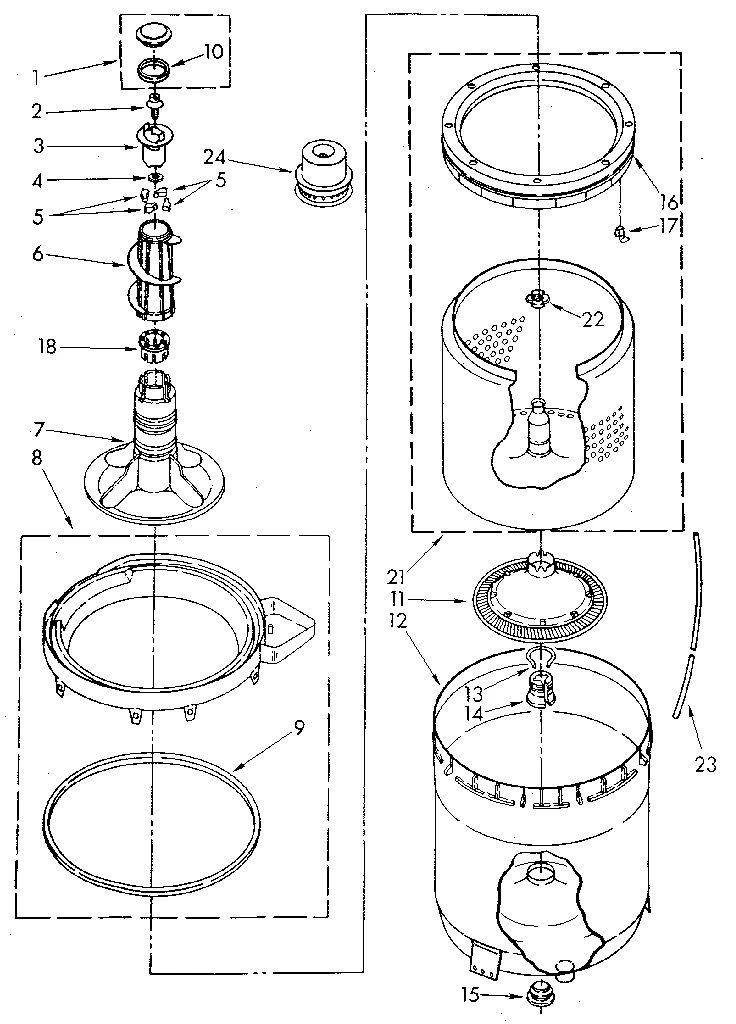

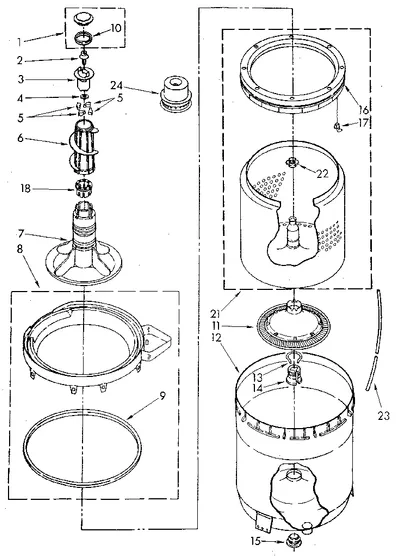

AGITATOR, BASKET AND TUB
Parts in AGITATOR, BASKET AND TUB
22 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | WP3362061replaces 63973 Cap | - |
| 2 |  | WP358237replaces 358237 Washer Agitator Bolt | $2.22 Part Advantage |
| 3 |  | 285748replaces 3351000 Agitator Cam | $15.94 Part Advantage |
| 4 |  | 357574NLA Appliance O-Ring | Discontinued |
| 5 |  | 80040replaces 387091 Agitator Dog | $1.29 Part Advantage |
| 6 |  | Washer Agitator Auger | - |
| 7 |  | WP3350832replaces 3350832 Washer Agitator | - |
| 8 | – | 387966 Tub Ring | - |
| 9 |  | WP3359586replaces 63222 Gasket | $29.33 Part Advantage |
| 10 |  | WP358912replaces 358912 Seal-cap Ring | $5.00 RepairClinic |
| 11 |  | 285868replaces 62941 Filter | $13.34 Part Advantage |
| 12 |  | Washer Outer Tub | - |
| 13 | | 62942NLA Washer Filter Plate Lock Ring | Discontinued |
| 14 |  | WP389140replaces 389140 Washer Drive Block | $7.71 Part Advantage |
| 15 |  | W10814296replaces 383727 Washer Tub Gasket | $2.49 Part Advantage |
| 16 |  | WP3956205replaces 387868 Balance Ring | - |
| 17 |  | WP8519815replaces 387867 Balance Ring Clip | $2.30 Part Advantage |
| 18 |  | 285587replaces 3350389 Washer | $1.39 Part Advantage |
| 21 | | Basket | Discontinued |
| 22 |  | WP21366replaces 21366 Washer Spanner Nut | $3.38 Part Advantage |
| 23 |  | WP353244replaces 3347776 Hose-wl | $31.19 Part Advantage |
| 24 |  | WP63594replaces 63594 Washer Fabric Softener Dispenser Cup | $12.56 Part Advantage |
