Model
Kenmore 110.82271420
Electric Washer (Kenmore 11082271420)
Parts Sections (11)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
110.82271420Electric Washer (Kenmore 11082271420)
11 diagrams320 parts
Parts Sections (11)
Diagram

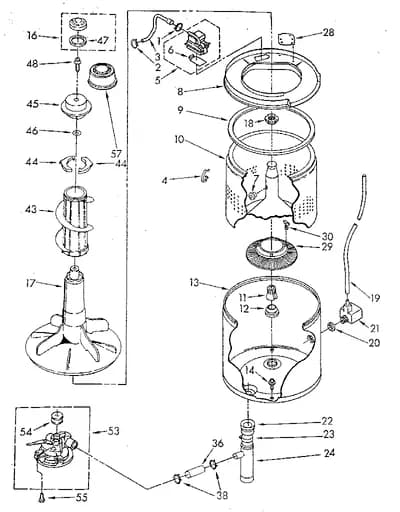

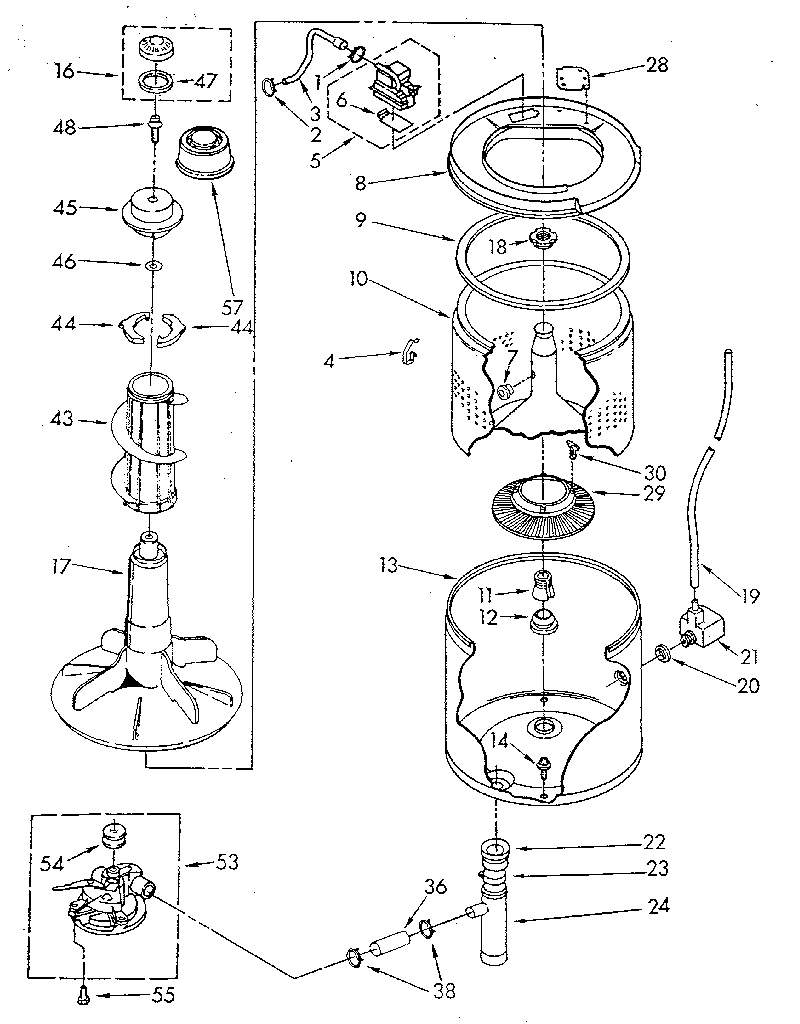

TUB AND BASKET (NON-SUDS ONLY)
Parts in TUB AND BASKET (NON-SUDS ONLY)
39 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | WP596669replaces 353366 Clamp | $2.30 Part Advantage |
| 2 | | WP596669replaces 353367 Hose Clamp | $2.30 Part Advantage |
| 3 |  | 356349NLA Hose | Discontinued |
| 4 |  | Washer Tub Ring Clip | - |
| 5 |  | 366072NLA Inlet | Discontinued |
| 6 | – | 355584 Flapper | - |
| 7 | | 21265NLA Stopper | Discontinued |
| 8 | – | 381971 Ring | - |
| 9 | | Washer Tub Ring Seal | - |
| 10 | – | 384024 Basket | - |
| 11 |  | WP389140replaces 357782 Block | $7.71 Part Advantage |
| 12 |  | W10814296replaces 96690 Gasket | $2.49 Part Advantage |
| 13 | – | 384074 Tub | - |
| 14 | – | 370571 Screw | - |
| 16 | | 358348NLA Washer Agitator Cap | Discontinued |
| 17 | – | 383950 Agitator | - |
| 18 |  | WP21366replaces 21366 Washer Spanner Nut | $3.38 Part Advantage |
| 19 |  | WP353244replaces 379878 Hose | $31.19 Part Advantage |
| 20 | | 351830NLA Washer Seal | Discontinued |
| 21 | – | 360804 Air Dome | - |
| 22 |  | 93553NLA Washer Outer Tub Grommet | Discontinued |
| 23 | – | 9421321 Clamp | - |
| 24 | | 84091NLA Manifold | Discontinued |
| 28 | | Washer Snubber Plate | - |
| 29 | – | 383719 Filter | - |
| 30 | – | 383718 Clip | - |
| 36 | | 92231NLA Hose | Discontinued |
| 38 |  | WP285655replaces 272858 Hose Clamp | $3.38 Part Advantage |
| 43 | | Agitator Auger | - |
| 43A | – | 359087 Auger | - |
| 44 |  | 358692NLA Washer Agitator Dog | Discontinued |
| 45 | | 358691NLA Cam | Discontinued |
| 46 | | 357574NLA Appliance O-Ring | Discontinued |
| 47 |  | WP358912replaces 358912 Seal-cap Ring | $5.00 RepairClinic |
| 48 |  | WP358237replaces 358237 Washer Agitator Bolt | $2.22 Part Advantage |
| 53 | – | 383957 Pump | - |
| 54 | | 359630NLA Pulley | Discontinued |
| 55 | | 386011replaces 96867 Screw | $32.95 ApplianceParts Pro |
| 57 |  | Washer Fabric Softener Dispenser | - |
