Kenmore 110.82271610
Electric Washer (Kenmore 11082271610)
Parts Sections (10)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
110.82271610Electric Washer (Kenmore 11082271610)
10 diagrams280 parts
Parts Sections (10)

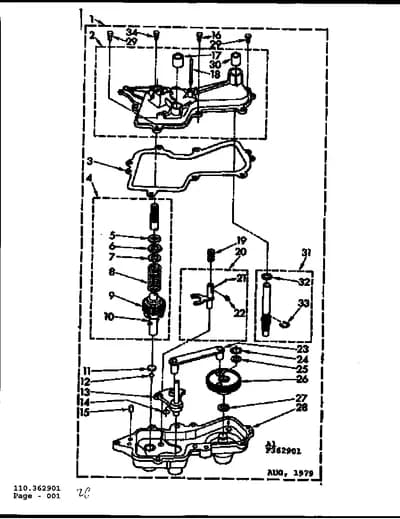

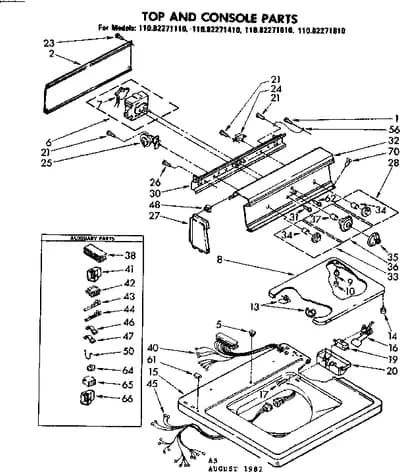

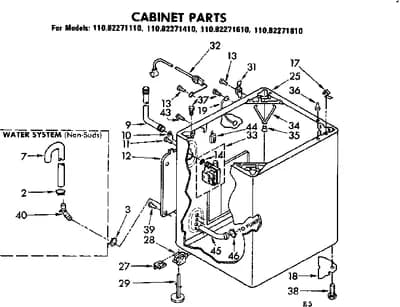

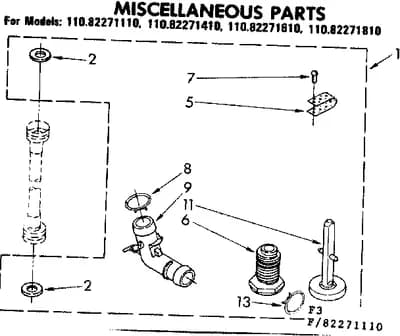

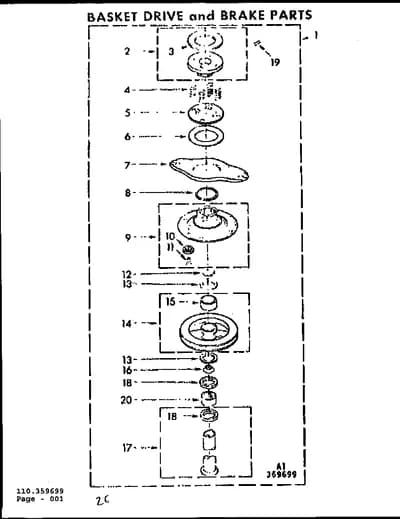

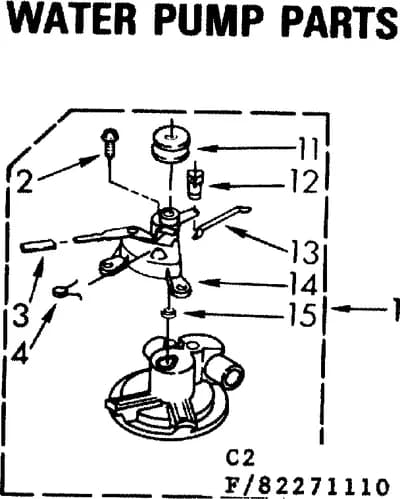

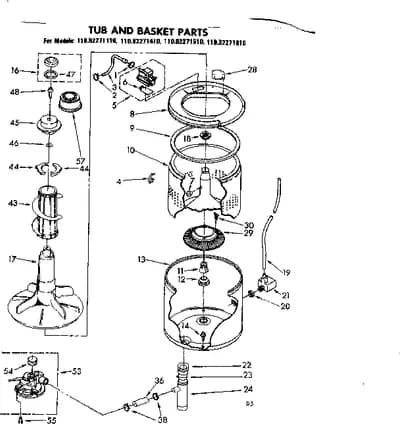

Diagram

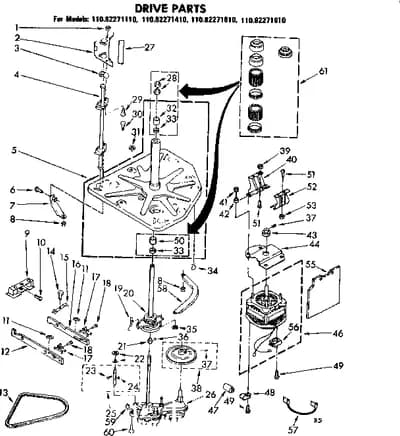

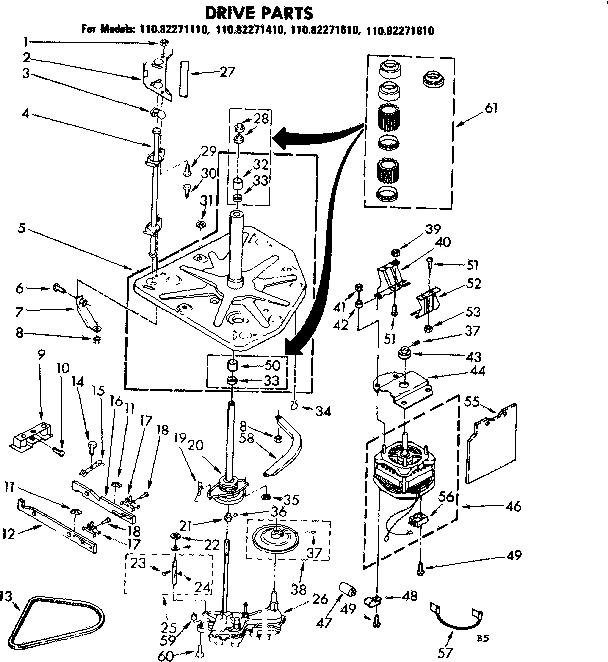

DRIVE PARTS
Parts in DRIVE PARTS
64 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | Nut | - |
| 2 | – | 352143 Cover | - |
| 3 | | 91073NLA Ball | Discontinued |
| 4 | – | 359678 Rod | - |
| 5 | – | 359721 Base Plate | - |
| 6 |  | WP3400516replaces 98062 Screw | $2.30 Part Advantage |
| 7 | – | 353301 Brace | - |
| 8 | – | 96101 Nut | - |
| 9 | – | 365998 Wig Way Ay | - |
| 10 | | 16135NLA Tap End Scr | Discontinued |
| 11 |  | 95462NLA Cam Bar Guide | Discontinued |
| 12 | – | 354838 Cam Bar | - |
| 13 |  | WP95405replaces 95405 Washer Drive Belt | $10.45 Part Advantage |
| 14 | – | 98001 Bolt | - |
| 15 |  | Washer Brake Pad Retainer | - |
| 16 |  | 18642NLA Bar Cam | Discontinued |
| 17 | – | 84866 Plunger | - |
| 18 | – | 354959 Rivet | - |
| 19 |  | 17261NLA Spring | Discontinued |
| 20 | – | 359699 Drive Basket | - |
| 21 |  | 350920replaces 358586 Bearing | $4.95 ApplianceParts Pro |
| 22 |  | WP120393replaces 90315 Washer | $1.59 RepairClinic |
| 23 | | Pin | - |
| 24 | | 92119NLA Roller | Discontinued |
| 25 | – | 359460 Shaft | - |
| 26 | | 362901NLA Gear Case | Discontinued |
| 27 | – | 352434 Pad | - |
| 28 |  | WP8577376replaces 356934 Seal, Center Post | $3.55 Part Advantage |
| 29 | – | 126358 Bolt | - |
| 29A | – | 126211 Carriage Bolt | - |
| 29B | – | 353770 Bolt | - |
| 30 | – | 98048 Screw | - |
| 31 | | 17235NLA Gasket | Discontinued |
| 32 |  | WP8546455replaces 54207 Bearing | $8.66 Part Advantage |
| 33 |  | W11095997replaces 357409 Seal | $9.85 Part Advantage |
| 34 |  | Washer Wire Harness Retainer | $25.76 ApplianceParts Pro |
| 35 |  | 356444NLA Washer Basket Drive Spring Retainer | Discontinued |
| 36 | | 350920replaces 358585 Ball | $4.95 ApplianceParts Pro |
| 37 |  | Screw | - |
| 38 |  | 360840NLA Washer Transmission Pulley | Discontinued |
| 39 |  | WP358160replaces 96016 Lock Nut | $1.68 RepairClinic |
| 40 | – | 85286 Bracket | - |
| 41 | | 98023NLA Nut | Discontinued |
| 42 | | 19138NLA Grommet, Motor Bracket | Discontinued |
| 43 | | 92216NLA Motor Pulley | Discontinued |
| 44 | – | 356217 Shield | - |
| 46 | – | 357822 Motor | - |
| 46A | – | 370653 Drive Motor | - |
| 47 |  | WP8572717replaces 357021 Capacitor | $43.58 Part Advantage |
| 48 |  | Clamp | - |
| 49 |  | WP3390631replaces 9420601 Screw | $2.30 Part Advantage |
| 50 | – | 354195 Bearing | - |
| 51 | – | 98537 Bolt | - |
| 52 | – | 93549 Bracket | - |
| 53 | – | 95721 Nut | - |
| 55 | – | 359719 Shield | - |
| 56 | | 362738NLA Motor Switch | Discontinued |
| 56A | – | 359642 Switch | - |
| 57 | – | 370950 Wire | - |
| 58 | – | 351500 Brace | - |
| 58A | | Brace | - |
| 59 | – | 16062 Spacer | - |
| 60 | – | 90877 Hex Screw | - |
| 61 |  | 285134NLA Washer Center Post Bearing Kit | Discontinued |
