Model
Kenmore 110.82403140
Washer (Kenmore 11082403140)
Parts Sections (11)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
110.82403140Washer (Kenmore 11082403140)
11 diagrams200 parts
Parts Sections (11)
Diagram

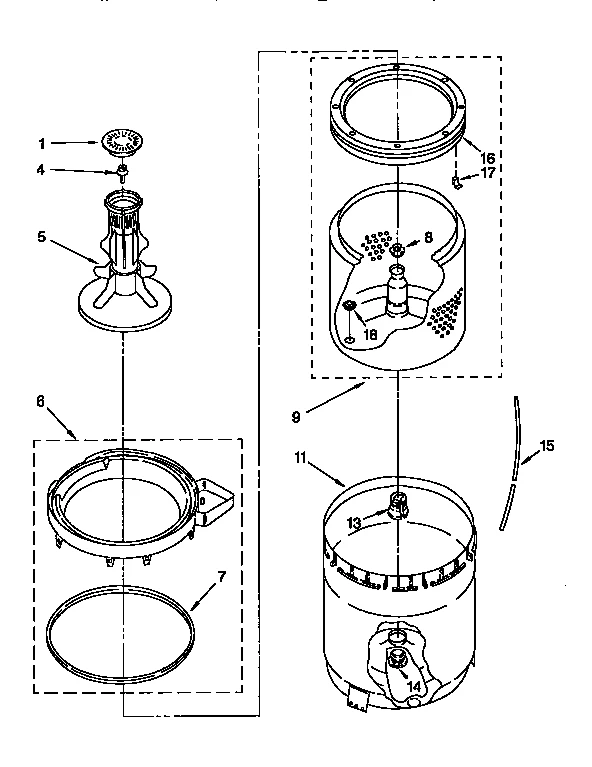

AGITATOR, BASKET AND TUB
Parts in AGITATOR, BASKET AND TUB
14 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | WP3352483replaces 3352483 Washer Agitator Cap | - |
| 4 |  | WP358237replaces 358237 Washer Agitator Bolt | $2.22 Part Advantage |
| 5 |  | WPW10131112replaces 63378 Agitator | $55.24 Part Advantage |
| 6 |  | 3360611NLA Washer Tub Ring | Discontinued |
| 7 |  | WP3359586replaces 3359586 Washer Tub Seal | $29.33 Part Advantage |
| 8 |  | WP21366replaces 21366 Washer Spanner Nut | $3.38 Part Advantage |
| 9 | | Basket | Discontinued |
| 11 |  | Washer Outer Tub | - |
| 13 |  | WP389140replaces 389140 Washer Drive Block | $7.71 Part Advantage |
| 14 |  | W10814296replaces 383727 Washer Tub Gasket | $2.49 Part Advantage |
| 15 |  | WP353244replaces 386757 Hose-wl | $31.19 Part Advantage |
| 16 |  | WP3956205replaces 387868 Balance Ring | - |
| 17 |  | WP8519815replaces 387867 Balance Ring Clip | $2.30 Part Advantage |
| 18 | – | 3352284 Plug | - |
