Model
Kenmore 110.82671120
Washer (Kenmore 11082671120)
Parts Sections (11)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
110.82671120Washer (Kenmore 11082671120)
11 diagrams250 parts
Parts Sections (11)
Diagram

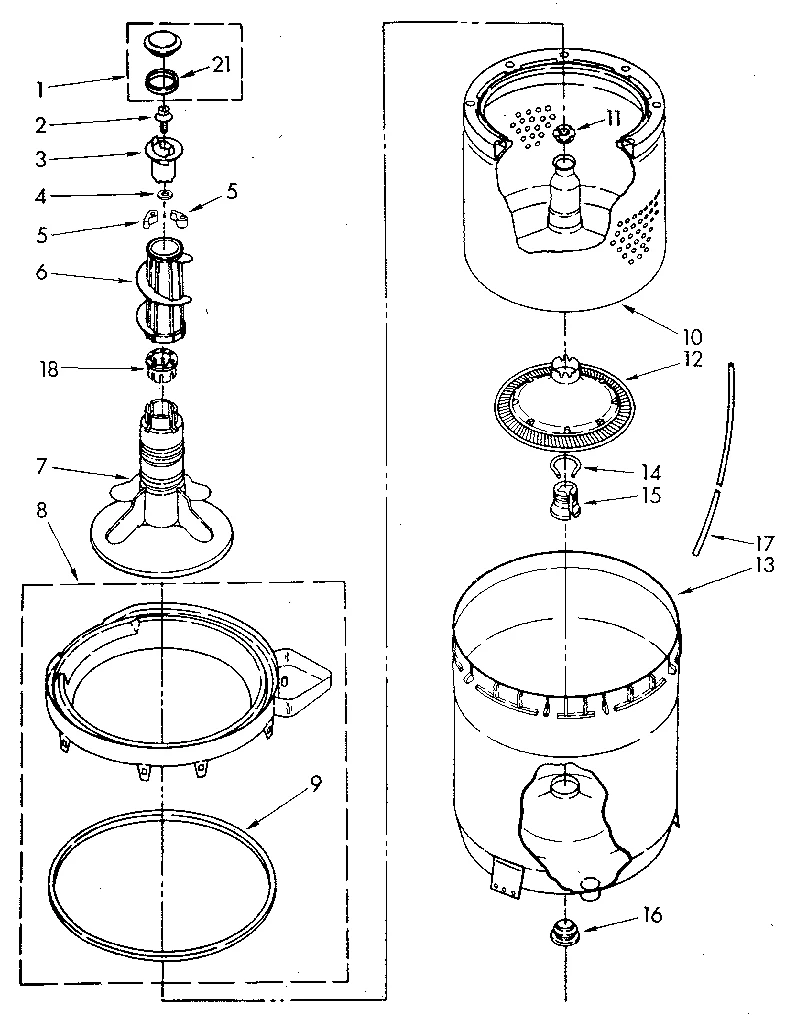

AGITATOR, BASKET AND TUB PARTS
Parts in AGITATOR, BASKET AND TUB PARTS
19 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | WP3362061replaces 63973 Cap | - |
| 2 |  | WP358237replaces 358237 Washer Agitator Bolt | $2.22 Part Advantage |
| 3 |  | 285748replaces 3347085 Cam | $15.94 Part Advantage |
| 4 |  | 357574NLA Appliance O-Ring | Discontinued |
| 5 |  | 80040replaces 387091 Agitator Dog | $1.29 Part Advantage |
| 6 |  | WP3360824replaces 389141 Agitator Auger | $75.76 Part Advantage |
| 7 |  | WP389386replaces 389386 Washer Agitator | $93.39 PartSelect |
| 8 |  | W10880720replaces 63851 Ring | $78.05 Part Advantage |
| 9 |  | WP3976308replaces 63852 Gasket | $8.62 Part Advantage |
| 10 |  | W10389328replaces 64217 Basket | $207.63 PartSelect |
| 11 |  | WP21366replaces 21366 Washer Spanner Nut | $3.38 Part Advantage |
| 12 |  | 285868replaces 62941 Filter | $13.34 Part Advantage |
| 13 |  | Washer Outer Tub | $144.52 PartSelect |
| 14 | | 62942NLA Washer Filter Plate Lock Ring | Discontinued |
| 15 |  | WP389140replaces 389140 Washer Drive Block | $7.71 Part Advantage |
| 16 |  | W10814296replaces 383727 Washer Tub Gasket | $2.49 Part Advantage |
| 17 |  | WP353244replaces 3347777 Hose-wl | $31.19 Part Advantage |
| 18 |  | 285587replaces 3350389 Washer | $1.39 Part Advantage |
| 21 |  | WP358912replaces 358912 Seal-cap Ring | $5.00 RepairClinic |
