Model
Kenmore 110.83271820
Electric Washer (Kenmore 11083271820)
Parts Sections (11)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
110.83271820Electric Washer (Kenmore 11083271820)
11 diagrams320 parts
Parts Sections (11)
Diagram

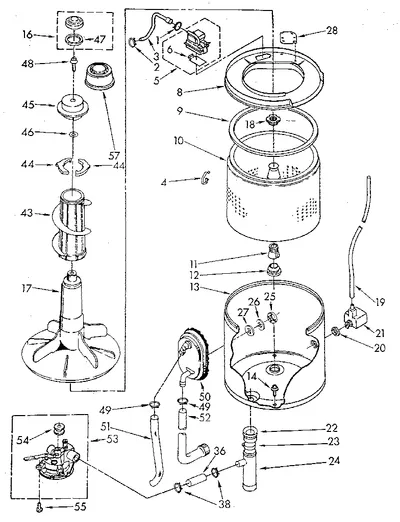

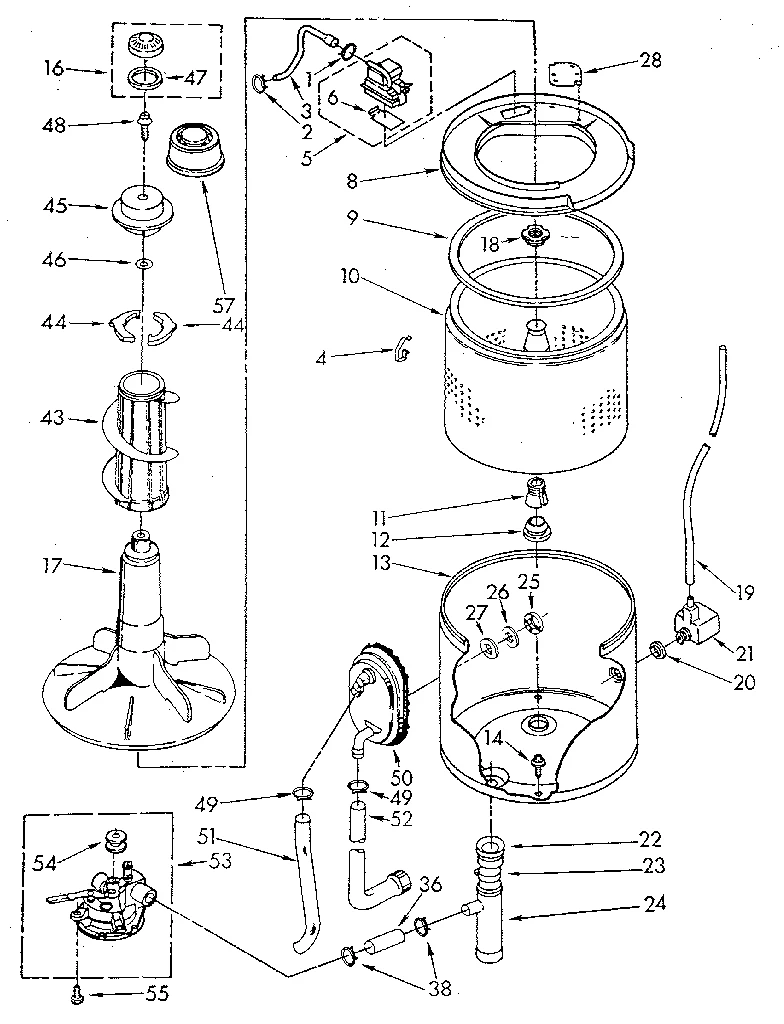

TUB AND BASKET (SUDS ONLY)
Parts in TUB AND BASKET (SUDS ONLY)
42 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | WP596669replaces 353366 Clamp | $2.30 Part Advantage |
| 2 | | WP596669replaces 353367 Hose Clamp | $2.30 Part Advantage |
| 3 |  | 356349NLA Hose | Discontinued |
| 4 |  | Washer Tub Ring Clip | - |
| 5 |  | 366072NLA Inlet | Discontinued |
| 6 | – | 355584 Flapper | - |
| 8 | – | 381971 Ring | - |
| 9 | | Washer Tub Ring Seal | - |
| 10 | – | 384024 Basket | - |
| 11 |  | WP389140replaces 357782 Block | $7.71 Part Advantage |
| 12 |  | W10814296replaces 96690 Gasket | $2.49 Part Advantage |
| 13 | – | 359667 Tub | - |
| 14 | – | 370571 Screw | - |
| 16 | | 358348NLA Washer Agitator Cap | Discontinued |
| 17 | – | 383950 Agitator | - |
| 18 |  | WP21366replaces 21366 Washer Spanner Nut | $3.38 Part Advantage |
| 19 |  | WP353244replaces 353404 Hose | $31.19 Part Advantage |
| 20 | | 351830NLA Washer Seal | Discontinued |
| 21 | – | 360804 Air Dome | - |

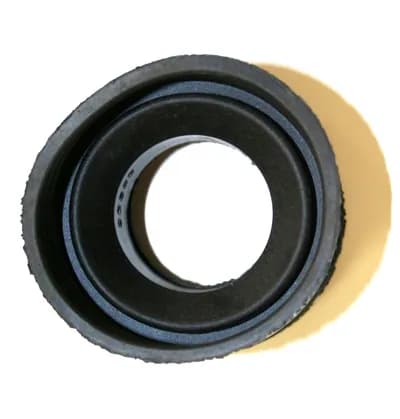

| 22 |  | 93553NLA Washer Outer Tub Grommet | Discontinued |
| 23 | – | 9421321 Clamp | - |
| 24 | | 84091NLA Manifold | Discontinued |
| 25 | | Nut | - |
| 26 | | 92232NLA Washer | Discontinued |
| 27 | | Washer | - |
| 28 | | Washer Snubber Plate | - |
| 36 | | 92231NLA Hose | Discontinued |
| 38 |  | WP285655replaces 272858 Hose Clamp | $3.38 Part Advantage |
| 43 | – | 660761 Auger | - |
| 44 |  | 358692NLA Washer Agitator Dog | Discontinued |
| 45 | | 358691NLA Cam | Discontinued |
| 46 | | 357574NLA Appliance O-Ring | Discontinued |
| 47 |  | WP358912replaces 358912 Seal-cap Ring | $5.00 RepairClinic |
| 48 |  | WP358237replaces 358237 Washer Agitator Bolt | $2.22 Part Advantage |
| 49 | – | 353096 Clamp | - |
| 50 | | 368772NLA Washer Lint Filter | Discontinued |
| 51 | | 359798NLA Hose | Discontinued |
| 52 | | Hose | - |
| 53 |  | 350365replaces 358036 Pump | $58.59 Parts Dr |
| 54 | | 359630NLA Pulley | Discontinued |
| 55 | | 386011replaces 96867 Screw | $32.95 ApplianceParts Pro |

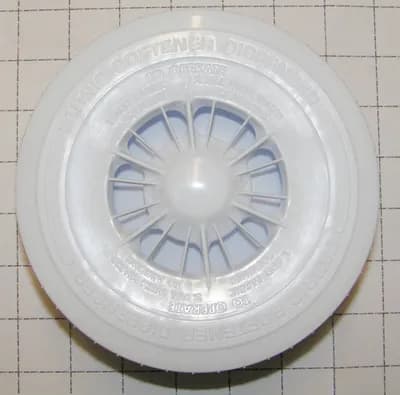

| 57 |  | Washer Fabric Softener Dispenser | - |
