Kenmore 110.84090610
Washer (Kenmore 11084090610)
Parts Sections (10)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
110.84090610Washer (Kenmore 11084090610)
10 diagrams274 parts

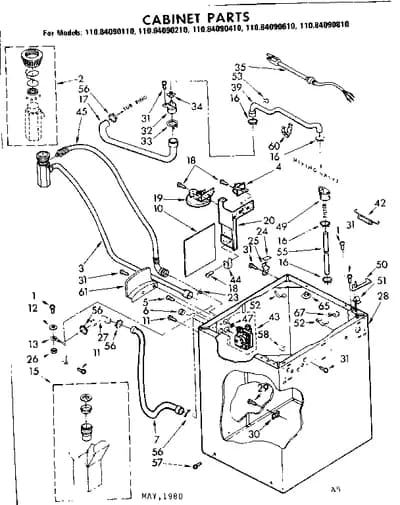

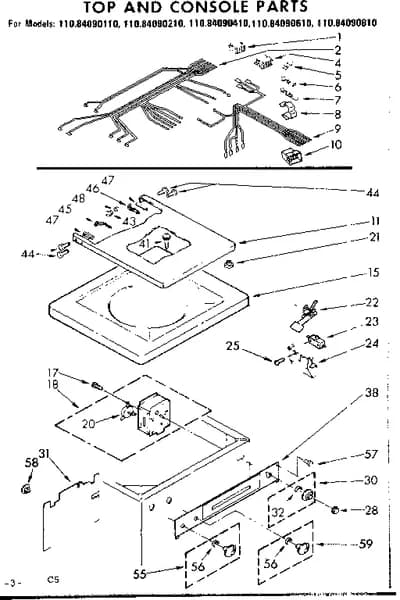

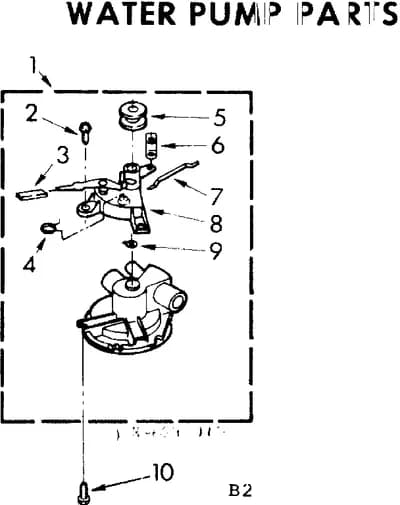

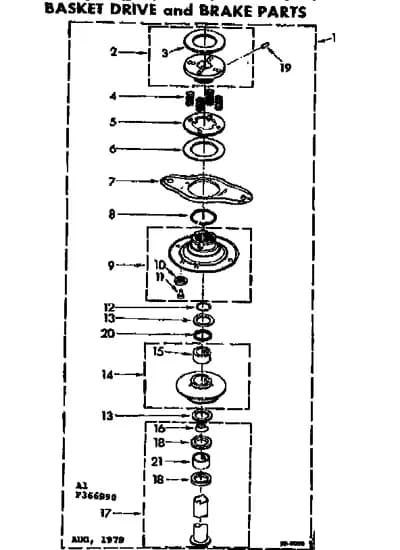

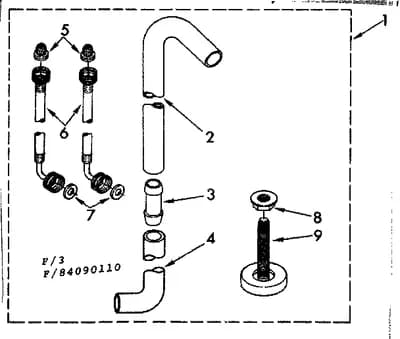

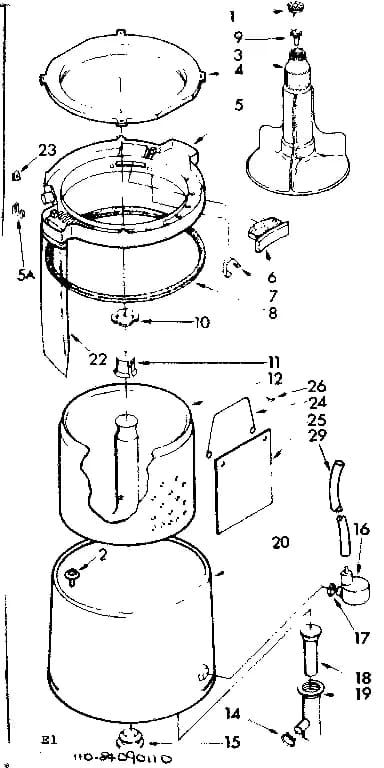

Parts Sections (10)
Diagram

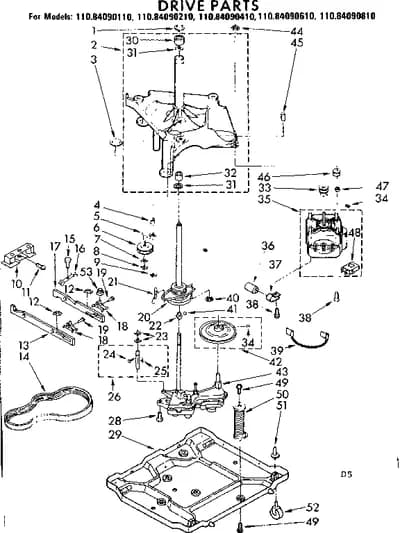

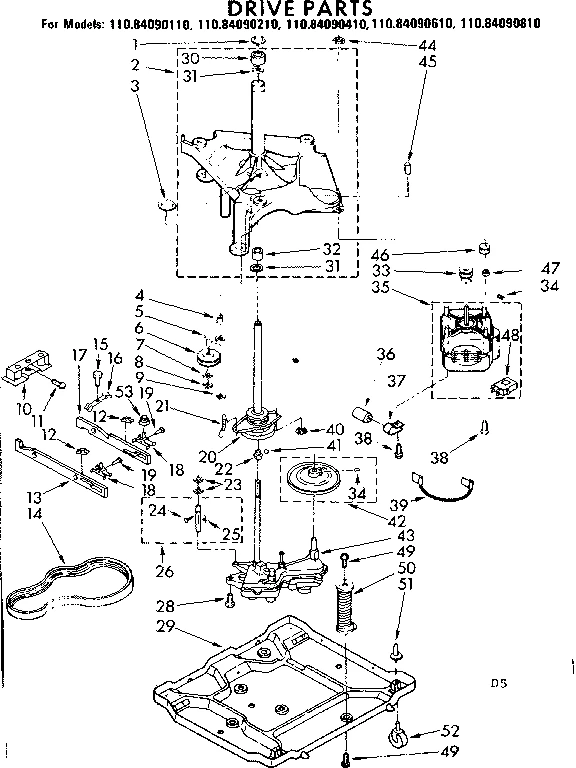

DRIVE PARTS
Parts in DRIVE PARTS
57 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | WP8577376replaces 91938 Shaft Seal | $3.55 Part Advantage |
| 2 | – | 370828 Base Plate | - |
| 3 |  | 17235NLA Gasket | Discontinued |
| 4 | | Spring | - |
| 5 | | 366856NLA Shaft | Discontinued |
| 6 | | Pulley | - |
| 7 | – | 356133 Washer | - |
| 8 | – | 356087 Ring | - |
| 9 | – | 356088 Ring | - |
| 10 | – | 365998 Wig Way Ay | - |
| 11 | | 16135NLA Tap End Scr | Discontinued |
| 12 |  | 95462NLA Cam Bar Guide | Discontinued |
| 13 | – | 354838 Cam Bar | - |

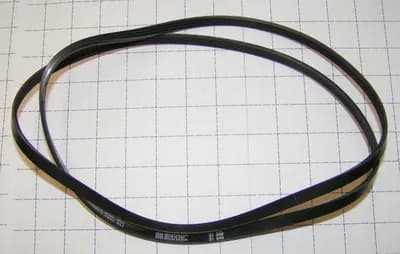

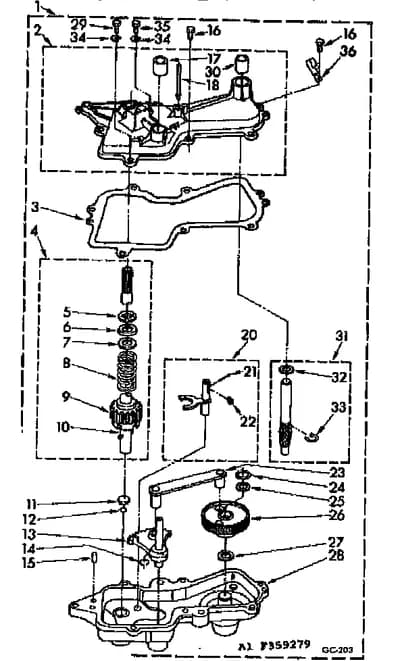

| 14 |  | Washer Drive Belt | - |
| 15 | – | 98001 Bolt | - |
| 16 |  | Washer Brake Pad Retainer | - |
| 17 |  | 18642NLA Bar Cam | Discontinued |
| 18 | – | 84866 Plunger | - |
| 19 | – | 354959 Rivet | - |
| 20 | – | 366990 Basket | - |
| 21 |  | 17261NLA Spring | Discontinued |
| 22 |  | 350920replaces 358586 Bearing | $4.95 ApplianceParts Pro |
| 23 |  | WP120393replaces 90315 Washer | $1.59 RepairClinic |
| 24 | | Pin | - |
| 25 | | 92119NLA Roller | Discontinued |
| 26 | – | 359460 Shaft | - |
| 28 | – | 356154 Screw | - |
| 29 | – | 359321 Base Plate | - |
| 30 | – | 356993 Bearing | - |
| 31 |  | 54209NLA Seal | Discontinued |
| 32 | – | 354195 Bearing | - |
| 33 | – | 356939 Pulley | - |
| 34 |  | Screw | - |
| 35 | – | 357287 Motor | - |
| 36 |  | WP8572717replaces 357021 Capacitor | $43.58 Part Advantage |
| 37 |  | Clamp | - |
| 38 |  | WP3390631replaces 9420601 Screw | $2.30 Part Advantage |
| 39 | – | 370950 Wire | - |
| 40 |  | 356444NLA Washer Basket Drive Spring Retainer | Discontinued |
| 41 | | 350920replaces 358585 Ball | $4.95 ApplianceParts Pro |
| 42 | – | 356155 Pulley | - |
| 43 | – | 359279 Gear Case | - |
| 44 | | 98023NLA Nut | Discontinued |
| 45 | – | 356638 Sleeve | - |
| 46 | – | 356322 Grommet | - |
| 47 | | 19119NLA Bumper, Lid Hinge | Discontinued |
| 48 | – | N/P (338471) (ALT.) | - |
| 48A | – | 362086 Switch | - |
| 48B | | 362738NLA Motor Switch | Discontinued |
| 49 | | 425583NLA Screw | Discontinued |
| 50A | | 367011NLA Sprg-#1-rear | Discontinued |
| 50B | | Sprg-#3-frnt | - |
| 50C | | Sprg-#2-left | - |
| 51 | – | 717588 Socket | - |

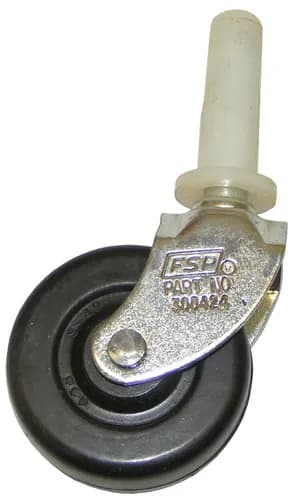

| 52A |  | WP3370639replaces 357042 Caster | $38.90 RepairClinic |
| 52B | | WP3370639replaces 718534 Caster | $38.90 RepairClinic |
| 53 | – | 358354 Spring | - |
