Model
Kenmore 110.84090820
Washer (Kenmore 11084090820)
Parts Sections (10)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
110.84090820Washer (Kenmore 11084090820)
10 diagrams273 parts
Parts Sections (10)
Diagram

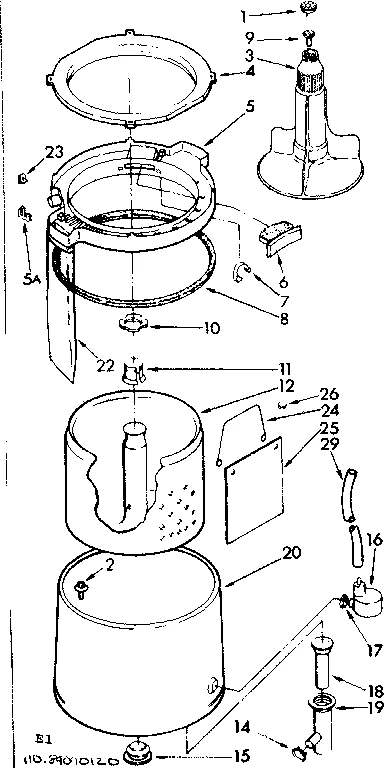

TUB AND BASKET PARTS
Parts in TUB AND BASKET PARTS
26 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | Cap | - |
| 2 | – | 370571 Screw | - |
| 3 | – | 369629 Agitator | - |
| 4 | | 356153NLA Shield | Discontinued |
| 5 | | 367315NLA Tub Ring | Discontinued |
| 5A | | 350987NLA Clip | Discontinued |
| 6 | | Filtr-lint | - |
| 7 | | Tub Ring Clip | - |
| 8 | | Gasket | - |
| 9 |  | WP358237replaces 358237 Washer Agitator Bolt | $2.22 Part Advantage |
| 10 | | Nut | - |
| 11 |  | Block | - |
| 12 | – | 359174 Basket | - |
| 14 |  | WP285655replaces 272858 Hose Clamp | $3.38 Part Advantage |
| 15 |  | W10814296replaces 96690 Gasket | $2.49 Part Advantage |
| 16 | – | 360804 Air Dome | - |
| 17 | | 351830NLA Washer Seal | Discontinued |
| 18 | | Funnel | - |
| 19 | – | 357160 Manifold | - |
| 20 | – | 367162 Tub | - |
| 22 |  | Washer Drain-Off Tube | $59.49 RepairClinic |
| 23 | | 8577411replaces 352155 Retaining Clip | - |
| 24 | – | 357622 Support | - |
| 25 | – | 357623 Shield | - |
| 26 | – | 356288 Clip | - |
| 29 |  | WP353244replaces 353161 Hose | $31.19 Part Advantage |
