Model
Kenmore 110.84417800
Washer (Kenmore 11084417800)
Parts Sections (11)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
110.84417800Washer (Kenmore 11084417800)
11 diagrams238 parts

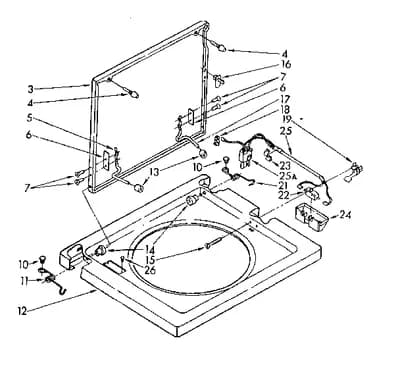

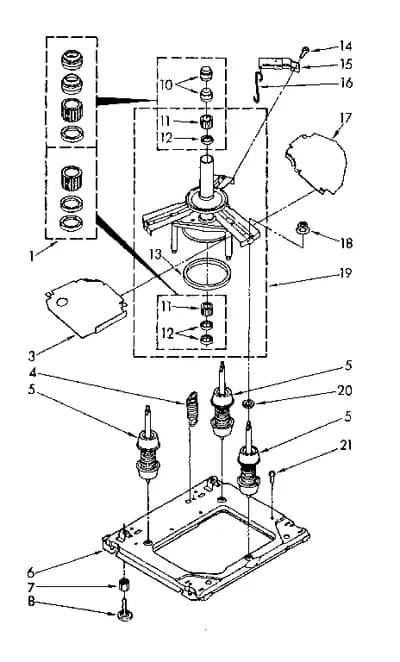

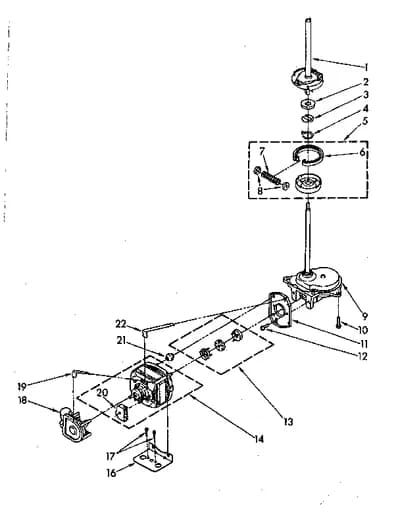

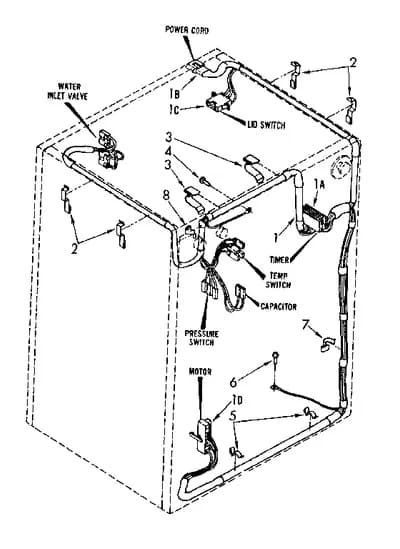

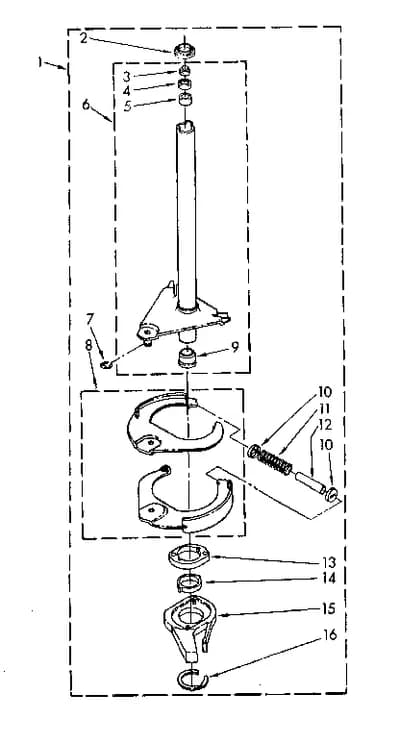

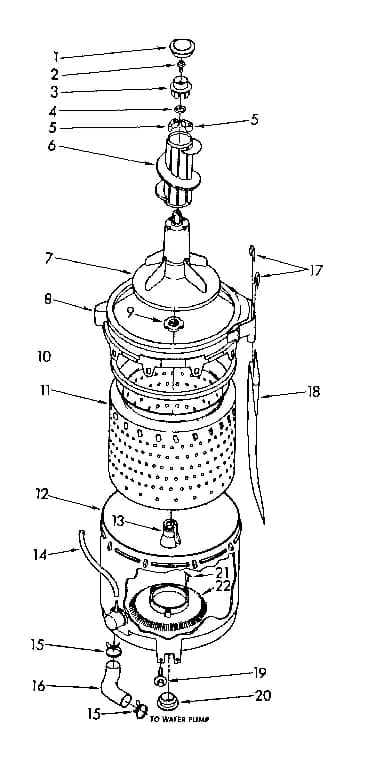

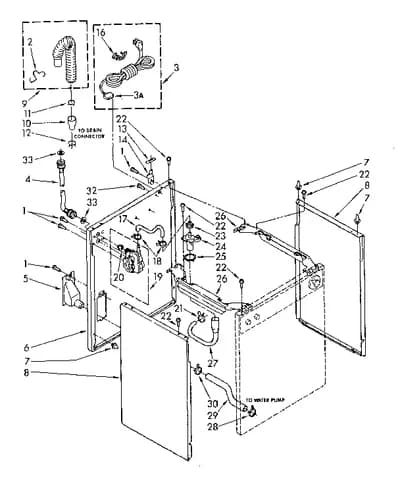

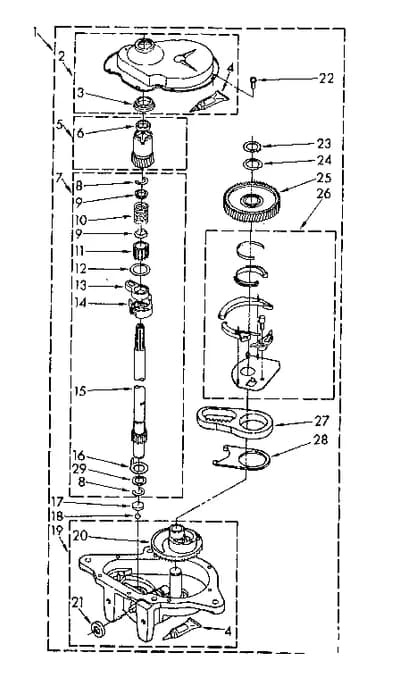

Parts Sections (11)
Diagram
CONSOLE AND FRONT PANEL PARTS
Parts in CONSOLE AND FRONT PANEL PARTS
23 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | 388883NLA Timer 60 | Discontinued |
| 2 | – | 388189 Shield Control | - |
| 3 | – | 3347107 Screw | - |
| 4 |  | Clamp | - |
| 5 | – | 87136 Switch | - |
| 7 |  | WP8572717replaces 357021 Capacitor | $43.58 Part Advantage |
| 8 | | 64054NLA Water-Level Switch | Discontinued |
| 9 | | 98669NLA Dryer Cabinet Panel Guide Pin | Discontinued |
| 10 | | Lock | - |
| 11 | – | N/P (338471) (ALT.) | - |
| 11A | – | 63609 Front Panl W | - |
| 11B | – | 63610 Frnt Panl Al | - |
| 11C | – | 63611 Frnt Panl To | - |
| 11D | – | 63612 Panel Pl | - |
| 11E | – | 63613 Panel | - |
| 12 |  | WP356418replaces 96435 Screw | $2.30 Part Advantage |
| 13 | – | 384508 Control Panel | - |
| 14 | – | 356388 Rivet | - |
| 16 | – | 388001 Timer Dial | - |
| 17 |  | WP3362625replaces 387987 Knob | $30.37 Parts Dr |
| 18 |  | WP688805replaces 688805 Laundry Appliance Control Knob Clip | $3.55 Part Advantage |
| 19 | | 388030NLA Knob Wt | Discontinued |
| 20 | | Knob Wl | - |
