Model
Kenmore 110.91564110
Washer (Kenmore 11091564110)
Parts Sections (11)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
110.91564110Washer (Kenmore 11091564110)
11 diagrams227 parts
Parts Sections (11)
Diagram

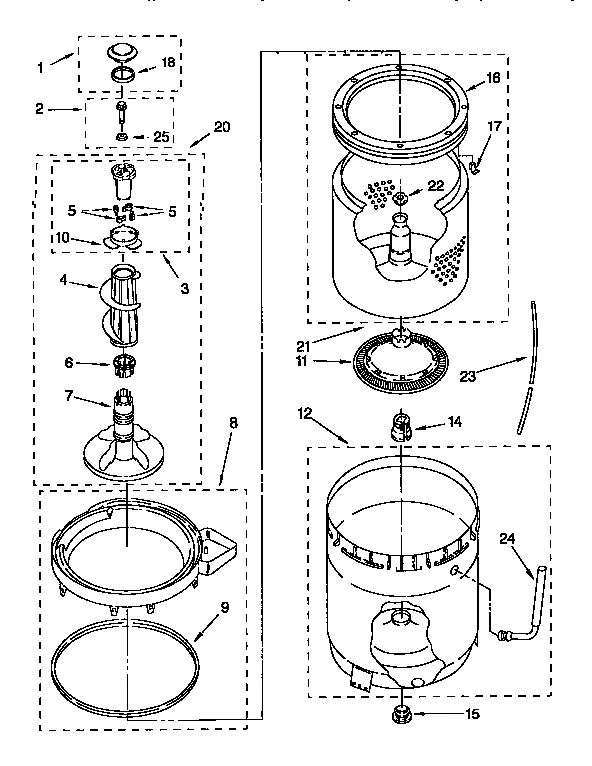

AGITATOR, BASKET AND TUB
Parts in AGITATOR, BASKET AND TUB
23 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|

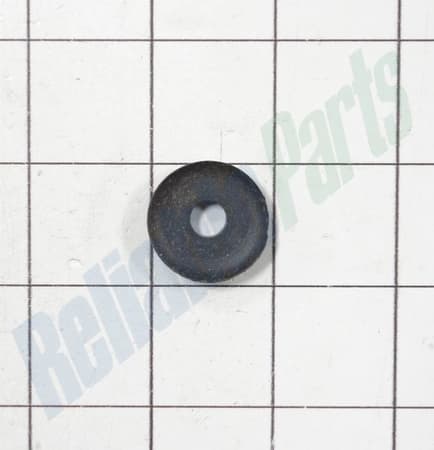

| 1 |  | WP3362061replaces 63973 Cap | - |
| 2 |  | WP358237replaces 358237 Washer Agitator Bolt | $2.22 Part Advantage |
| 3 |  | 285748replaces 3363662 Agitator Cam | $15.94 Part Advantage |

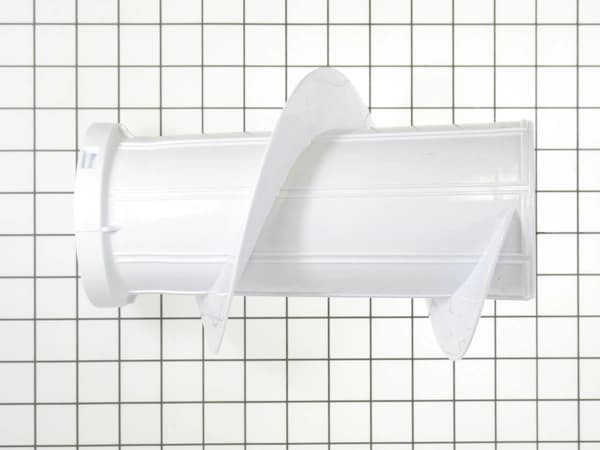

| 4 |  | Washer Agitator Auger | - |
| 5 |  | 80040replaces 3366877 Agitator Dog | $1.29 Part Advantage |
| 6 |  | 285587replaces 3350389 Washer | $1.39 Part Advantage |
| 7 |  | WP3350832replaces 3350832 Washer Agitator | - |
| 8 |  | 3360611NLA Washer Tub Ring | Discontinued |
| 9 |  | WP3359586replaces 3359586 Washer Tub Seal | $29.33 Part Advantage |
| 10 |  | WP3363661replaces 3363661 Washer Agitator Cam Bearing | $5.95 ApplianceParts Pro |
| 11 |  | 285868replaces 3361948 Filtr-lint | $13.34 Part Advantage |
| 12 |  | Washer Outer Tub | - |
| 14 |  | WP389140replaces 389140 Washer Drive Block | $7.71 Part Advantage |
| 15 |  | W10814296replaces 383727 Washer Tub Gasket | $2.49 Part Advantage |
| 16 | | Balance Ring | Discontinued |
| 17 |  | WP8519815replaces 387867 Balance Ring Clip | $2.30 Part Advantage |
| 18 |  | WP358912replaces 358912 Seal-cap Ring | $5.00 RepairClinic |
| 20 |  | 285558replaces 3350570 Agitator | $158.95 ApplianceParts Pro |
| 21 | | Basket | Discontinued |
| 22 |  | WP21366replaces 21366 Washer Spanner Nut | $3.38 Part Advantage |
| 23 |  | WP353244replaces 353406 Hose | $31.19 Part Advantage |
| 24 | | 3948705NLA Washer Bleach Dispenser Hose | Discontinued |
| 25 |  | WP21365replaces 21365 Washer | $7.39 RepairClinic |
