Model
Kenmore 110.92292100
Washer (Kenmore 11092292100)
Parts Sections (11)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
110.92292100Washer (Kenmore 11092292100)
11 diagrams231 parts
Parts Sections (11)
Diagram

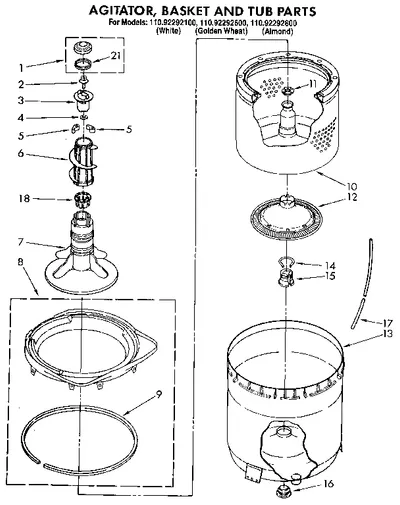

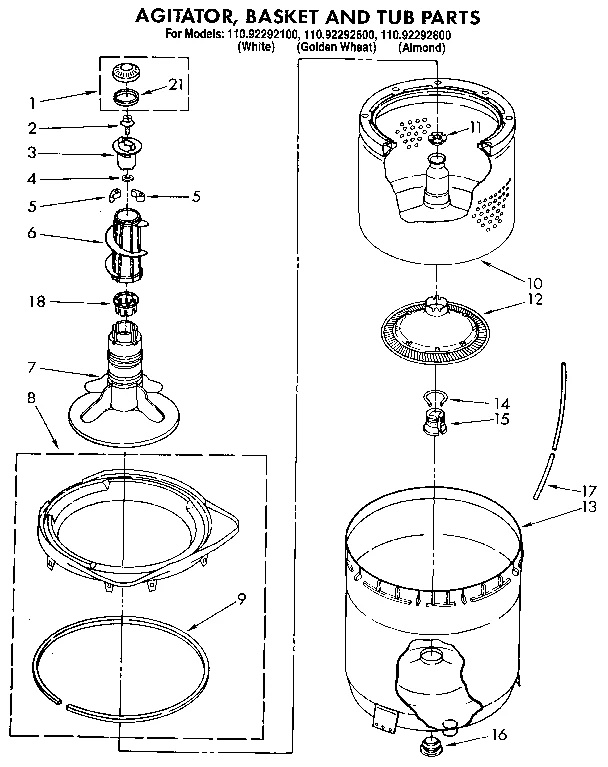

AGITATOR, BASKET AND TUB
Parts in AGITATOR, BASKET AND TUB
19 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | WP3362061replaces 63973 Cap | - |
| 2 |  | WP358237replaces 358237 Washer Agitator Bolt | $2.22 Part Advantage |
| 3 |  | 285748replaces 3351000 Agitator Cam | $15.94 Part Advantage |
| 4 |  | 357574NLA Appliance O-Ring | Discontinued |
| 5 |  | 80040replaces 387091 Agitator Dog | $1.29 Part Advantage |
| 6 |  | WP3360824replaces 389141 Agitator Auger | $75.76 Part Advantage |
| 7 |  | WP389386replaces 389386 Washer Agitator | $93.39 PartSelect |
| 8 | | 388201NLA Washer Tub Ring | Discontinued |
| 9 |  | WP3976308replaces 3359585 Tub Seal | $8.62 Part Advantage |
| 10 |  | W10389328replaces 3350649 Basket Ring | $207.63 PartSelect |
| 11 |  | WP21366replaces 21366 Washer Spanner Nut | $3.38 Part Advantage |
| 12 |  | 285868replaces 62941 Filter | $13.34 Part Advantage |
| 13 |  | Washer Outer Tub | $144.52 PartSelect |
| 14 | | 62942NLA Washer Filter Plate Lock Ring | Discontinued |
| 15 |  | WP389140replaces 389140 Washer Drive Block | $7.71 Part Advantage |
| 16 |  | W10814296replaces 383727 Washer Tub Gasket | $2.49 Part Advantage |
| 17 |  | WP353244replaces 3347780 Hose-wl | $31.19 Part Advantage |
| 18 |  | 285587replaces 3350389 Washer | $1.39 Part Advantage |
| 21 |  | WP358912replaces 358912 Seal-cap Ring | $5.00 RepairClinic |
