Model
Kenmore 110.92593400
Washer (Kenmore 11092593400)
Parts Sections (11)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
110.92593400Washer (Kenmore 11092593400)
11 diagrams223 parts
Parts Sections (11)
Diagram

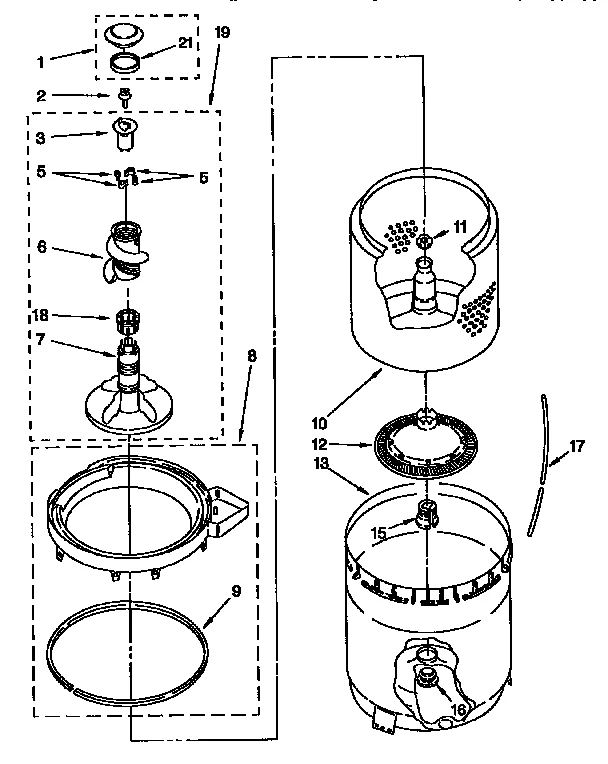

AGITATOR, BASKET AND TUB PARTS
Parts in AGITATOR, BASKET AND TUB PARTS
18 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | WP3362061replaces 3362061 Washer Agitator Cap | - |
| 2 |  | WP358237replaces 358237 Washer Agitator Bolt | $2.22 Part Advantage |
| 3 |  | 285748replaces 3351000 Agitator Cam | $15.94 Part Advantage |
| 5 |  | 80040replaces 387091 Agitator Dog | $1.29 Part Advantage |
| 6 |  | WP3360824replaces 3360824 Washer Agitator Auger | $75.76 Part Advantage |
| 7 |  | WP389386replaces 389386 Washer Agitator | $93.39 PartSelect |
| 8 |  | 388201NLA Washer Tub Ring | Discontinued |
| 9 |  | WP3976308replaces 3359585 Tub Seal | $8.62 Part Advantage |
| 10 |  | W10389328replaces 3350649 Basket Ring | $207.63 PartSelect |
| 11 |  | WP21366replaces 21366 Washer Spanner Nut | $3.38 Part Advantage |
| 12 |  | 285868replaces 3361948 Filtr-lint | $13.34 Part Advantage |
| 13 |  | Washer Outer Tub | $144.52 PartSelect |
| 15 |  | WP389140replaces 389140 Washer Drive Block | $7.71 Part Advantage |
| 16 |  | W10814296replaces 383727 Washer Tub Gasket | $2.49 Part Advantage |
| 17 |  | WP353244replaces 3347780 Hose-wl | $31.19 Part Advantage |
| 18 |  | 285587replaces 3350389 Washer | $1.39 Part Advantage |
| 19 |  | 285727replaces 3361598 Agitator | $114.27 Part Advantage |
| 21 |  | WP358912replaces 358912 Seal-cap Ring | $5.00 RepairClinic |
