Model
Kenmore 596.51673100
26" Side-By-Side Refrigerator (Kenmore 59651673100)
Parts Sections (12)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
596.5167310026" Side-By-Side Refrigerator (Kenmore 59651673100)
12 diagrams296 parts
Parts Sections (12)
Diagram

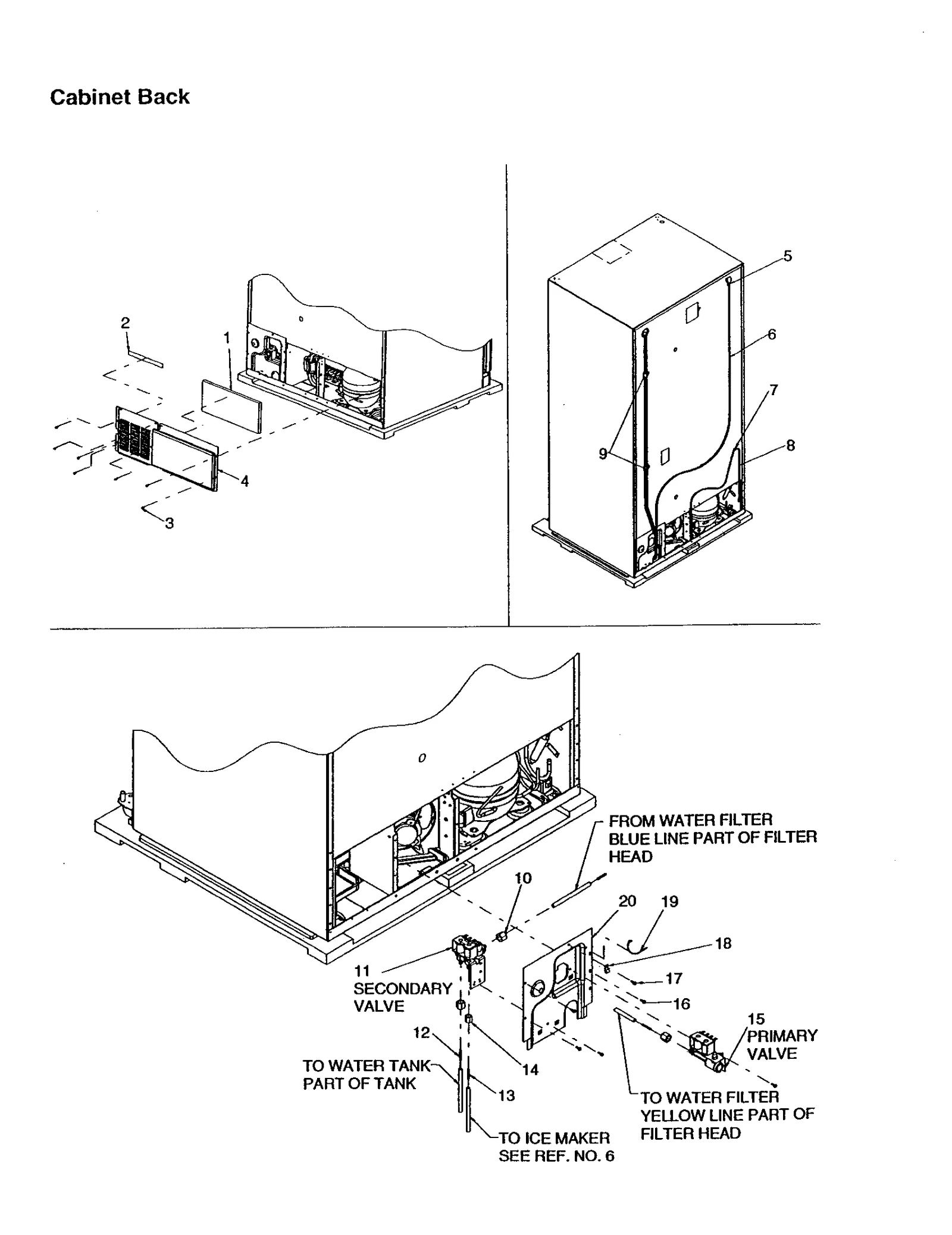

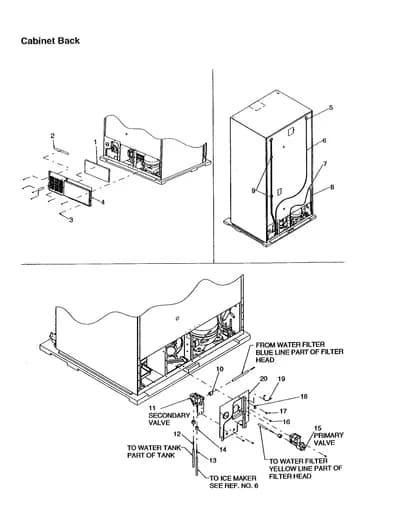

CABINET BACK
Parts in CABINET BACK
19 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | B0523599 Refrigerator Insulation | - |
| 2 | – | B5759649 Gasket, Mc B | - |
| 3 |  | W10709801replaces M0227217 Refrigerator Screw | - |
| 4 | – | 12575101ED Refrigerator Back | - |
| 5 |  | WPM0114003replaces M0114003 Refrigerator Clamp | $7.95 ApplianceParts Pro |
| 6 |  | WPB5705307replaces B5705328 Refrigerator Fill Tube | $6.76 Part Advantage |
| 7 |  | WPM0104106replaces M0104106 Cord Clip | $3.59 Parts Dr |
| 8 |  | WP67006506replaces 12583301 Refrigerator Power Cord | $18.80 Parts Dr |
| 9 | | M0104102NLA Refrigerator Clip | Discontinued |
| 10 | | M0753002NLA Refrigerator Nut | Discontinued |
| 11 |  | 12002193replaces 12544102 Refrigerator Valve | $62.24 Part Advantage |
| 12 | – | A1055104 Refrigerator Spring | - |
| 13 | | Spring | Discontinued |
| 14 |  | WP627018replaces M0753001 Fitting | $4.20 Part Advantage |
| 15 |  | WP12544002replaces 12544002 Refrigerator Valve | $127.31 Part Advantage |
| 16 |  | 681390replaces M0251015 Refrigerator Screw | $8.82 ApplianceParts Pro |
| 18 | – | M0108001 Refrigerator Tube Clamp | - |
| 19 | – | M0322201 TIE-ELEC | - |
| 20 | – | 12575201ED Refrigerator Water Cover | - |
