Kenmore 596.58635890
Side-By-Side Refrigerator (Kenmore 59658635890)
Parts Sections (12)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
596.58635890Side-By-Side Refrigerator (Kenmore 59658635890)
12 diagrams283 parts

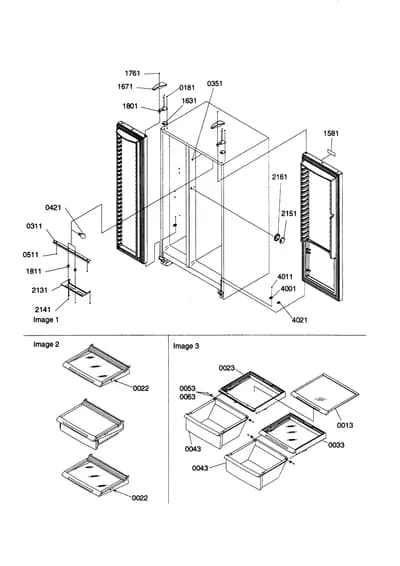

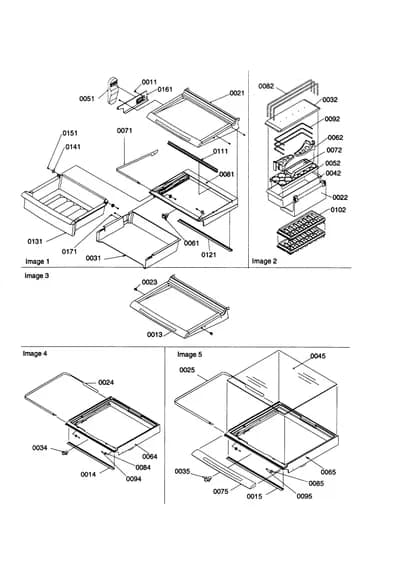

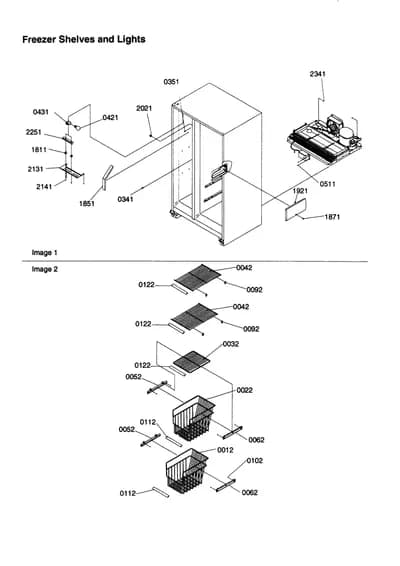

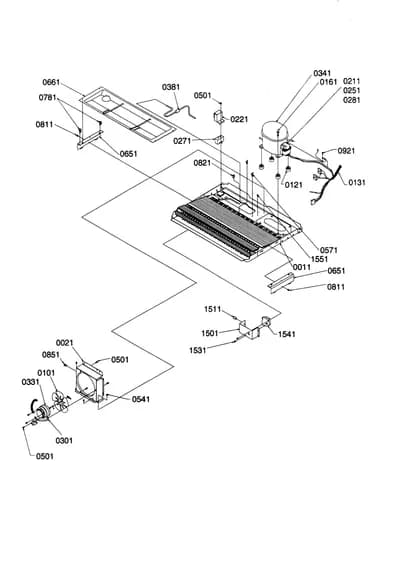

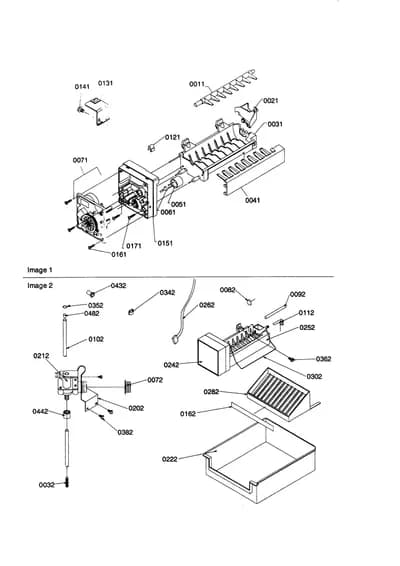

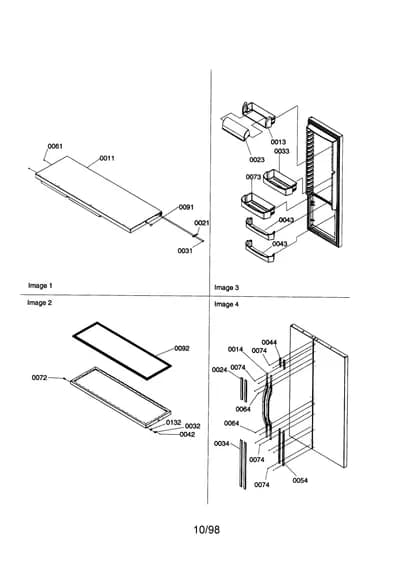

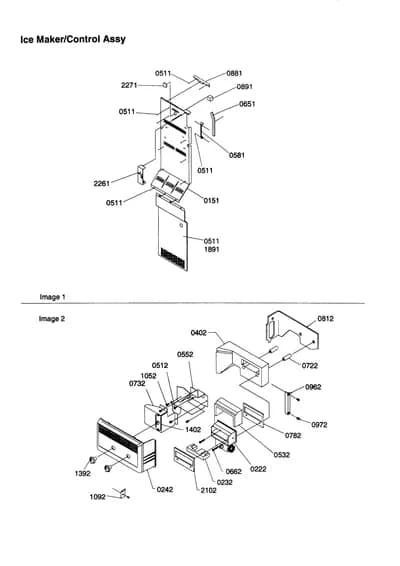

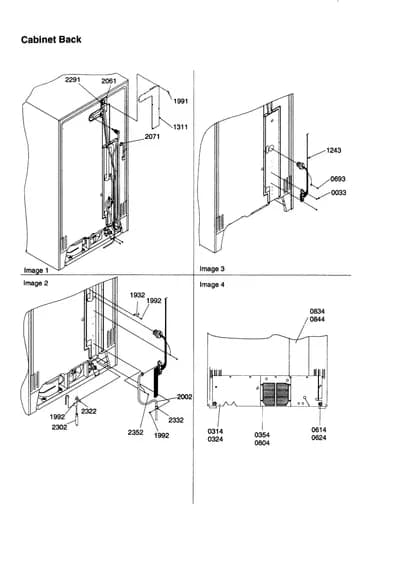

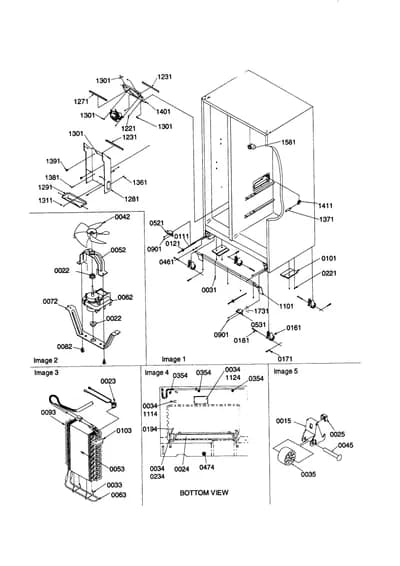

Parts Sections (12)
Diagram

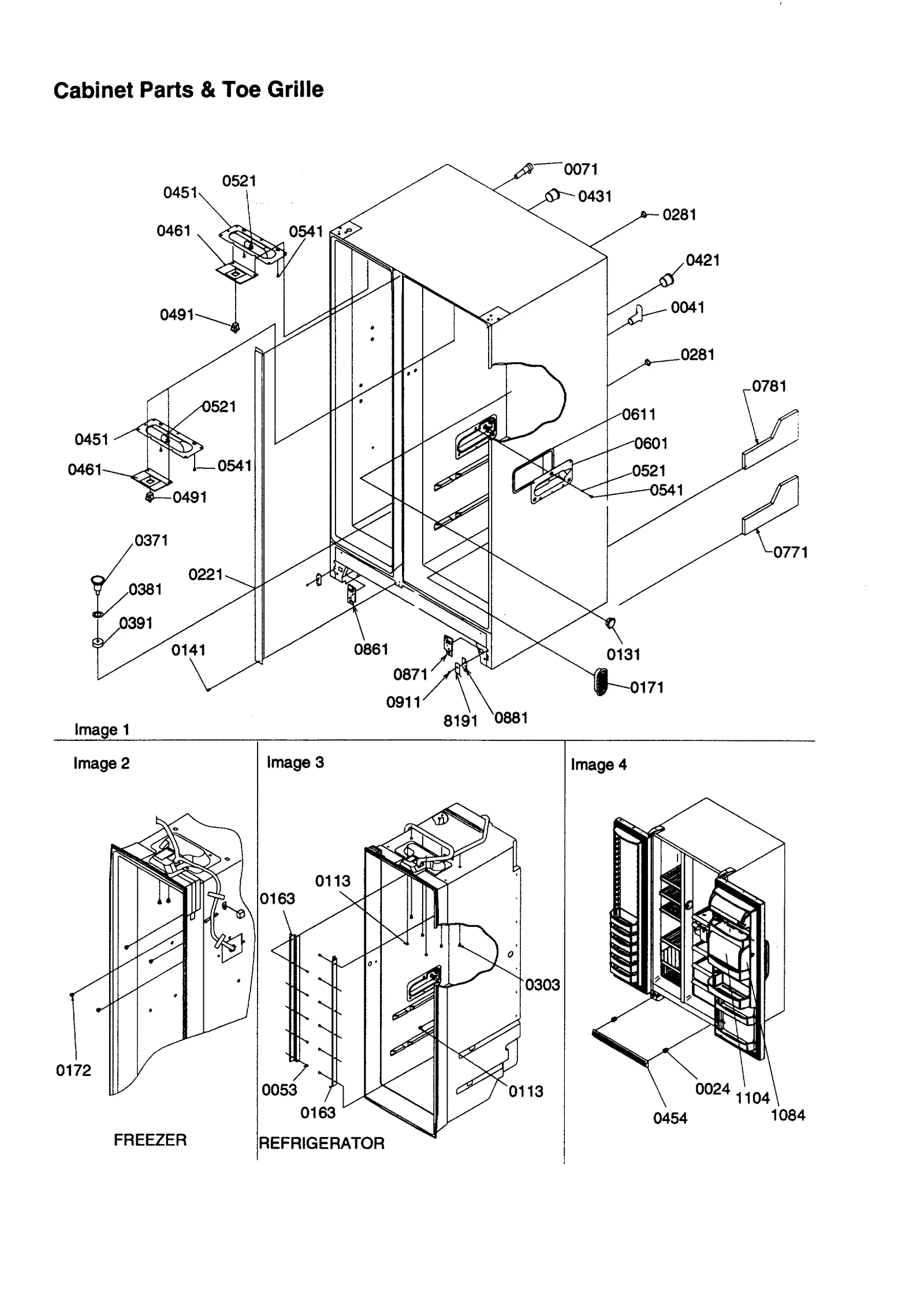

CABINET PARTS AND TOE GRILLE
Parts in CABINET PARTS AND TOE GRILLE
33 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 24 |  | WPM0117303replaces M0117303 Refrigerator Toe Grille Clip | $9.57 ApplianceParts Pro |
| 41 | – | C8971902 Tunl Ex Heat | - |
| 53 |  | WP90767replaces M0211016 Screw | $2.30 Part Advantage |
| 71 | – | 12023401 Refrigerator Fill Tube | - |
| 113 |  | M0580007NLA Grommet | Discontinued |
| 131 | – | 10923101 Refrigerator Tunnel | - |
| 141 |  | 12991101replaces M0210816 Refrigerator Screw | $8.17 PartSelect |
| 163 | – | 12231603 Refrigerator Ladder | - |
| 171 | – | D7785402 Refrigerator Grille | - |
| 221 | – | N/P (SEE NOTE) VT MULL-PNT | - |
| 281 | – | A3080001 Button Plug | - |
| 303 | – | M0581001 Refrigerator Grommet Screw | - |
| 371 |  | W10815413replaces D7753903 Refrigerator Funnel | $30.83 Parts Dr |
| 381 |  | WPM0500703replaces M0500703 Refrigerator O-Ring Seal | $6.15 Parts Dr |
| 391 |  | WPB8381501replaces B8381501 Gasket Drain Tube | $3.38 Part Advantage |
| 421 | – | 10187501 Tunnel Wire | - |
| 431 | – | 10187601 Tunnel Wire | - |
| 451 | – | D7760103 Refrigerator Housing | - |
| 454 | – | 12321806 Refrigerator Grille | - |
| 461 | – | D7297604 Refrigerator Cover | - |
| 491 |  | W11384469replaces C3680308 Refrigerator Switch | $14.41 Part Advantage |
| 521 | – | B5733302 Ground Clip | - |
| 601 | – | 10270203 Refrigerator Light Housing | - |
| 611 | – | A3189337 Refrigerator Gasket | - |
| 771 | – | 10906501 Refrigerator Insulation | - |
| 781 | – | 10906503 Refrigerator Insulation | - |
| 861 | – | 12146602 Strip-lh | - |
| 871 | – | 12146601 Strip-rh | - |
| 881 | – | 12146803 Refrigerator Spacer | - |
| 911 | – | B5642901 Rivet-wht | - |

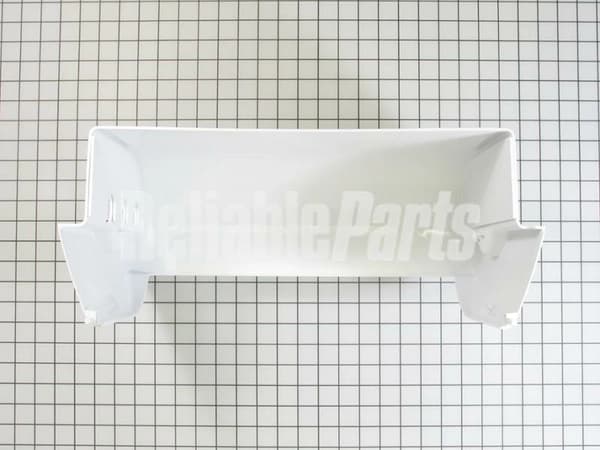

| 1084 |  | Refrigerator Chiller Frame | Discontinued |
| 1104 | – | 12313901 Refrigerator Door Chiller | - |
| 8191 | – | 12187602 Refrigerator Spacer | - |
