Model
Kenmore 596.62842101
Refrigerator (Kenmore 59662842101)
Parts Sections (12)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
596.62842101Refrigerator (Kenmore 59662842101)
12 diagrams239 parts
Parts Sections (12)
Diagram

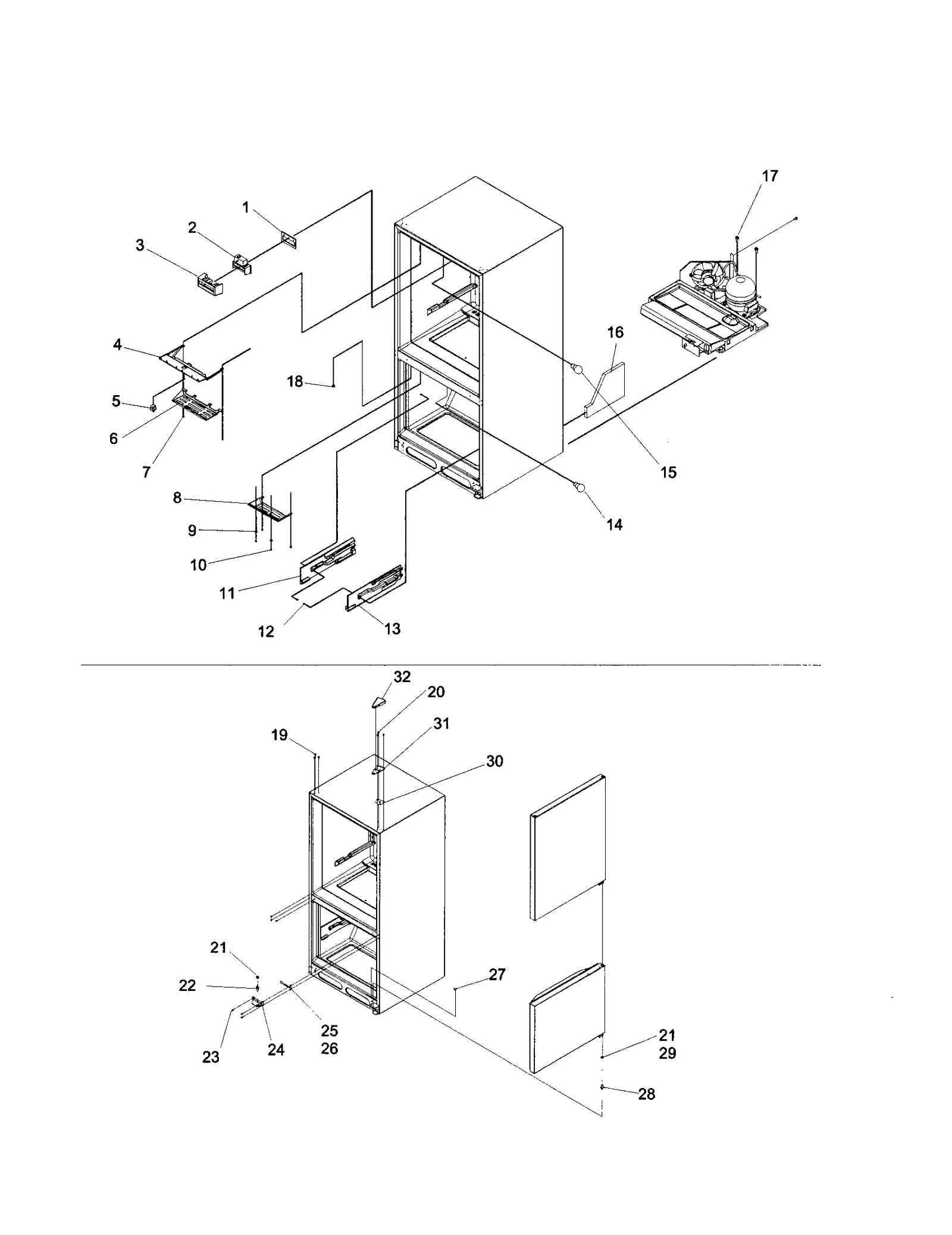

COVERS, HINGES AND LIGHT COVERS
Parts in COVERS, HINGES AND LIGHT COVERS
34 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | B8345401 Refrigerator Damper Gasket | - |
| 2 |  | R0161050NLA Refrigerator Damper Control | Discontinued |
| 3 | – | 12205501 Refrigerator Insulation | - |
| 4 | – | 12056201 Refrigerator Shield | - |
| 5 |  | W11384469replaces C3680310 Refrigerator Switch | $14.41 Part Advantage |
| 6 | – | 12056301 Refrigerator Cover | - |
| 7 |  | 67006425replaces M0238616 Refrigerator Screw | $2.30 Part Advantage |
| 8 | – | 10493302 Cover-fz L | - |
| 9 | – | M0270538 Washer | - |
| 10 | – | M0238846 Refrigerator Screw | - |
| 11 | – | 12217101 Refrigerator Glide | - |
| 12 | | 67006425replaces M0238642 Refrigerator Screw | $2.30 Part Advantage |
| 13 | – | 12217102 Refrigerator Glide | - |
| 14 |  | 8009replaces A0282803 Refrigerator Lamp, 40-watt, 115 to 125-volt | $7.53 Part Advantage |
| 15 |  | W10887190replaces A0282807 Refrigerator Lamp | $6.46 Part Advantage |
| 16 | – | 10663002 Refrigerator Insulation | - |
| 17 | – | M0221523 Refrigerator Compressor Mounting Screw | - |
| 18 | – | M0310308 Refrigerator Button Plug | - |
| 19 | – | M0310738 Refrigerator Button Plug | - |
| 19A |  | WP67001130replaces M0310729 Refrigerator Button Plug | $5.00 RepairClinic |
| 20 |  | WP489349replaces M0238731 Refrigerator Screw | $2.30 Part Advantage |
| 21 |  | WPM0274057replaces M0274057 Refrigerator Shim | $2.30 Part Advantage |
| 22 |  | WP67006744replaces 10351001 Refrigerator Pin | $5.95 ApplianceParts Pro |
| 23 |  | WP67006380replaces M0226233 Refrigerator Screw | $21.46 ApplianceParts Pro |
| 24 | – | 12446503 Refrigerator Hinge | - |
| 25 | – | 10562211 Refrigerator Hinge Shim | - |
| 26 | – | 10562203 Refrigerator Shim | - |
| 27 | – | M0310330 Refrigerator Button Plug | - |
| 28 |  | 67007018replaces 10200801 Refrigerator Pin | $5.00 RepairClinic |
| 29 |  | Refrigerator Shim | Discontinued |
| 30 | – | 12545201 Refrigerator Pin Shim | - |
| 31 | – | 12077316 Refrigerator Hinge | - |
| 32 | – | 12076305 Refrigerator Hinge Cover | - |
| 32A | – | 12076302 W Hinge Cov | - |
