Kenmore 596.69877990
Bottom-Mount Refrigerator (Kenmore 59669877990)
Parts Sections (12)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
596.69877990Bottom-Mount Refrigerator (Kenmore 59669877990)
12 diagrams289 parts

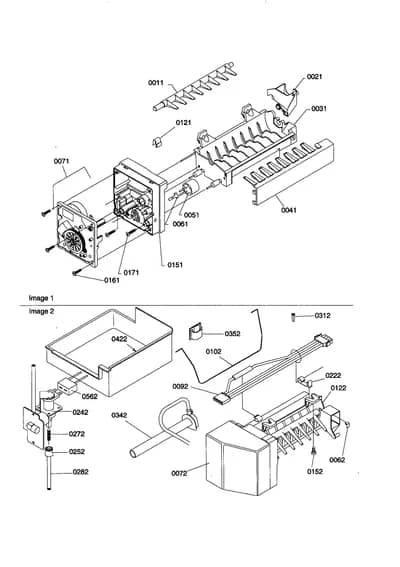

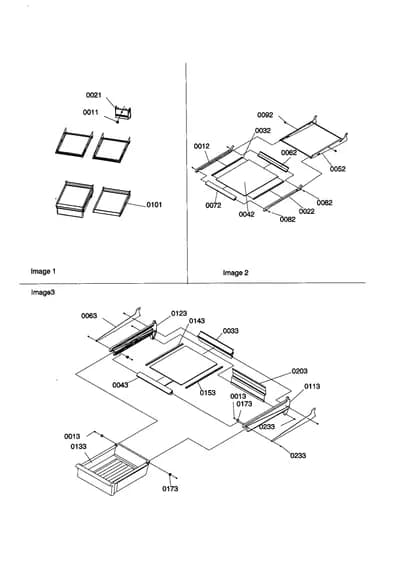

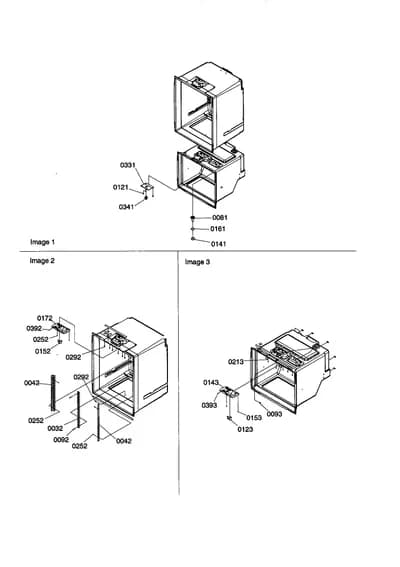

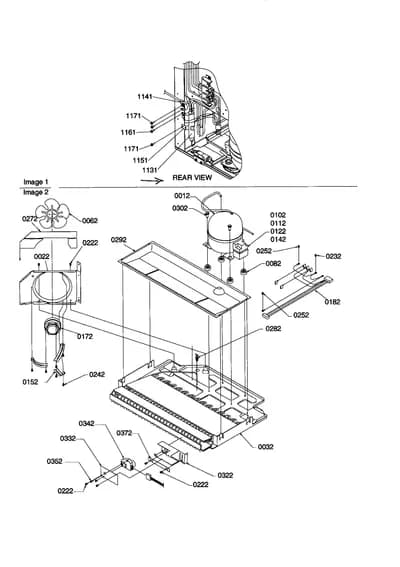

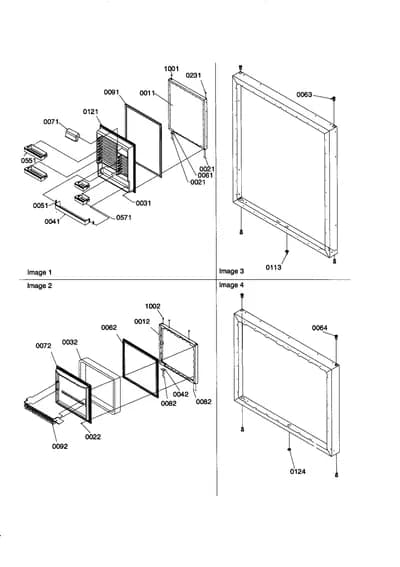

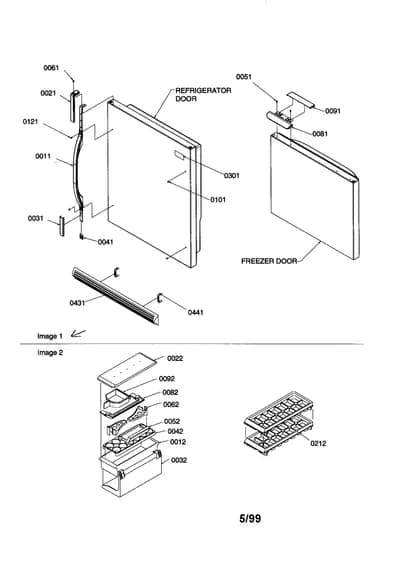

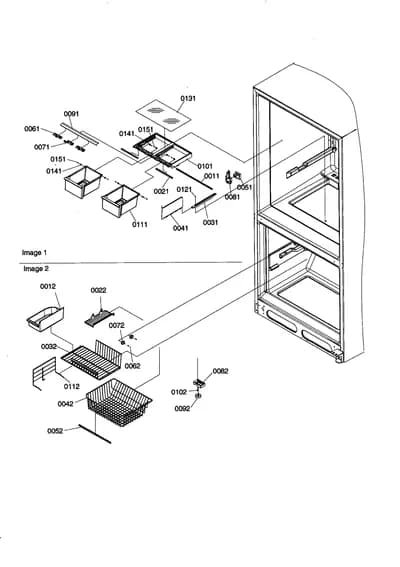

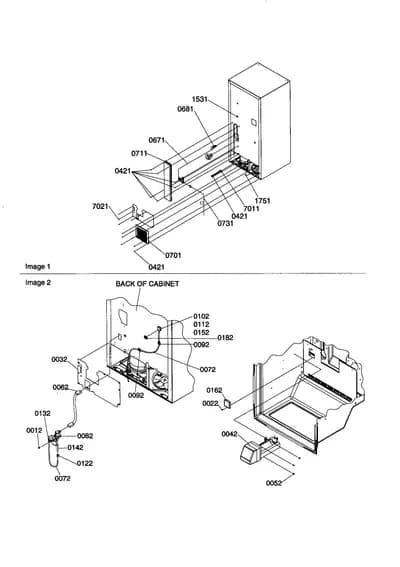

Parts Sections (12)

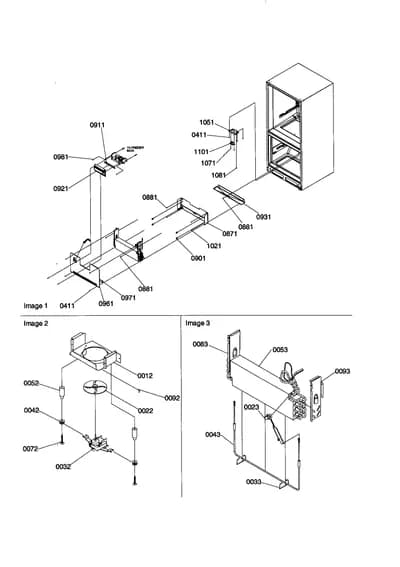

Diagram

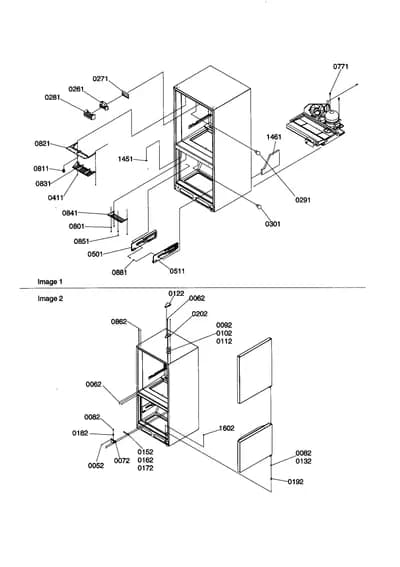

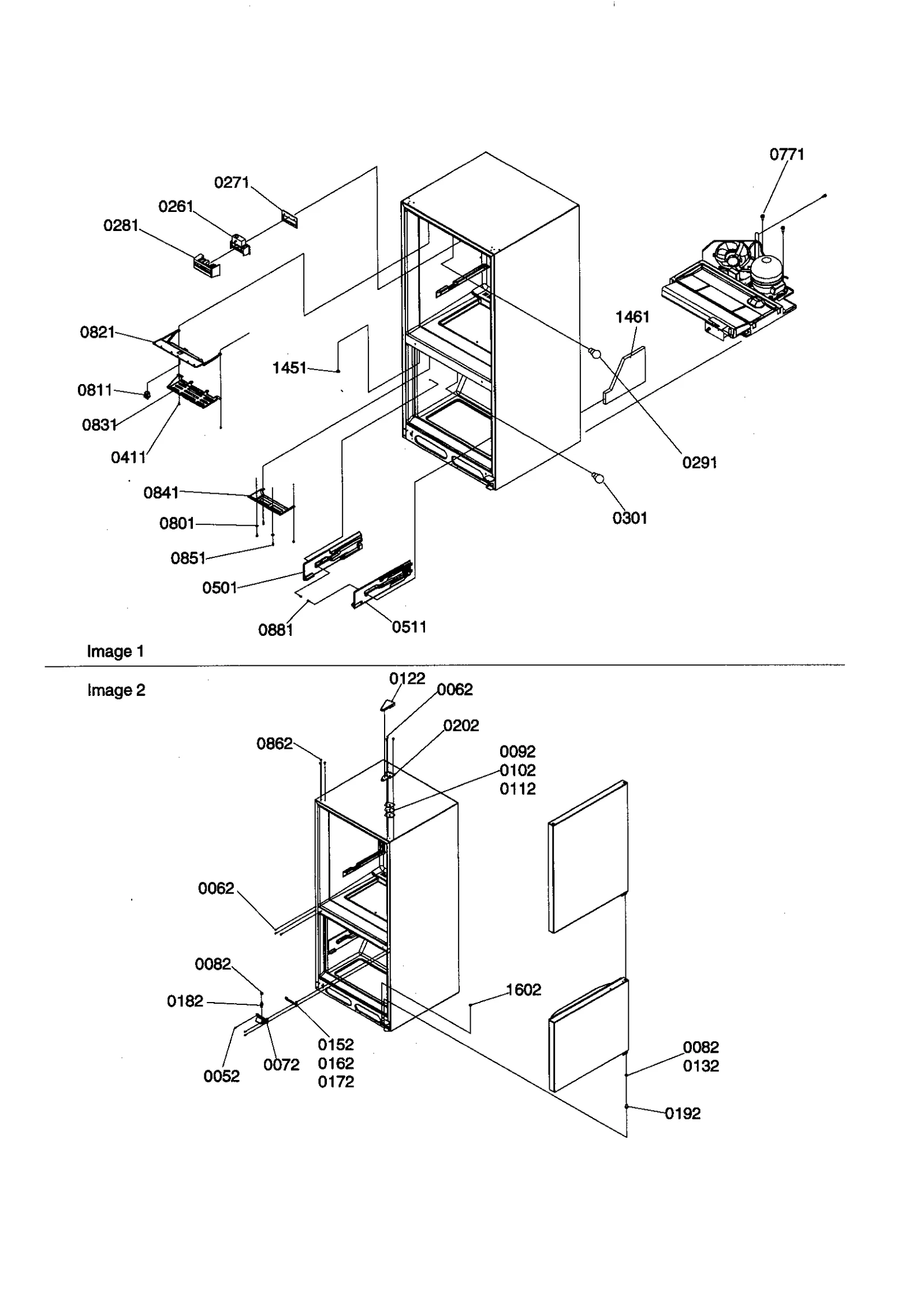

COVER, HINGES AND LIGHT COVERS
Parts in COVER, HINGES AND LIGHT COVERS
40 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 52 |  | WP67006380replaces M0226233 Refrigerator Screw | $21.46 ApplianceParts Pro |
| 62 |  | WP489349replaces M0238731 Refrigerator Screw | $2.30 Part Advantage |
| 72 | – | 12446504 Refrigerator Hinge | - |
| 72A | – | 12446503 Refrigerator Hinge | - |
| 82 |  | WPM0274057replaces M0274057 Refrigerator Shim | $2.30 Part Advantage |
| 92 | – | 10448501 Refrigerator Shim | - |
| 102 | – | 10448502 Refrigerator Shim | - |
| 112 | – | 10448503 Refrigerator Shim | - |
| 122 | – | 10444704 Refrigerator Cover | - |
| 122A | – | 10444709 Refrigerator Cover | - |
| 122B | – | 10444708 Refrigerator Cover | - |
| 132 |  | Refrigerator Shim | Discontinued |
| 152 | – | 10562201 Refrigerator Shim | - |
| 162 | – | 10562202 Refrigerator Shim | - |
| 172 | – | 10562203 Refrigerator Shim | - |
| 182 |  | WP67006744replaces 10351001 Refrigerator Pin | $5.95 ApplianceParts Pro |
| 192 |  | 67007018replaces 10200801 Refrigerator Pin | $5.00 RepairClinic |
| 202 | – | 12077303 Refrigerator Hinge | - |
| 261 |  | R0161050NLA Refrigerator Damper Control | Discontinued |
| 271 | – | B8345401 Refrigerator Damper Gasket | - |
| 281 | – | 12205501 Refrigerator Insulation | - |
| 291 |  | W10887190replaces A0282807 Refrigerator Lamp | $6.46 Part Advantage |
| 301 |  | 8009replaces A0282803 Refrigerator Lamp, 40-watt, 115 to 125-volt | $7.53 Part Advantage |
| 411 |  | 67006425replaces M0238616 Refrigerator Screw | $2.30 Part Advantage |
| 501 | – | 12205301 Refrigerator Glide | - |
| 511 | – | 12205302 Refrigerator Glide | - |
| 771 | – | M0221523 Refrigerator Compressor Mounting Screw | - |
| 801 | – | M0270538 Washer | - |
| 811 |  | W11384469replaces C3680310 Refrigerator Switch | $14.41 Part Advantage |
| 821 | – | 12056201 Refrigerator Shield | - |
| 831 | – | 12056301 Refrigerator Cover | - |
| 841 | – | 10493302 Cover-fz L | - |
| 851 | – | M0238846 Refrigerator Screw | - |
| 862 | – | M0310730 Refrigerator Plug | - |
| 862A |  | WP12246608replaces M0310731 Refrigerator Plug | $3.38 Part Advantage |
| 862B |  | WP67001130replaces M0310729 Refrigerator Button Plug | $5.00 RepairClinic |
| 881 | | 67006425replaces M0238642 Refrigerator Screw | $2.30 Part Advantage |
| 1451 | – | M0310308 Refrigerator Button Plug | - |
| 1461 | – | 10663002 Refrigerator Insulation | - |
| 1602 | – | M0310330 Refrigerator Button Plug | - |
