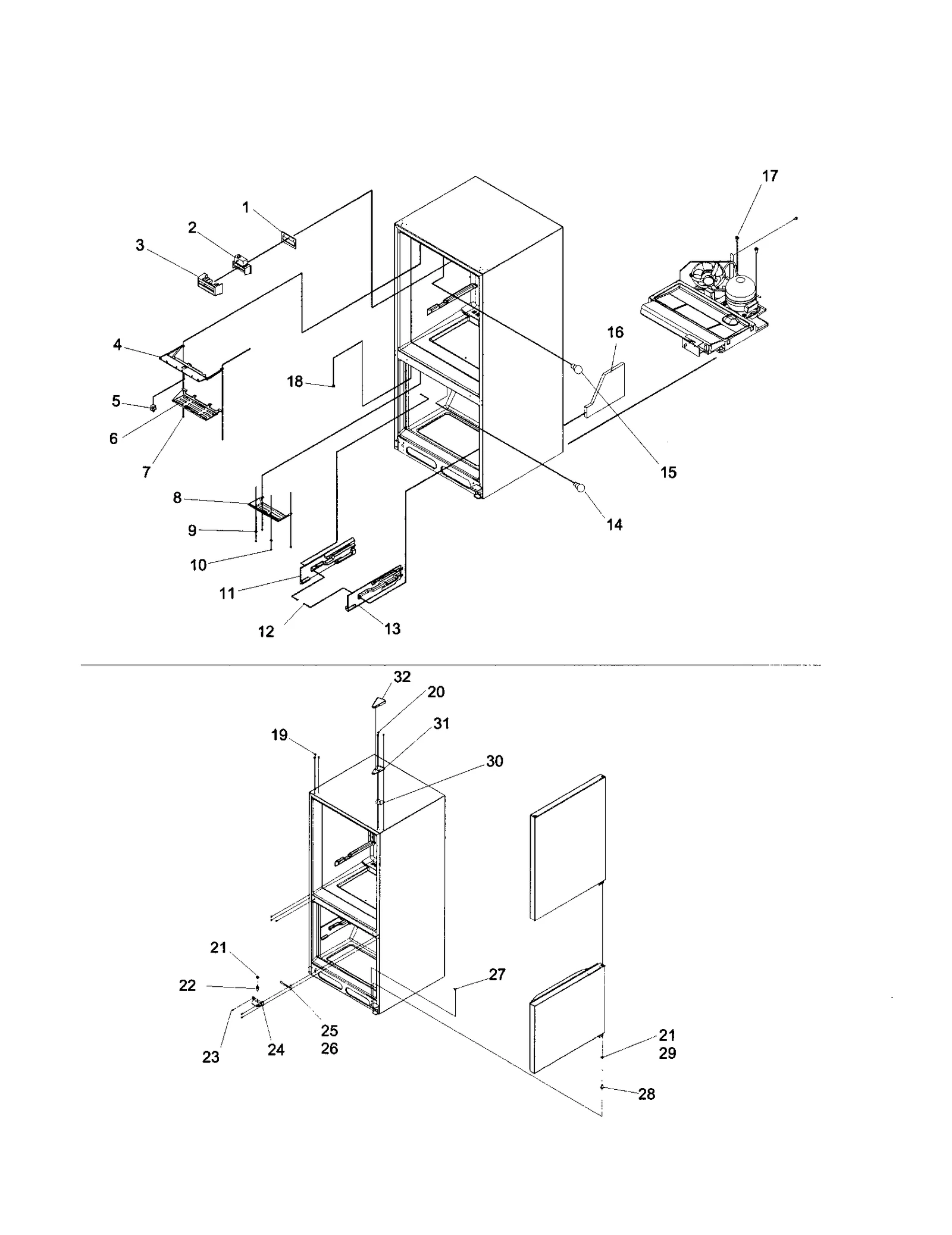

COVERS, HINGES AND LIGHT COVERS
Parts in COVERS, HINGES AND LIGHT COVERS
34 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | B8345401 Refrigerator Damper Gasket | - |
| 2 |  | R0161050NLA Refrigerator Damper Control | Discontinued |
| 3 | – | 12205501 Refrigerator Insulation | - |
| 4 | – | 12056201 Refrigerator Shield | - |
| 5 |  | W11384469replaces C3680310 Refrigerator Switch | $14.41 Part Advantage |
| 6 | – | 12056301 Refrigerator Cover | - |
| 7 |  | 67006425replaces M0238616 Refrigerator Screw | $2.30 Part Advantage |
| 8 | – | 10493302 Cover-fz L | - |
| 9 | – | M0270538 Washer | - |
| 10 | – | M0238846 Refrigerator Screw | - |
| 11 | – | 12217101 Refrigerator Glide | - |
| 12 | | 67006425replaces M0238642 Refrigerator Screw | $2.30 Part Advantage |
| 13 | – | 12217102 Refrigerator Glide | - |
| 14 |  | 8009replaces A0282803 Refrigerator Lamp, 40-watt, 115 to 125-volt | $7.53 Part Advantage |
| 15 |  | W10887190replaces A0282807 Refrigerator Lamp | $6.46 Part Advantage |
| 16 | – | 10663002 Refrigerator Insulation | - |
| 17 | – | M0221523 Refrigerator Compressor Mounting Screw | - |
| 18 | – | M0310308 Refrigerator Button Plug | - |
| 19 | – | M0310738 Refrigerator Button Plug | - |
| 19A |  | WP67001130replaces M0310729 Refrigerator Button Plug | $5.00 RepairClinic |
| 20 |  | R9800670replaces M0238731 Refrigerator Screw | $2.55 Part Advantage |
| 21 |  | WPM0274057replaces M0274057 Refrigerator Shim | $2.30 Part Advantage |
| 22 |  | WP67006744replaces 10351001 Refrigerator Pin | $5.95 ApplianceParts Pro |
| 23 |  | WP67006380replaces M0226233 Refrigerator Screw | $21.46 ApplianceParts Pro |
| 24 | – | 12446503 Refrigerator Hinge | - |
| 25 | – | 10562211 Refrigerator Hinge Shim | - |
| 26 | – | 10562203 Refrigerator Shim | - |
| 27 | – | M0310330 Refrigerator Button Plug | - |
| 28 |  | 67007018replaces 10200801 Refrigerator Pin | $5.00 RepairClinic |
| 29 |  | Refrigerator Shim | Discontinued |
| 30 | – | 12545201 Refrigerator Pin Shim | - |
| 31 | – | 12077316 Refrigerator Hinge | - |
| 32 | – | 12076305 Refrigerator Hinge Cover | - |
| 32A | – | 12076302 W Hinge Cov | - |
