Model
Kenmore 596.72844100
Refrigerator (Kenmore 59672844100)
Parts Sections (12)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
596.72844100Refrigerator (Kenmore 59672844100)
12 diagrams239 parts

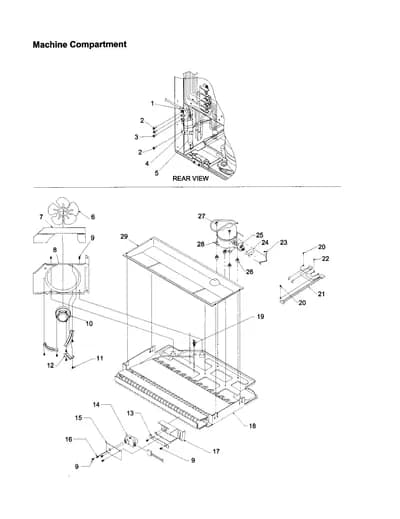

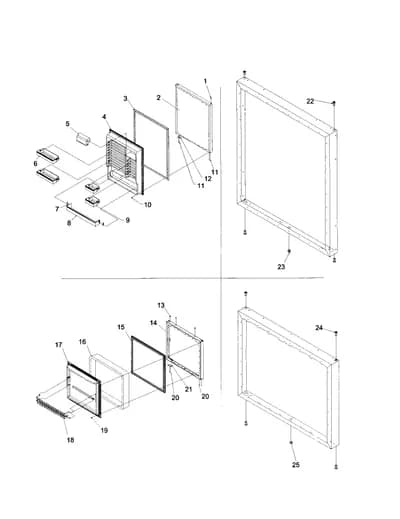

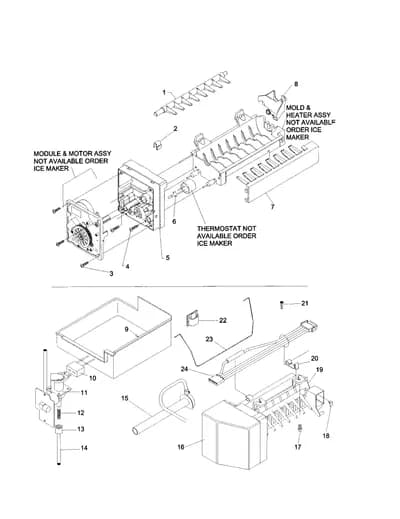

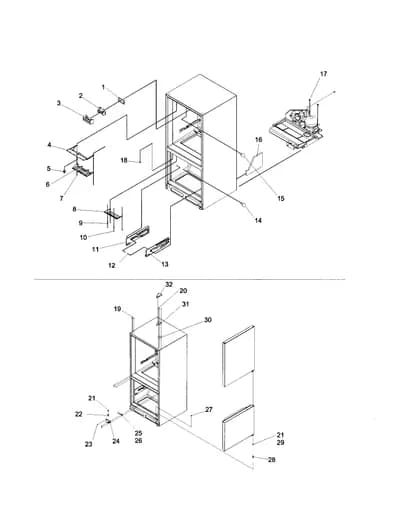

Parts Sections (12)
Diagram

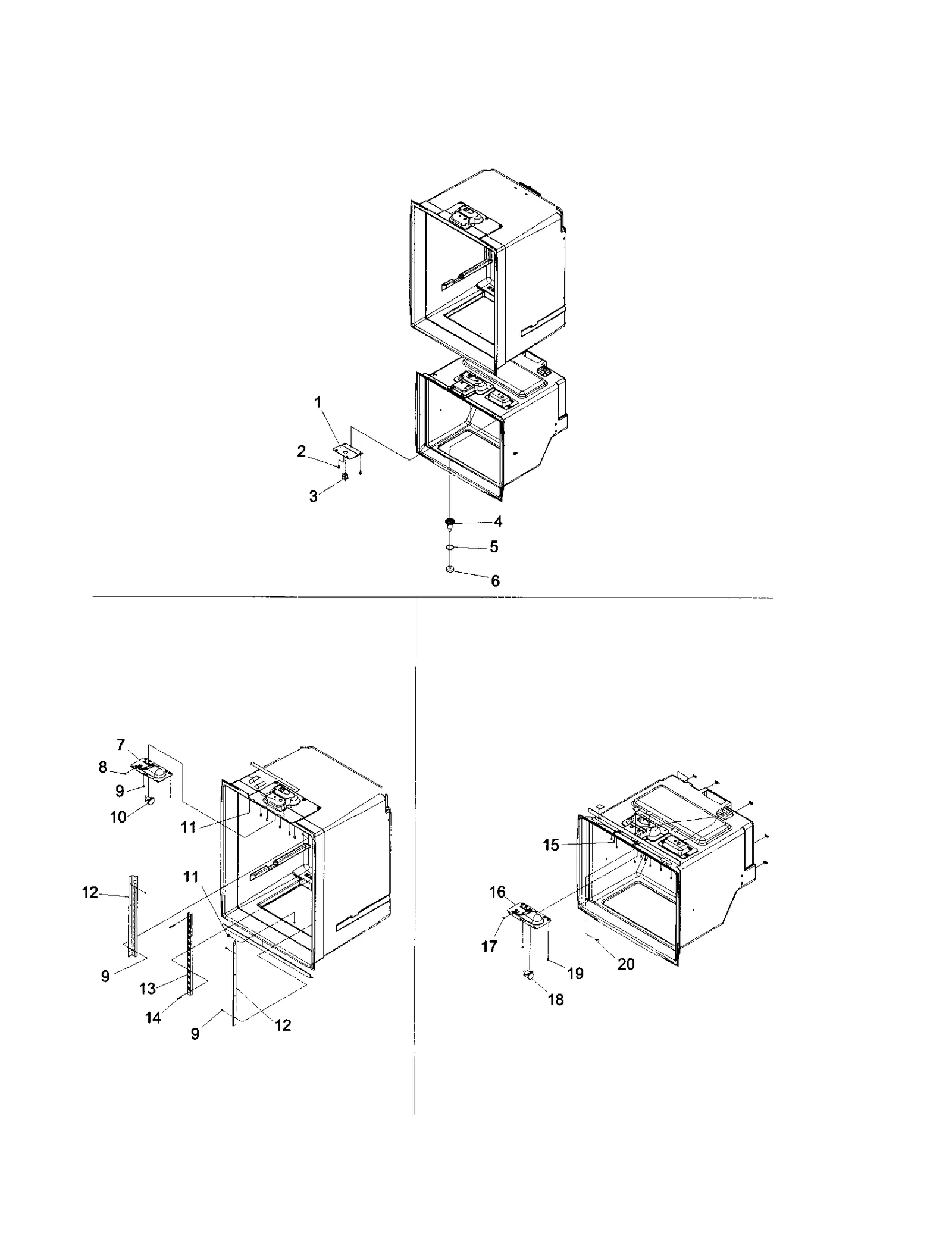

LIGHT SWITCHES/DRAIN FUNNEL
Parts in LIGHT SWITCHES/DRAIN FUNNEL
14 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | D7297604 Refrigerator Cover | - |
| 2 |  | 67006425replaces M0238616 Refrigerator Screw | $2.30 Part Advantage |
| 3 |  | W11384469replaces C3680310 Refrigerator Switch | $14.41 Part Advantage |
| 4 |  | W10815413replaces D7753903 Refrigerator Funnel | $30.83 Parts Dr |
| 5 |  | WPM0500703replaces M0500703 Refrigerator O-Ring Seal | $6.15 Parts Dr |
| 6 | – | B8381502 GASKET-DRAIN TUBE | - |
| 7 | – | 12427502 Refrigerator Housing | - |
| 8 | – | B5733302 Ground Clip | - |
| 9 | | 67006425replaces M0238642 Refrigerator Screw | $2.30 Part Advantage |
| 10 |  | Refrigerator Socket | - |
| 11 | – | M0581001 Refrigerator Grommet Screw | - |
| 12 | – | 12614202 Refrigerator Ladder | - |
| 14 |  | W10709795replaces M0231425 Refrigerator Screw | $5.22 RepairClinic |
| 20 |  | 12991101replaces M0210816 Refrigerator Screw | $8.17 PartSelect |
