Kenmore 596.79877990
Bottom-Mount Refrigerator (Kenmore 59679877990)
Parts Sections (12)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
596.79877990Bottom-Mount Refrigerator (Kenmore 59679877990)
12 diagrams289 parts

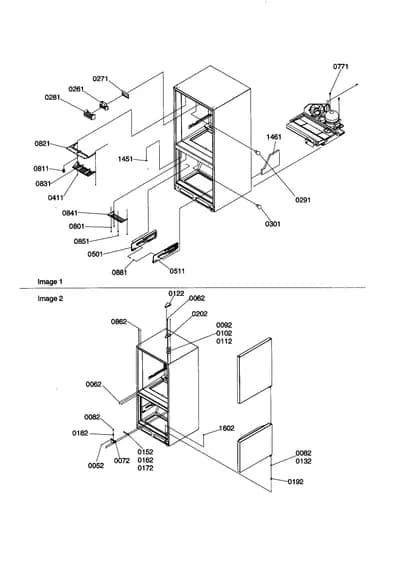

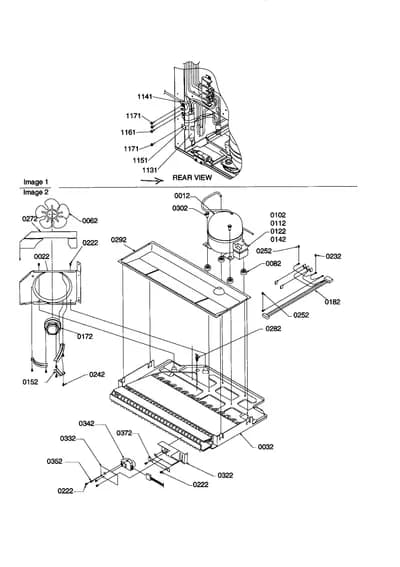

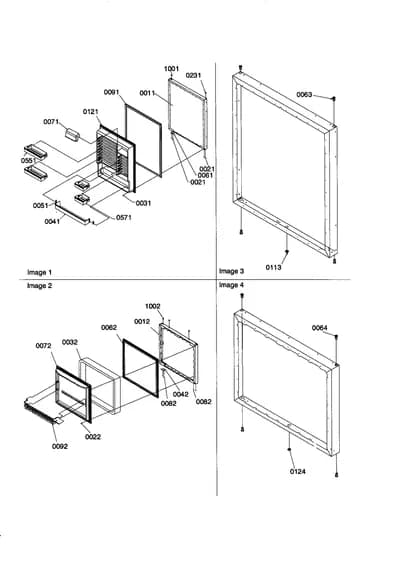

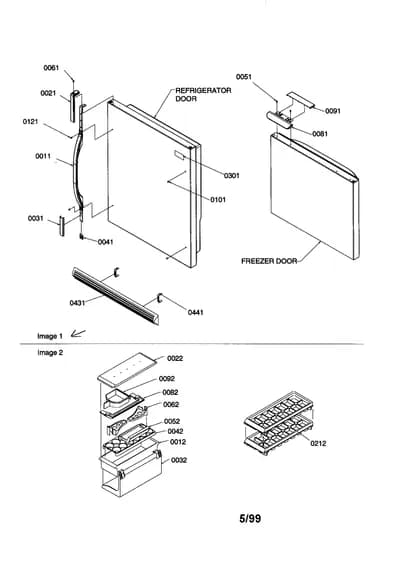

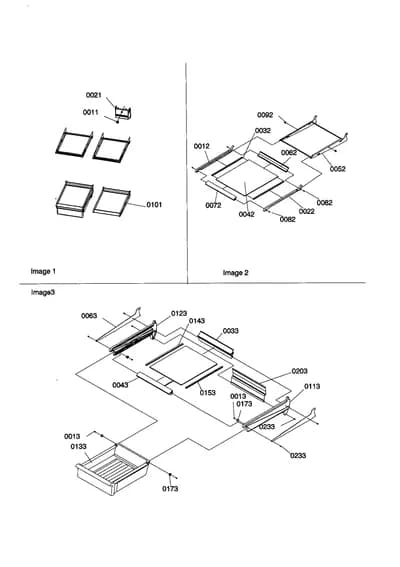

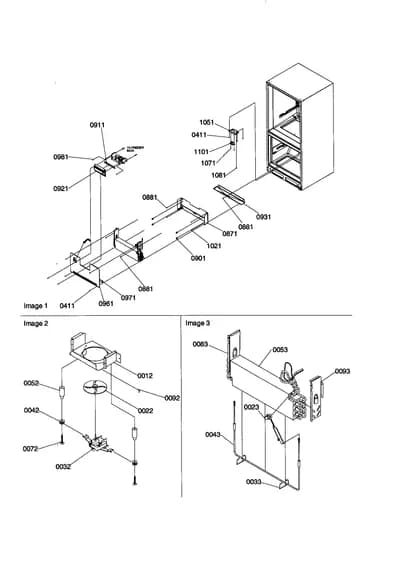

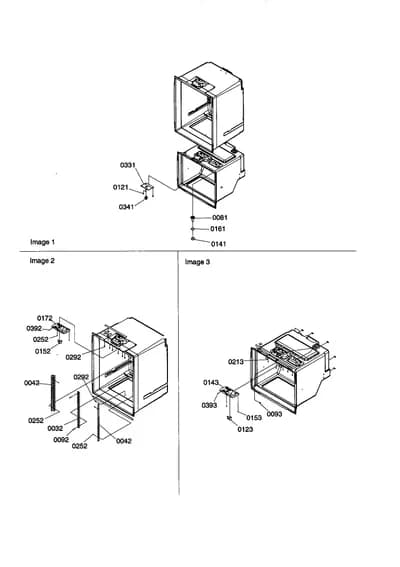

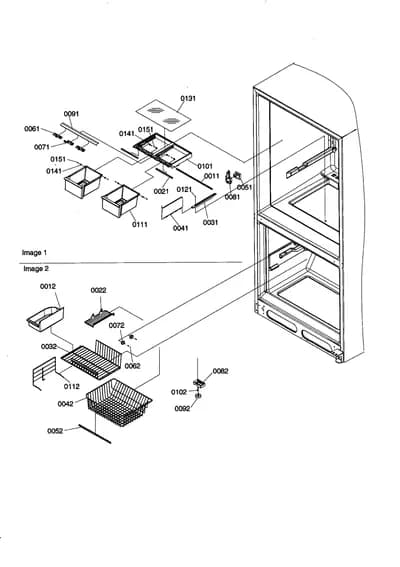

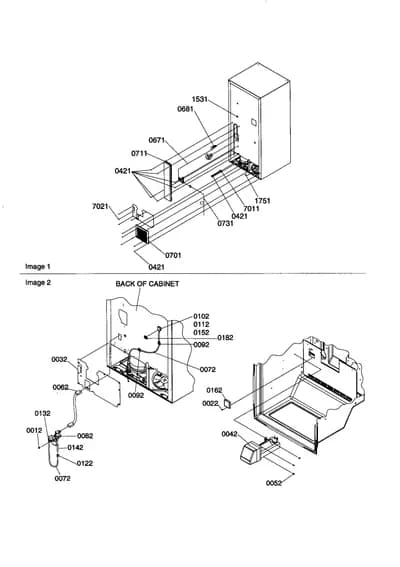

Parts Sections (12)
Diagram

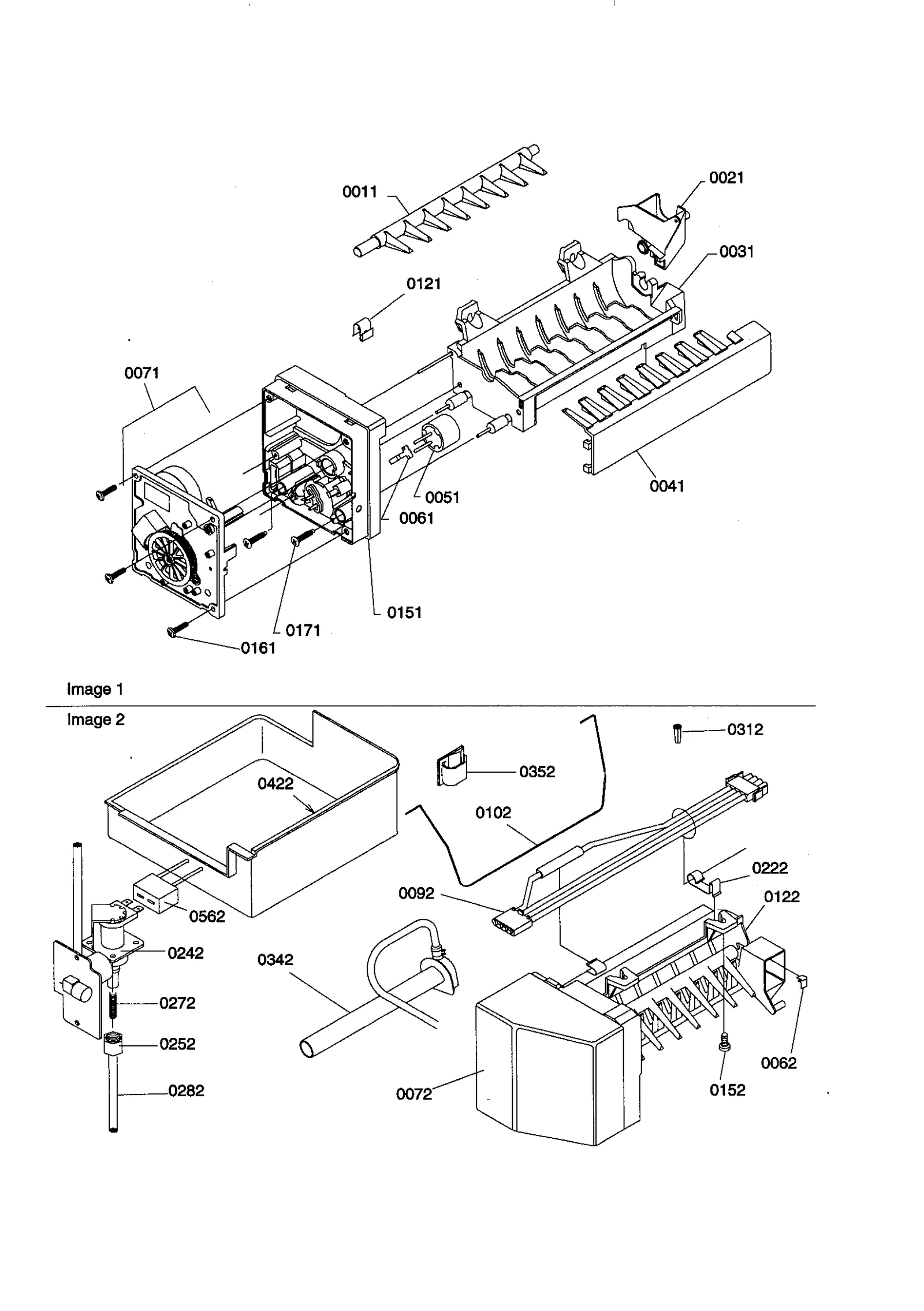

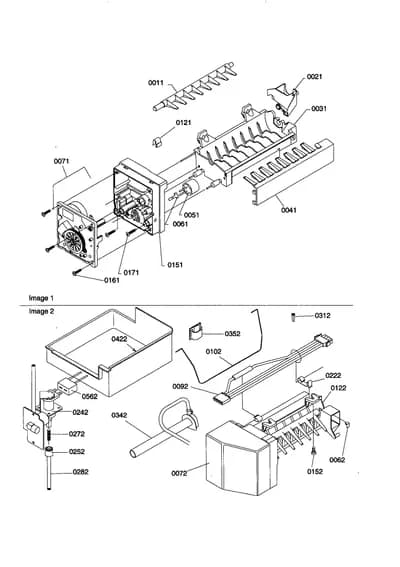

ICE MAKER ASSEMBLY AND PARTS
Parts in ICE MAKER ASSEMBLY AND PARTS
25 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 11 |  | WP627843replaces R0183119 Refrigerator Ejector | $29.33 Part Advantage |
| 21 |  | WP628356replaces R0156839 Refrigerator Cup | $35.80 PartSelect |
| 31 | – | N/P (SEE NOTE) VT MULL-PNT | - |
| 41 |  | WP2182124replaces R0183120 Ice Stripper | $28.80 Parts Dr |
| 61 |  | WP2315522replaces R0191094 Refrigerator Retainer | - |
| 62 | – | B5720302 Refrigerator Clip | - |
| 72 |  | WPW10289690replaces 10519806 Refrigerator Cover | $7.47 PartSelect |
| 92 |  | WPD7813010replaces D7813004 Refrigerator Harness | $21.02 Part Advantage |
| 102 |  | WP67004028replaces 10884401 Arm Shut O | $32.02 Part Advantage |
| 121 |  | WP628379replaces 10319801 Refrigerator Clip | - |
| 122 |  | D7824706Qreplaces D7824705 Refrigerator Ice Maker | $58.10 Part Advantage |
| 151 |  | WP2195914replaces R0183121 Refrigerator Support | $41.03 Parts Dr |
| 152 |  | WP98165replaces M0211018 Screw | $7.47 PartSelect |
| 161 | – | R0186041 Refrigerator Screw | - |
| 171 | – | R0186040 Refrigerator Screw | - |
| 222 | – | 10526701 Refrigerator Clamp | - |
| 242 |  | W10833899replaces 10524606 Refrigerator Water Valve | $128.12 Amazon |
| 252 |  | WP627018replaces M0753001 Fitting | $4.20 Part Advantage |
| 272 |  | Spring | Discontinued |
| 282 |  | WPB5705307replaces B5705308 Refrigerator Dispenser Water Tube | $6.76 Part Advantage |
| 312 |  | WPA3223101replaces A3223101 Insert Tube | $10.95 Parts Dr |
| 342 |  | W11176463replaces 10463201 Refrigerator Elbow | $42.61 Part Advantage |
| 352 |  | WPM0104106replaces M0104106 Cord Clip | $3.59 Parts Dr |
| 422 |  | WP67001255replaces 10476207 Refrigerator Ice Bin | $90.10 Parts Dr |
| 562 | | 10525901NLA Refrigerator Harness | Discontinued |
