Model
Kenmore 665.17014400
Dishwasher (Kenmore 66517014400)
Parts Sections (11)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
665.17014400Dishwasher (Kenmore 66517014400)
11 diagrams154 parts
Parts Sections (11)
Diagram

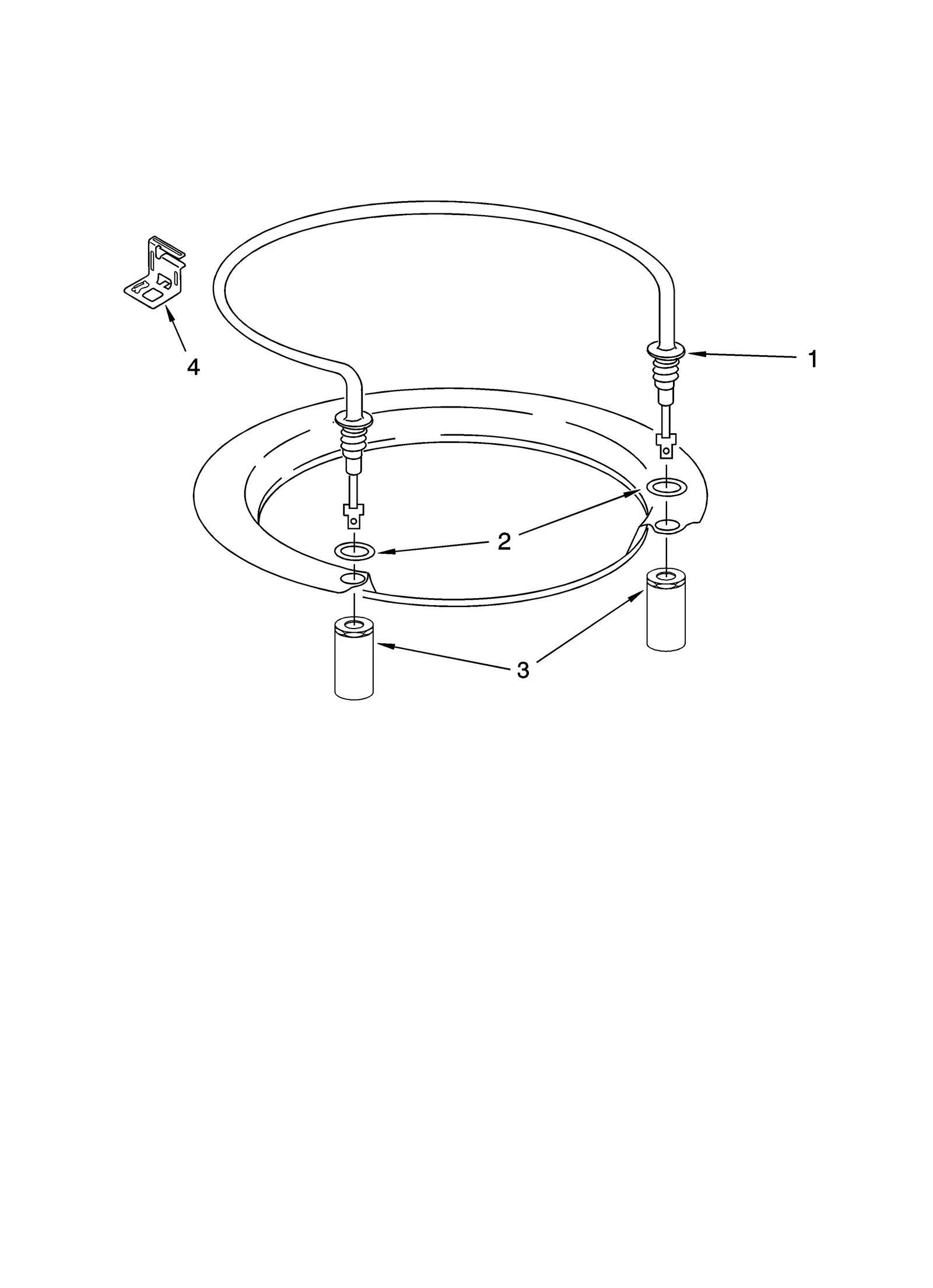

HEATER PARTS
Parts in HEATER PARTS
5 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | W10518394replaces 8572861 Dishwasher Heater | $23.62 Part Advantage |
| 2 |  | WP717273replaces 717273 Dishwasher Heating Element Rubber Washer | $2.41 Part Advantage |
| 3 |  | WPW10477552replaces 8268548 Dishwasher Terminal Nut | $3.38 Part Advantage |
| 4 |  | W11027055replaces 8269262 Dishwasher Heater Support Bracket | $13.97 Parts Dr |
| 4A | – | N/P (SEE NOTE) BRACKET - SWITCH MOUNTING | - |
