Model
Kenmore 665.17022400
Dishwasher (Kenmore 66517022400)
Parts Sections (11)

How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
665.17022400Dishwasher (Kenmore 66517022400)
11 diagrams160 parts
Parts Sections (11)
Diagram

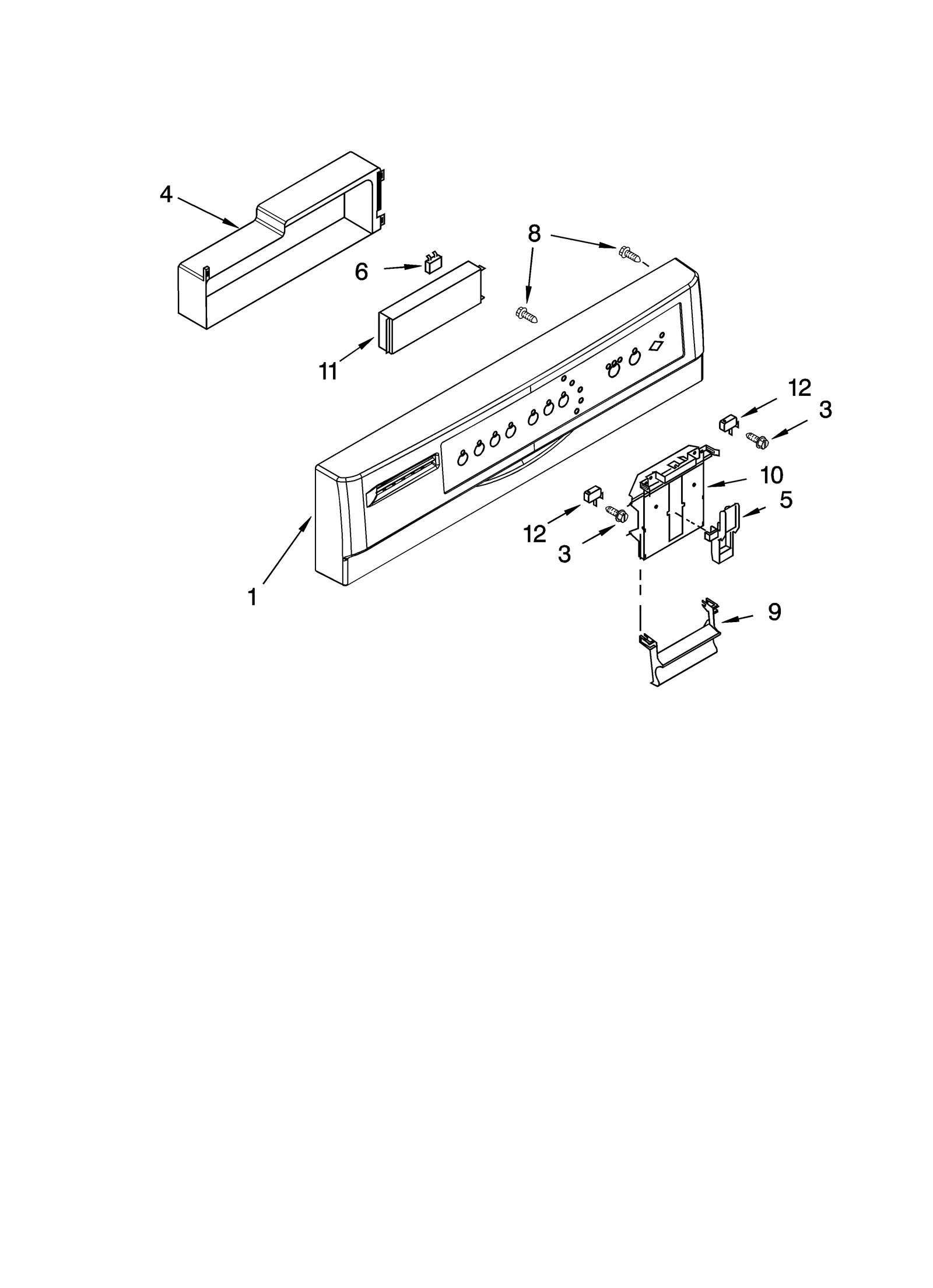

CONTROL PANEL PARTS

Parts in CONTROL PANEL PARTS
14 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 8558917 Control Panel (Black) | - |
| 1A | – | 8558918 Control Panel (White) | - |
| 1B | – | 8558919 Control Panel (Off-White) | - |
| 3 | ![]() | WP3400412replaces 3400412 Dishwasher Screw | $2.30 Part Advantage |
| 4 | – | 8283512 Cover | - |
| 5 | WP8524471replaces 8524471 Dishwasher Door Latch Actuator | $22.46 Part Advantage | |
| 6 | 8193762replaces 8269213 Fuse | $29.58 Part Advantage | |
| 8 | WPW10348409replaces 3369051 Dishwasher Screw | $2.30 Part Advantage | |
| 9 | 8269632NLA Dishwasher Handle (Black) | Discontinued | |
| 9A | 8269633NLA Handle (White) | Discontinued | |
| 9B | 8269635NLA Handle (Bisque) | Discontinued | |
| 10 | 8193882replaces 8524476 Latch Bolt | $39.59 Part Advantage | |
| 11 | – | 8564544 Dishwasher Electronic Control | - |
| 12 | WP8269209replaces 8269209 Dishwasher Door Switch | $14.29 Part Advantage |
