Model
Kenmore 665.17579201
Undercounter Dishwasher (Kenmore 66517579201)
Parts Sections (12)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
665.17579201Undercounter Dishwasher (Kenmore 66517579201)
12 diagrams182 parts
Parts Sections (12)
Diagram

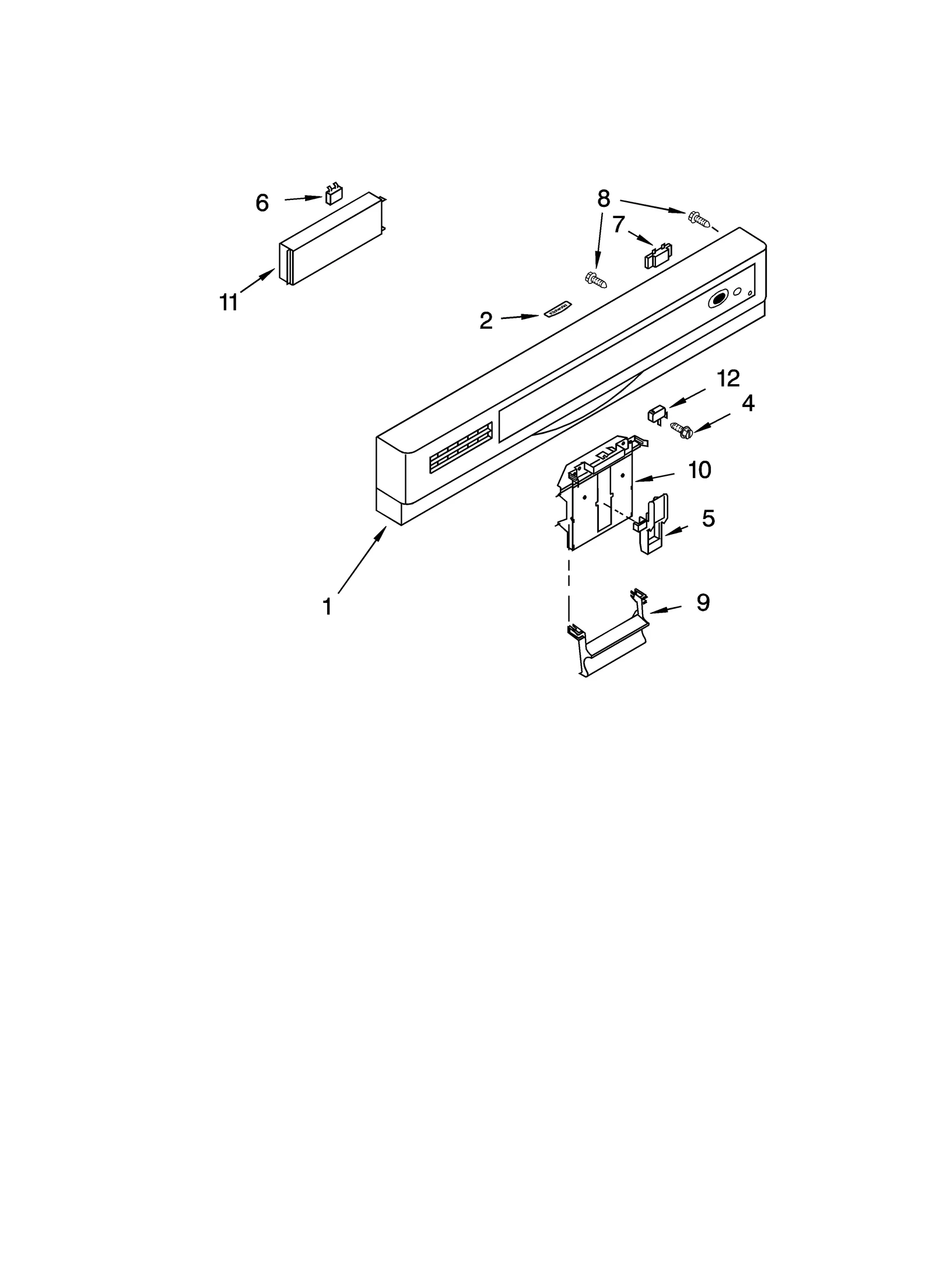

CONTROL PANEL PARTS
Parts in CONTROL PANEL PARTS
15 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 8538412 Electronic Control | - |
| 1A | – | 8538413 Electronic Control | - |
| 1B | – | 8538414 Electronic Control | - |
| 2 |  | WP9744397replaces 9744397 Medallion | - |
| 4 |  | WP3400412replaces 3400412 Dishwasher Screw | $2.30 Part Advantage |
| 5 |  | WP8524471replaces 8524471 Dishwasher Door Latch Actuator | $22.46 Part Advantage |
| 6 |  | 8193762replaces 8269213 Fuse | $29.58 Part Advantage |
| 7 | | Dishwasher Timer Display Board | - |
| 8 |  | WPW10348409replaces 3369051 Dishwasher Screw | $2.30 Part Advantage |
| 9 | | 8269632NLA Dishwasher Handle (Black) | Discontinued |
| 9A | | 8269633NLA Handle (White) | Discontinued |
| 9B | | 8269635NLA Handle (Bisque) | Discontinued |
| 10 |  | 8193882replaces 8524476 Latch Bolt | $39.59 Part Advantage |
| 11 | | 8534866NLA Microcomputer | Discontinued |
| 12 |  | WP8269209replaces 8269209 Dishwasher Door Switch | $14.29 Part Advantage |
