Model
Kenmore 66513003N510
Dishwasher (Kenmore 66513003N510)
Parts Sections (10)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
66513003N510Dishwasher (Kenmore 66513003N510)
10 diagrams134 parts
Parts Sections (10)
Diagram

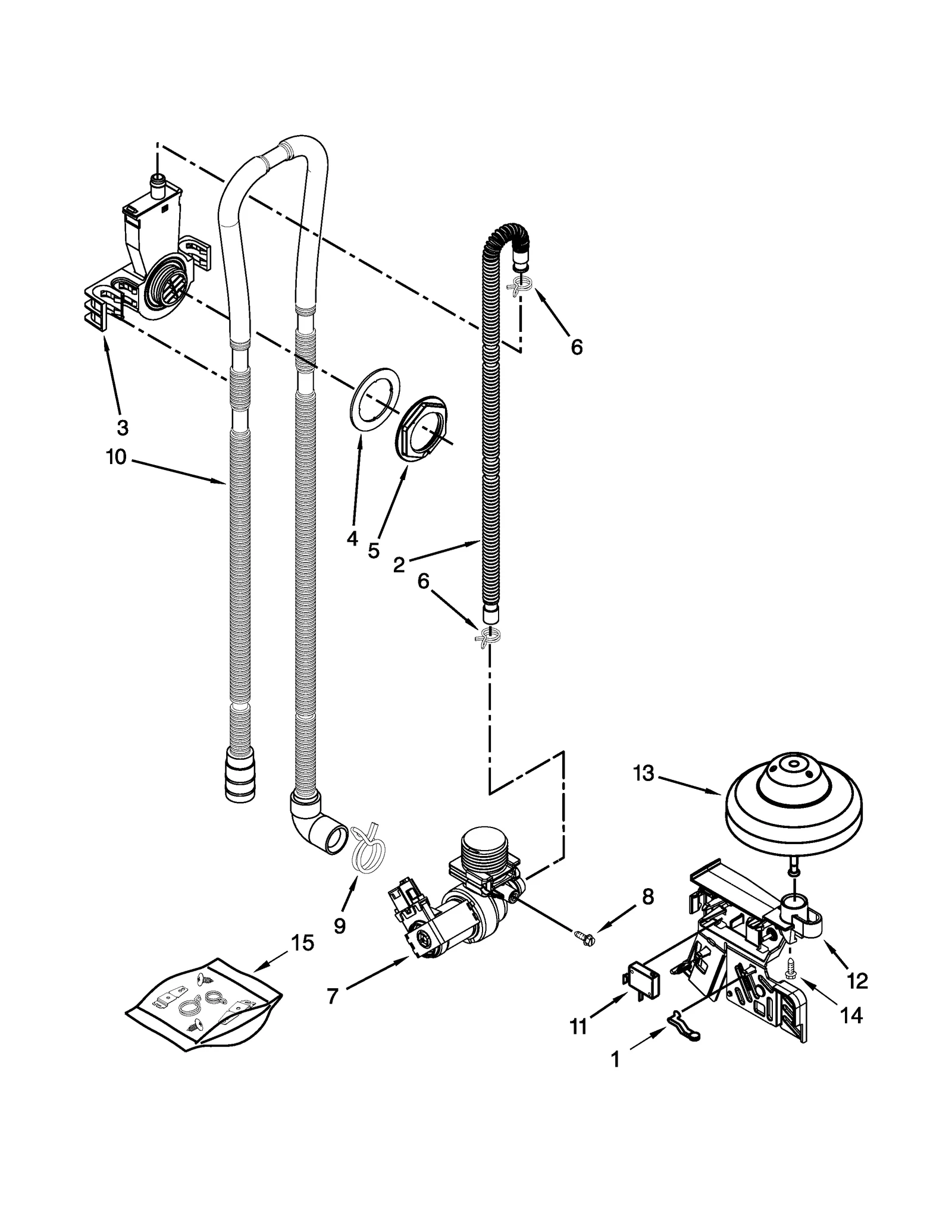

FILL, DRAIN AND OVERFILL PARTS
Parts in FILL, DRAIN AND OVERFILL PARTS
15 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | WPW10195037replaces W10195037 Dishwasher Float Switch Lever | $3.29 Part Advantage |
| 2 |  | W10878507replaces W10769066 Hose | $34.90 Part Advantage |
| 3 |  | WPW10195536replaces W10195536 Dishwasher Water Inlet Port | $37.56 Part Advantage |
| 4 |  | WP8531323replaces 8531323 Dishwasher Water Inlet Port Gasket | $11.93 Part Advantage |
| 5 |  | WPW10508676replaces W10508676 Nut Tube | $14.62 Parts Dr |
| 6 |  | WP596669replaces 371505 Clamp | $2.30 Part Advantage |
| 7 |  | W11175771replaces W10327250 Dishwasher Water Inlet Valve | $37.49 Part Advantage |
| 8 |  | WP304231replaces 304231 Dishwasher Screw | $5.00 RepairClinic |
| 9 |  | WP285655replaces 370445 Dishwasher Hose Clamp | $3.38 Part Advantage |
| 10 |  | WPW10545278replaces W10545278 Dishwasher Drain Hose | $37.35 Part Advantage |
| 11 |  | WPW10195039replaces W10195039 Dishwasher Float Switch | $27.31 Part Advantage |
| 12 |  | WPW10316267replaces W10316267 Standpipe | $9.89 Part Advantage |
| 13 |  | WPW10345285replaces W10345285 Dishwasher Float Assembly | $31.12 Part Advantage |
| 14 |  | WP3400892replaces 3400892 Dishwasher Screw | $3.72 Parts Dr |
| 15 |  | WPW10292170replaces W10292170 Dishwasher Installation Hardware Kit | $33.43 Part Advantage |
