Model
Kenmore 66513012K111
Undercounter Dishwasher (Kenmore 66513012K111)
Parts Sections (11)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
66513012K111Undercounter Dishwasher (Kenmore 66513012K111)
11 diagrams135 parts
Parts Sections (11)
Diagram

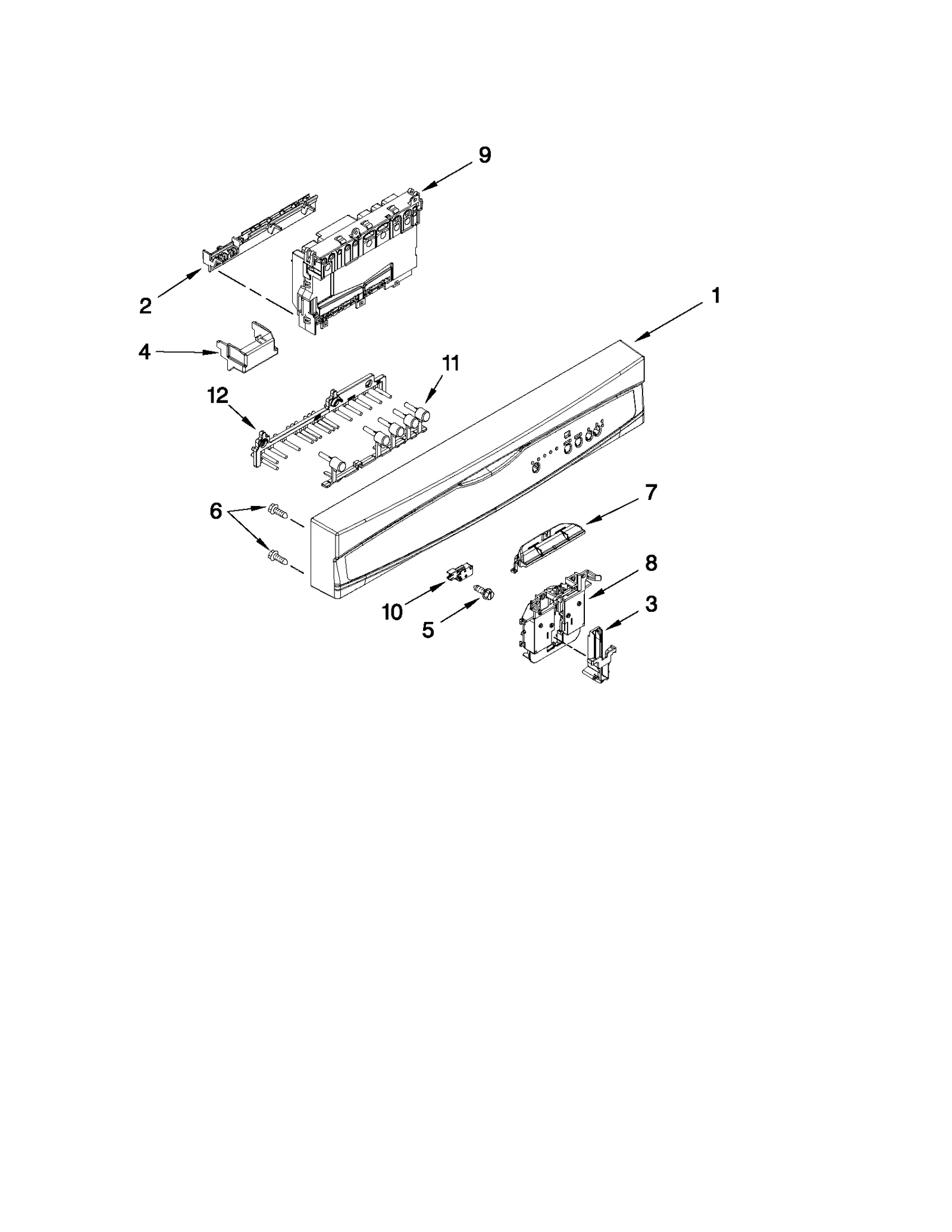

CONTROL PANEL AND LATCH PARTS
Parts in CONTROL PANEL AND LATCH PARTS
16 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | WPW10350336replaces W10428187 Control Panel | - |
| 1A |  | W10350338replaces W10428186 Control Panel | - |
| 1B | – | W10428185 Control Panel | - |
| 2 |  | WPW10372484replaces W10372484 Brace | - |
| 3 |  | WP8524471replaces 8524471 Dishwasher Door Latch Actuator | $22.46 Part Advantage |
| 4 |  | W10783730replaces W10401190 Dishwasher Control Board Connector Cover | $18.88 RepairClinic |
| 5 |  | WP3400412replaces 3400412 Dishwasher Screw | $2.30 Part Advantage |
| 6 |  | WPW10348413replaces W10348413 Dishwasher Screw | $2.66 Part Advantage |
| 7 |  | WP8269323replaces 8269323 Dishwasher Door Handle | $64.70 ApplianceParts Pro |
| 7A | | WP8269323replaces 8269324 Handle (White) | $64.70 ApplianceParts Pro |
| 7B | | WP8269323replaces 8269326 Handle (Off-White) | $64.70 ApplianceParts Pro |
| 8 |  | WPW10274884replaces W10274884 Dishwasher Door Latch | $41.03 Part Advantage |
| 9 | | Electronic Control | Discontinued |
| 10 |  | WPW10274880replaces W10274880 Dishwasher Door Switch | $26.69 Part Advantage |
| 11 |  | Dishwasher Control Panel Button Set | - |
| 12 | | Dishwasher Valve Guide | - |
