Model
Kenmore 66513023K112
Undercounter Dishwasher (Kenmore 66513023K112)
Parts Sections (12)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
66513023K112Undercounter Dishwasher (Kenmore 66513023K112)
12 diagrams118 parts
Parts Sections (12)
Diagram

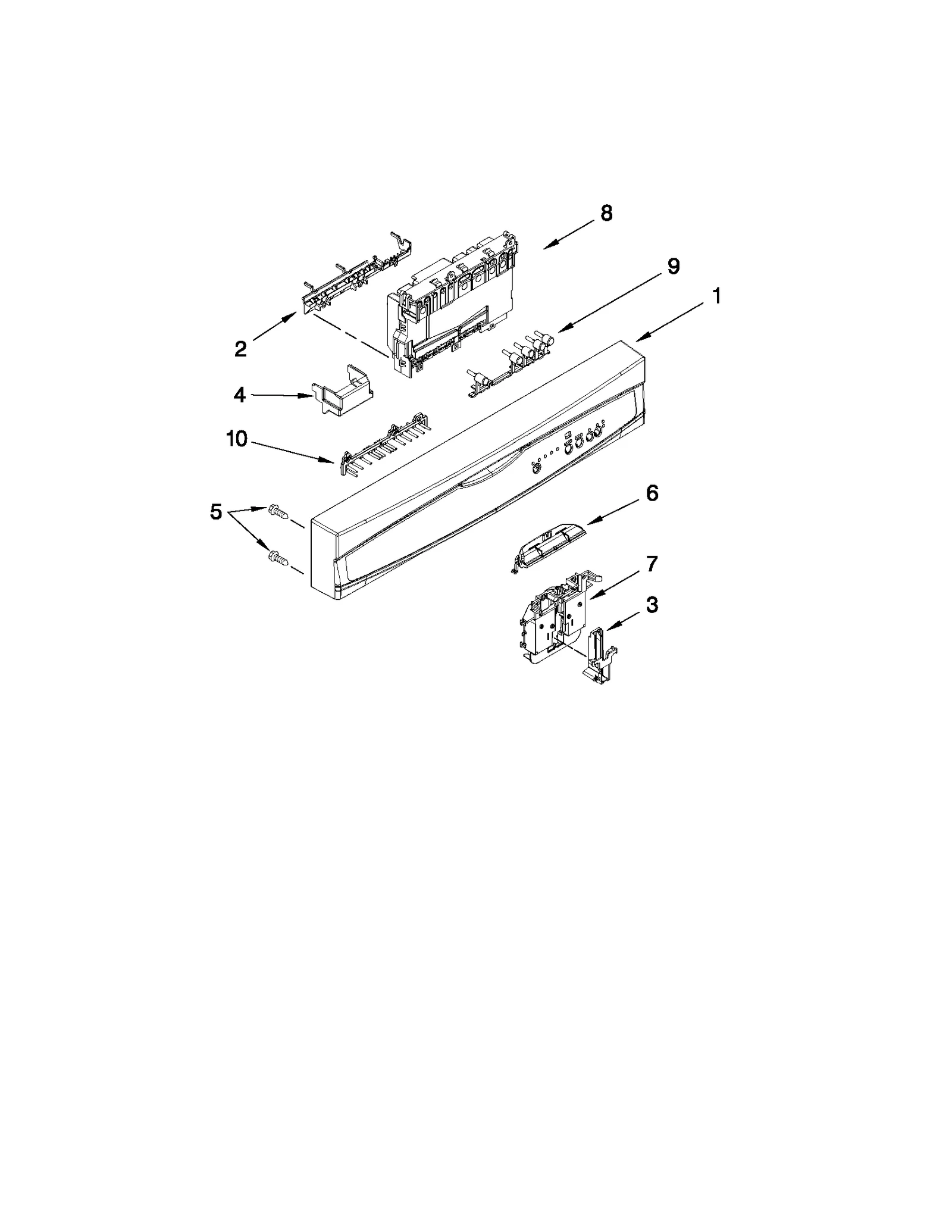

CONTROL PANEL AND LATCH PARTS
Parts in CONTROL PANEL AND LATCH PARTS
10 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | WPW10350336replaces W10428187 Control Panel | - |
| 2 |  | WPW10372484replaces W10372484 Brace | - |
| 3 |  | WP8524471replaces 8524471 Dishwasher Door Latch Actuator | $22.46 Part Advantage |
| 4 |  | W10783730replaces W10401190 Dishwasher Control Board Connector Cover | $18.88 RepairClinic |
| 5 |  | WPW10348413replaces W10348413 Dishwasher Screw | $2.66 Part Advantage |
| 6 |  | WP8269323replaces 8269323 Dishwasher Door Handle | $64.70 ApplianceParts Pro |
| 7 |  | WPW10274884replaces W10274884 Dishwasher Door Latch | $41.03 Part Advantage |
| 8 |  | Electronic Control | Discontinued |
| 9 |  | Dishwasher Control Panel Button Set | - |
| 10 | | Dishwasher Valve Guide | - |
