Model
Kenmore 66513049K113
Undercounter Dishwasher (Kenmore 66513049K113)
Parts Sections (12)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
66513049K113Undercounter Dishwasher (Kenmore 66513049K113)
12 diagrams147 parts
Parts Sections (12)
Diagram

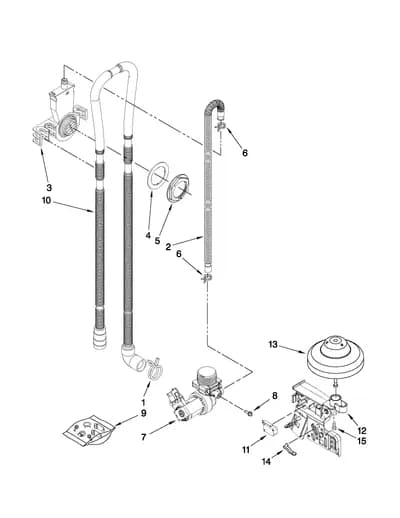

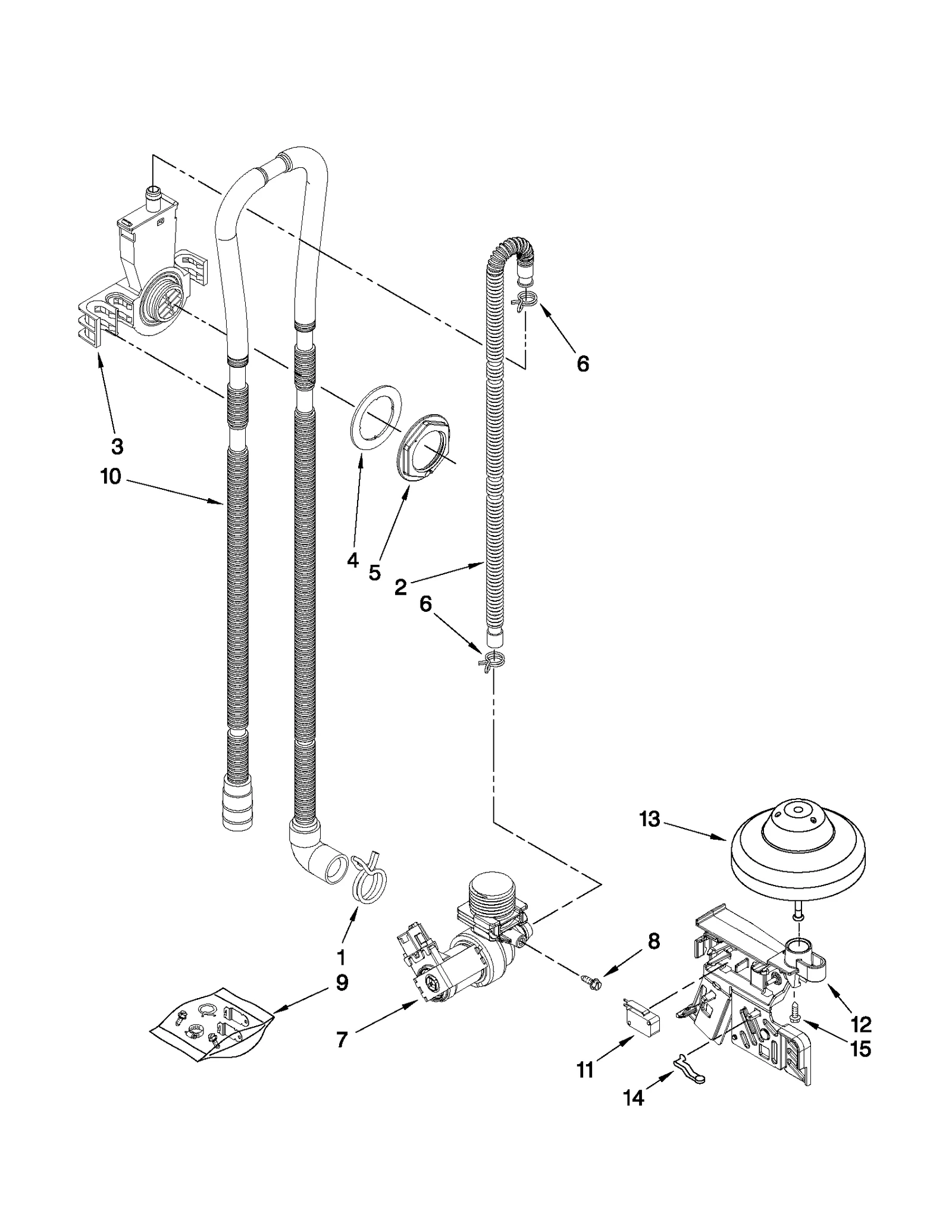

FILL, DRAIN, AND OVERFILL PARTS
Parts in FILL, DRAIN, AND OVERFILL PARTS
15 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | WP8269146replaces 8269146 Dishwasher Hose Clamp | $9.57 ApplianceParts Pro |
| 2 |  | W10878507replaces 8531412 Dishwasher Water Inlet Tubing | $34.90 Part Advantage |
| 3 |  | WPW10195536replaces W10195536 Dishwasher Water Inlet Port | $37.56 Part Advantage |
| 4 |  | WP8531323replaces 8531323 Dishwasher Water Inlet Port Gasket | $11.93 Part Advantage |
| 5 |  | WPW10508676replaces 8531327 Nut Tube | $14.62 Parts Dr |
| 6 |  | WP596669replaces 371505 Clamp | $2.30 Part Advantage |

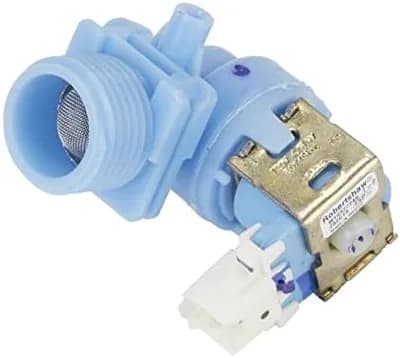

| 7 |  | WPW10327249replaces W10316814 Dishwasher Water Inlet Valve | $31.44 Part Advantage |
| 8 |  | WP3400014replaces 3400014 Dishwasher Screw | $5.00 RepairClinic |
| 9 |  | WPW10292170replaces W10292170 Dishwasher Installation Hardware Kit | $33.43 Part Advantage |
| 10 |  | WPW10545278replaces W10137608 Dishwasher Drain Hose | $37.35 Part Advantage |
| 11 |  | WPW10195039replaces W10195039 Dishwasher Float Switch | $27.31 Part Advantage |
| 12 |  | WPW10316267replaces W10316267 Standpipe | $9.89 Part Advantage |
| 13 |  | WPW10346525replaces W10346525 Float Assembly | $34.03 Parts Dr |
| 14 |  | WPW10195037replaces W10195037 Dishwasher Float Switch Lever | $3.29 Part Advantage |
| 15 |  | WP304231replaces 304231 Dishwasher Screw | $5.00 RepairClinic |
