Model
Kenmore 66513204N410
Dishwasher (Kenmore 66513204N410)
Parts Sections (10)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
66513204N410Dishwasher (Kenmore 66513204N410)
10 diagrams151 parts
Parts Sections (10)
Diagram

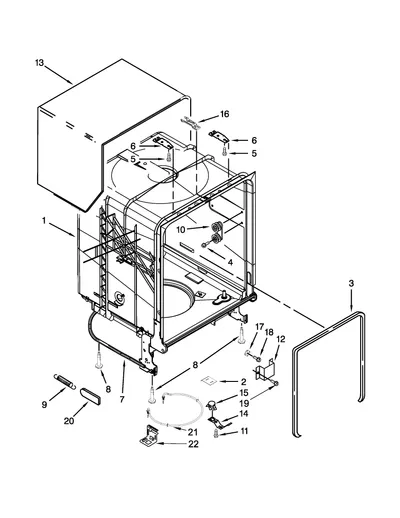

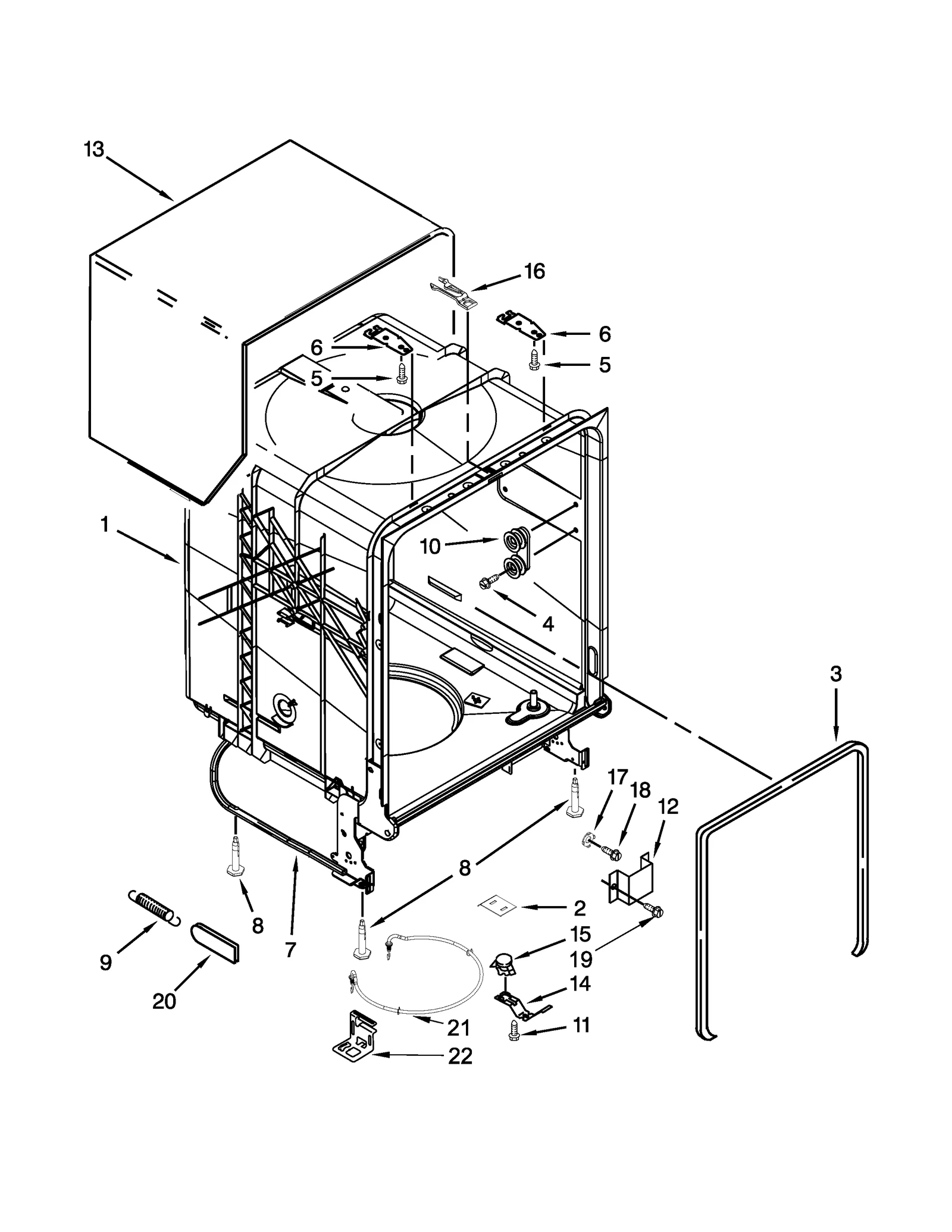

TUB AND FRAME PARTS
Parts in TUB AND FRAME PARTS
22 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | W11513977replaces W10349289 Dishwasher Tub | $350.63 PartSelect |
| 2 |  | Dishwasher Thermostat Shield | $23.61 ApplianceParts Pro |
| 3 |  | W11768590replaces W10524469 Dishwasher Tub Gasket | $12.02 Part Advantage |
| 4 |  | W10817436replaces W10341745 Dishwasher Screw | $4.14 Parts Dr |
| 5 |  | WP308685replaces 3367670 SCREW | $2.30 Part Advantage |
| 6 |  | WP8269145replaces 8269145 Dishwasher Mounting Bracket | $5.64 Part Advantage |
| 7 | | W11680335replaces W10304231 Dishwasher Bottom Support | $36.06 Parts Dr |
| 8 |  | 8193716replaces W10619352 Leveling Leg | $32.19 Parts Dr |
| 9 |  | WPW10337934replaces W10337934 Dishwasher Door Spring | $10.33 Part Advantage |
| 10 |  | WP8575897replaces 8575897 Dishwasher Dishrack Wheel | $4.17 Part Advantage |
| 11 |  | WP304231replaces 304231 Dishwasher Screw | $5.00 RepairClinic |
| 12 |  | WP8268991replaces 8268991 Dishwasher Terminal Block Cover | $32.95 ApplianceParts Pro |
| 13 |  | W11086533replaces 8573240 Dishwasher Tub Sound Shield | $12.94 Part Advantage |
| 14 |  | Dishwasher Thermostat Retainer | $4.89 RepairClinic |
| 15 |  | WP661566replaces 3371618 Thermostat | $13.21 Part Advantage |
| 16 |  | WPW10544004replaces W10544004 Dishwasher Door Latch Strike | $29.96 Part Advantage |
| 17 |  | WP3378128replaces 3378128 Dishwasher Pronged Washer | $7.43 ApplianceParts Pro |
| 18 |  | WP3400014replaces 3400014 Dishwasher Screw | $5.00 RepairClinic |
| 19 |  | WPW10277003replaces W10277003 Dishwasher Screw | $2.30 Part Advantage |
| 20 |  | WP8268990replaces 8268990 Dishwasher Door Spring Bushing | $44.07 Part Advantage |
| 21 |  | W10518394replaces W10441445 Element Assembly | $23.62 Part Advantage |
| 22 |  | W11027055replaces 8269262 Dishwasher Heater Support Bracket | $13.97 Parts Dr |
