Model
Kenmore 66513222N414
Dishwasher (Kenmore 66513222N414)
Parts Sections (10)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
66513222N414Dishwasher (Kenmore 66513222N414)
10 diagrams154 parts
Parts Sections (10)
Diagram

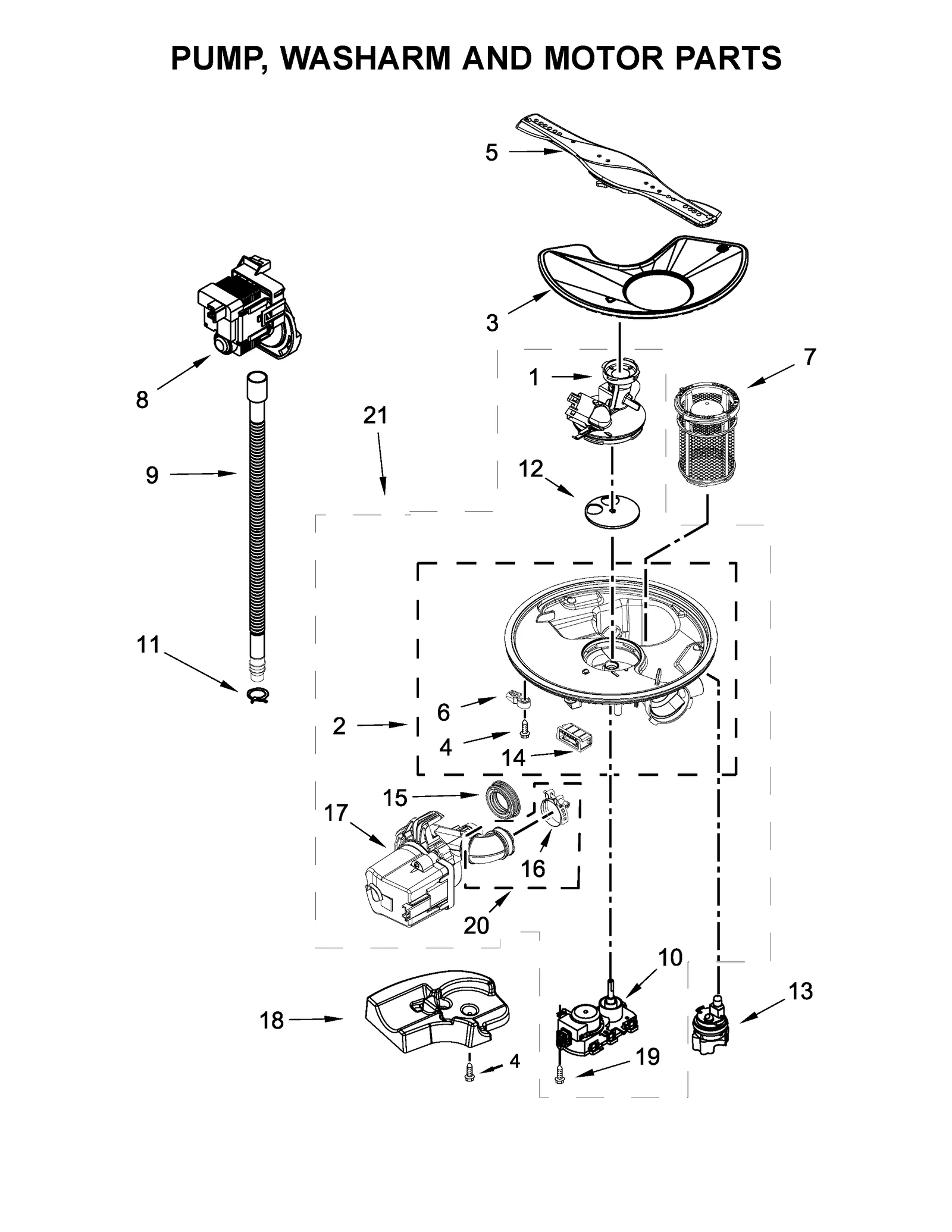

PUMP, WASHARM AND MOTOR PARTS
Parts in PUMP, WASHARM AND MOTOR PARTS
21 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | W11573369replaces W10500299 Dishwasher Pump Outlet and Seal | $12.29 Parts Dr |
| 2 |  | WPW10455268replaces W10455268 Dishwasher Sump and Seal Assembly | $72.65 Part Advantage |
| 3 |  | WPW10463906replaces W10463906 Dishwasher Filter | $12.38 Part Advantage |
| 4 |  | WPW10348407replaces W10348407 Dishwasher Screw | $5.95 ApplianceParts Pro |
| 5 |  | WPW10491331replaces W10500354 Dishwasher Spray Arm, Lower | $43.89 Part Advantage |
| 6 |  | WPW10372113replaces W10372113 Dishwasher Sump Tab | $11.33 Parts Dr |
| 7 |  | W10872845replaces W10789806 FILTER CUP A | $27.41 Part Advantage |
| 8 |  | W10876537replaces W10724439 Dishwasher Drain Pump | $49.07 Part Advantage |
| 9 |  | 8269144Areplaces 8269144 Dishwasher Drain Hose | $10.57 Part Advantage |
| 10 |  | W10537869replaces W10849439 Dishwasher Diverter Motor | $41.24 Part Advantage |
| 11 |  | WP285655replaces 370445 Dishwasher Hose Clamp | $3.38 Part Advantage |
| 12 |  | WPW10476221replaces W10476221 Dishwasher Pump Diverter Disc | $21.45 PartSelect |
| 13 |  | W11084121replaces W10723295 Owi-global 2 | $31.64 Part Advantage |
| 14 |  | W11243394replaces W10195086 Dishwasher Sump Motor Isolator | $8.95 ApplianceParts Pro |
| 15 |  | WPW10538166replaces W10538166 Dishwasher Pump Grommet | $12.94 Part Advantage |
| 16 |  | W10789434replaces W10169167 Dishwasher Hose Clamp | $5.34 Amazon |
| 17 |  | W11612327replaces W10854710 Dishwasher Pump Motor | $54.75 Part Advantage |
| 18 |  | W10350335replaces W10300776 Dishwasher Sump Damper | - |
| 19 |  | WP9741232replaces 9741232 Dishwasher Screw | $2.30 Part Advantage |
| 20 |  | Dishwasher Circulation Pump-to-Sump Hose | $46.60 Part Advantage |
| 21 |  | W11087376replaces W10917114 Sump and Motor Assembly | $161.54 Parts Dr |
