Model
Kenmore 66513263K110
Undercounter Dishwasher (Kenmore 66513263K110)
Parts Sections (12)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
66513263K110Undercounter Dishwasher (Kenmore 66513263K110)
12 diagrams157 parts
Parts Sections (12)
Diagram

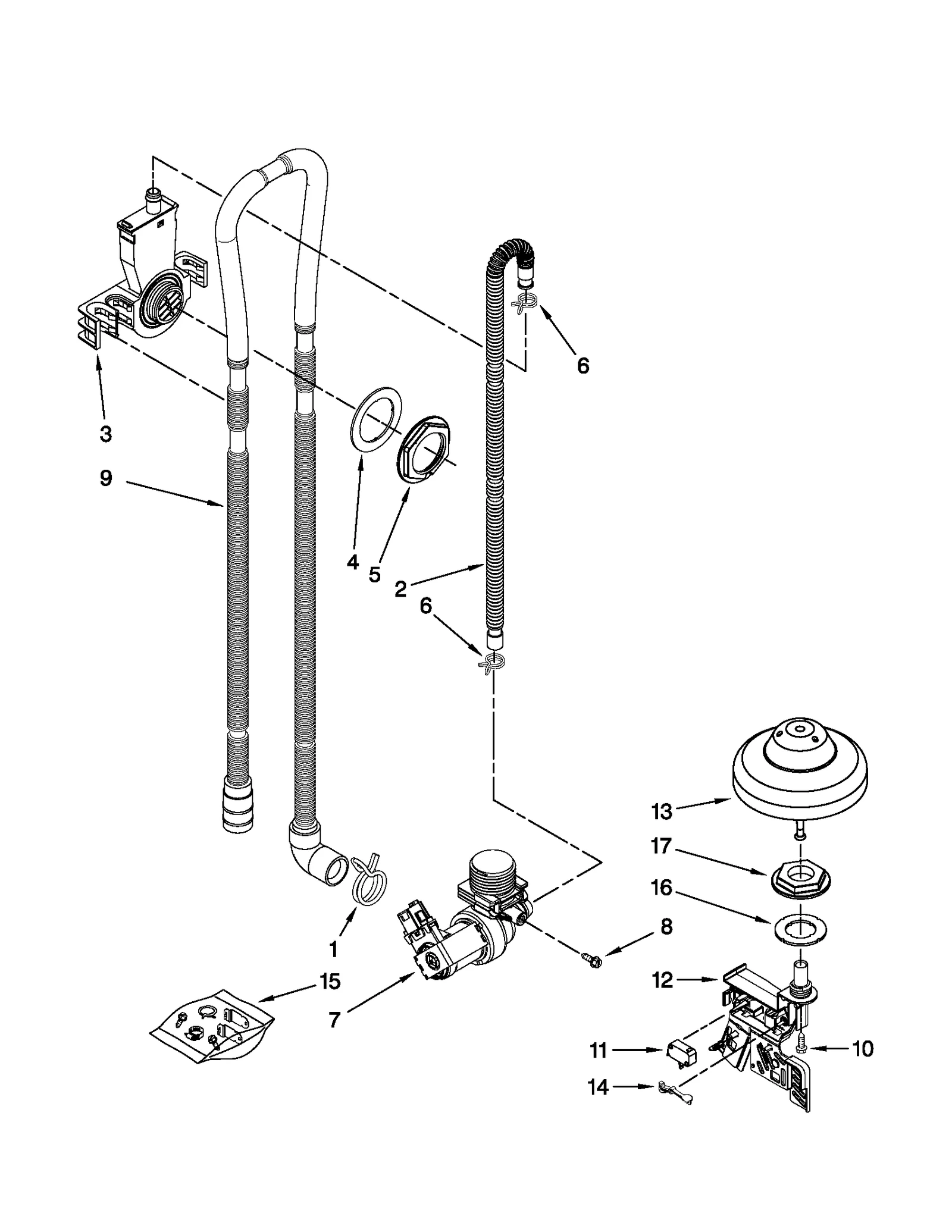

FILL, DRAIN AND OVERFILL PARTS
Parts in FILL, DRAIN AND OVERFILL PARTS
16 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | WP596669replaces 371505 Clamp | $2.30 Part Advantage |
| 2 |  | W10878507replaces 8531412 Dishwasher Water Inlet Tubing | $34.90 Part Advantage |
| 3 |  | WPW10195536replaces W10195536 Dishwasher Water Inlet Port | $37.56 Part Advantage |
| 4 |  | WP8531323replaces 8531323 Dishwasher Water Inlet Port Gasket | $11.93 Part Advantage |
| 5 |  | WPW10213825replaces W10213825 Dishwasher Water Inlet Port Nut | $9.57 ApplianceParts Pro |
| 7 |  | W11175771replaces W10195047 Dishwasher Water Inlet Valve | $37.49 Part Advantage |
| 8 |  | WP489069replaces 304392 Appliance Screw | $2.30 Part Advantage |
| 9 |  | WPW10545278replaces W10195750 Dishwasher Drain Hose | $37.35 Part Advantage |
| 10 |  | WP304231replaces 304231 Dishwasher Screw | $5.00 RepairClinic |
| 11 |  | WPW10195039replaces W10195039 Dishwasher Float Switch | $27.31 Part Advantage |
| 12 |  | W10873429replaces W10195035 Dishwasher Overfill Standpipe Housing | $11.48 Part Advantage |
| 13 |  | WPW10195036replaces W10195036 Dishwasher Float Assembly | $30.50 Part Advantage |
| 14 |  | WPW10195037replaces W10195037 Dishwasher Float Switch Lever | $3.29 Part Advantage |
| 15 |  | WPW10292152replaces W10292152 Dishwasher Hardware Bag | $16.86 Part Advantage |
| 16 |  | WP8531743replaces 8531743 Dishwasher Float Switch Base Gasket | $19.46 Part Advantage |
| 17 |  | WPW10195038replaces W10195038 Dishwasher Float Switch Base Lock Nut | $3.38 Part Advantage |
