Model
Kenmore 66513489K900
Dishwasher (Kenmore 66513489K900)
Parts Sections (11)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
66513489K900Dishwasher (Kenmore 66513489K900)
11 diagrams171 parts
Parts Sections (11)
Diagram

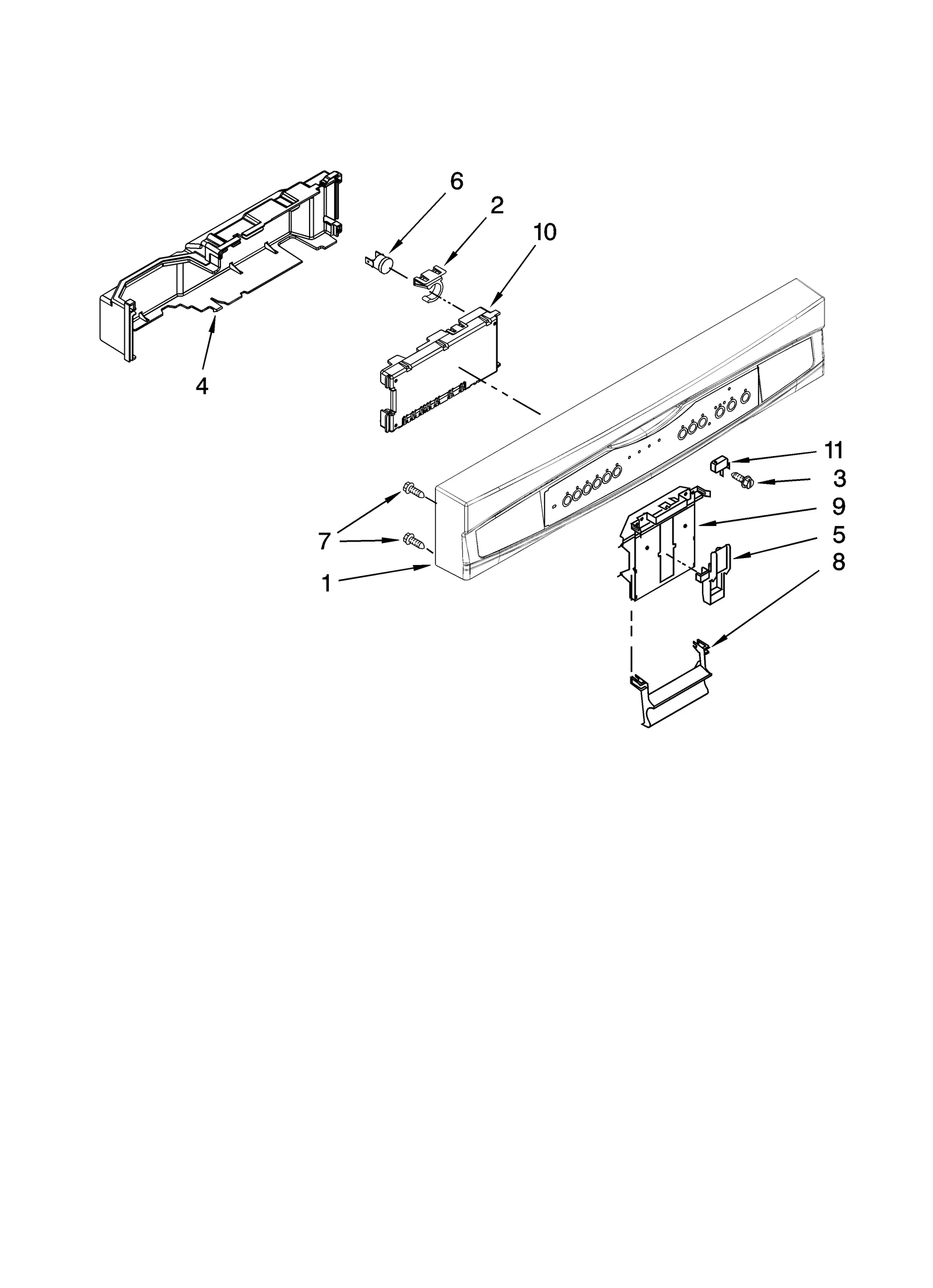

CONTROL PANEL PARTS
Parts in CONTROL PANEL PARTS
15 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|

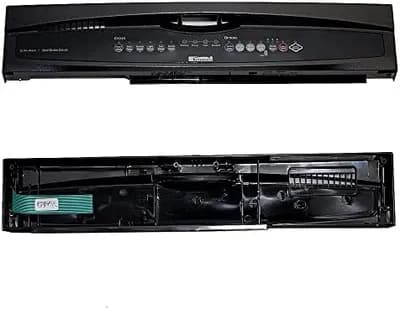

| 1 |  | WP8558208replaces W10082675 Control Panel (Black) | $131.53 Part Advantage |
| 1A |  | WP8558209replaces W10082676 Control Panel (White) | $203.49 ApplianceParts Pro |
| 1B |  | W10082677NLA Control Panel (Off-White) | Discontinued |
| 2 | | 8546546NLA Clip | Discontinued |
| 3 |  | WP3400412replaces 3400412 Dishwasher Screw | $2.30 Part Advantage |
| 4 | | W10158350NLA Cover | Discontinued |
| 5 |  | WP8524471replaces 8524471 Dishwasher Door Latch Actuator | $22.46 Part Advantage |
| 6 |  | W10258275replaces 661663 Fuse | $14.65 Part Advantage |
| 7 |  | WPW10348409replaces 3369051 Dishwasher Screw | $2.30 Part Advantage |
| 8 |  | WP8269323replaces 8269323 Dishwasher Door Handle | $64.70 ApplianceParts Pro |
| 8A | | WP8269323replaces 8269324 Handle (White) | $64.70 ApplianceParts Pro |
| 8B | | WP8269323replaces 8269326 Handle (Off-White) | $64.70 ApplianceParts Pro |
| 9 |  | 8193882replaces 8524476 Latch Bolt | $39.59 Part Advantage |

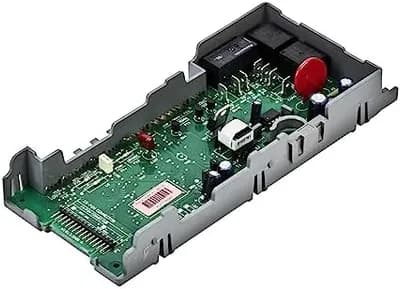

| 10 |  | WPW10084141replaces W10084141 Dishwasher Electronic Control Board | $156.64 PartSelect |
| 11 |  | WP8269209replaces 8269209 Dishwasher Door Switch | $14.29 Part Advantage |
