Model
Kenmore 66514062K012
Undercounter Dishwasher (Kenmore 66514062K012)
Parts Sections (11)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
66514062K012Undercounter Dishwasher (Kenmore 66514062K012)
11 diagrams188 parts
Parts Sections (11)
Diagram

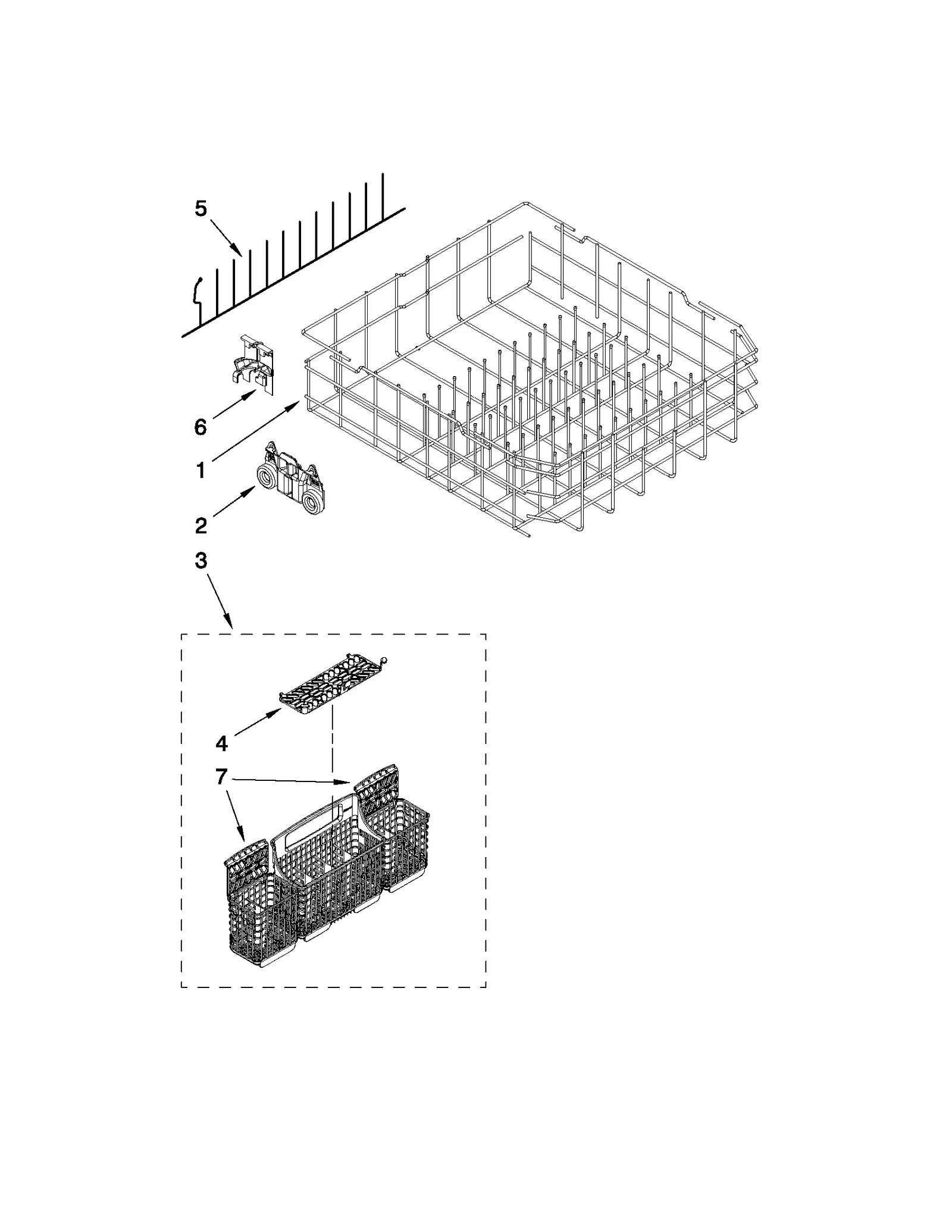

LOWER RACK PARTS
Parts in LOWER RACK PARTS
7 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | W10728159replaces W10082825 Dishwasher Dishrack | $137.01 Part Advantage |
| 2 |  | WPW10195417replaces W10195417 Dishwasher Dishrack Roller Assembly, Lower | $24.59 Part Advantage |
| 3 |  | W10807920replaces W10082877 Dishwasher Silverware Basket | $24.71 Part Advantage |
| 4 |  | WPW10082852replaces W10082852 Lid | - |
| 5 |  | W10728160replaces W10082907 Dishwasher Tine Row | $27.82 Part Advantage |
| 6 |  | WPW10107150replaces W10107150 Dishwasher Dishrack Tine Row Retainer | $5.00 RepairClinic |
| 7 |  | Kenmore Pro Lid | - |
