Model
Kenmore 66514069K010
Undercounter Dishwasher (Kenmore 66514069K010)
Parts Sections (11)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
66514069K010Undercounter Dishwasher (Kenmore 66514069K010)
11 diagrams179 parts
Parts Sections (11)
Diagram

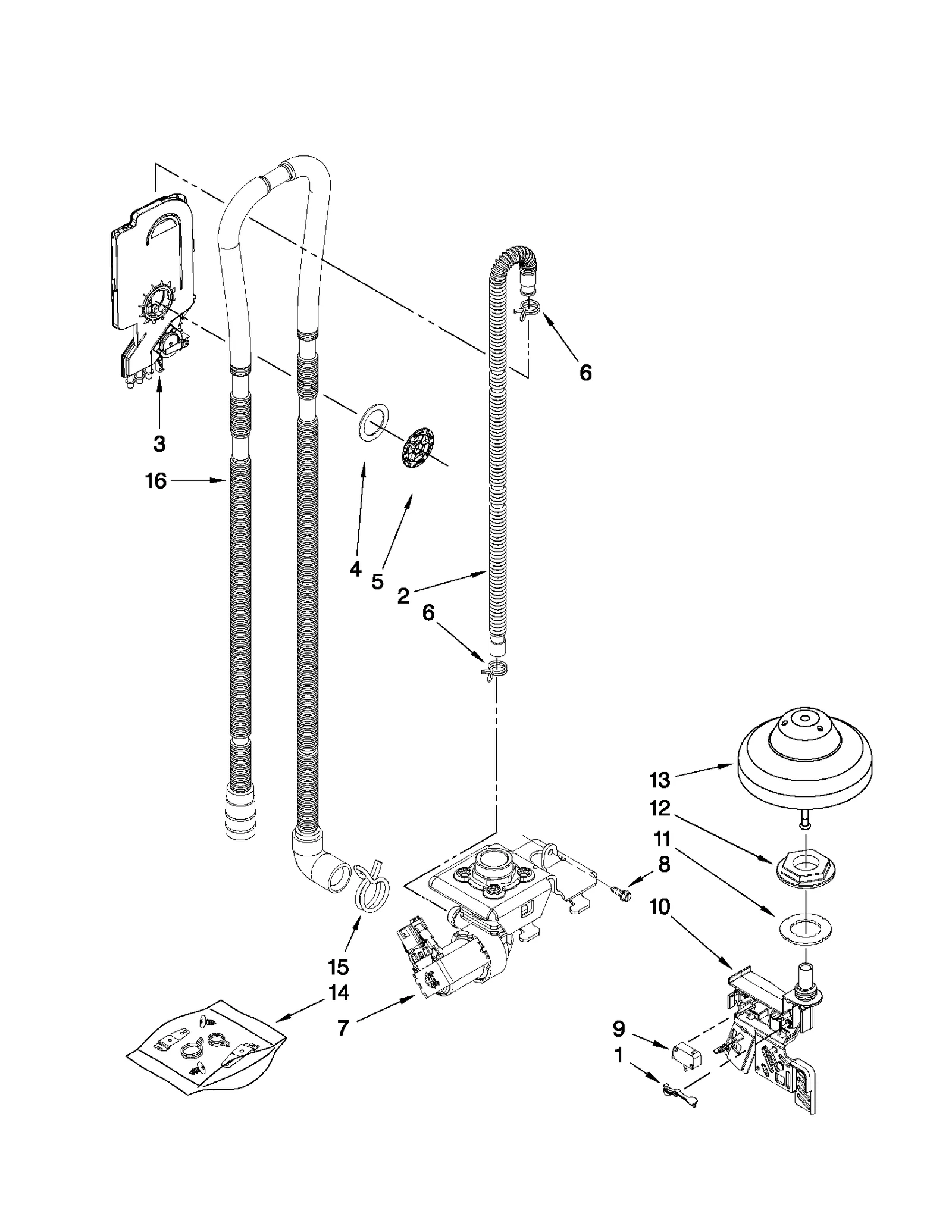

FILL, DRAIN AND OVERFILL PARTS
Parts in FILL, DRAIN AND OVERFILL PARTS
16 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | WPW10195037replaces W10195037 Dishwasher Float Switch Lever | $3.29 Part Advantage |
| 2 |  | W10743461replaces W10321919 Dishwasher Fill Hose | - |
| 3 | | WPW10458714replaces W10362873 Tank Dish | $27.44 RepairClinic |
| 4 | | Gasket | Discontinued |
| 5 | | W11387338replaces W10195786 Nut | $8.95 ApplianceParts Pro |
| 6 |  | WP596669replaces 371505 Clamp | $2.30 Part Advantage |
| 7 |  | W11175767replaces W10365756 Inlet Valve | $68.55 Parts Dr |
| 8 |  | WP90767replaces 3390814 Screw | $2.30 Part Advantage |
| 9 |  | WPW10195039replaces W10195039 Dishwasher Float Switch | $27.31 Part Advantage |
| 10 |  | W10873429replaces W10195035 Dishwasher Overfill Standpipe Housing | $11.48 Part Advantage |
| 11 |  | WP8531743replaces 8531743 Dishwasher Float Switch Base Gasket | $19.46 Part Advantage |
| 12 |  | WPW10195038replaces W10195038 Dishwasher Float Switch Base Lock Nut | $3.38 Part Advantage |
| 13 |  | WPW10195036replaces W10195036 Dishwasher Float Assembly | $30.50 Part Advantage |
| 14 |  | WPW10292152replaces W10332867 Dishwasher Hardware Bag | $16.86 Part Advantage |
| 15 |  | WP285655replaces 370445 Dishwasher Hose Clamp | $3.38 Part Advantage |
| 16 |  | WPW10358302replaces W10358302 Dishwasher Drain Hose | $41.11 Part Advantage |
