Model
Kenmore 66514319N411
Dishwasher (Kenmore 66514319N411)
Parts Sections (10)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
66514319N411Dishwasher (Kenmore 66514319N411)
10 diagrams125 parts
Parts Sections (10)
Diagram

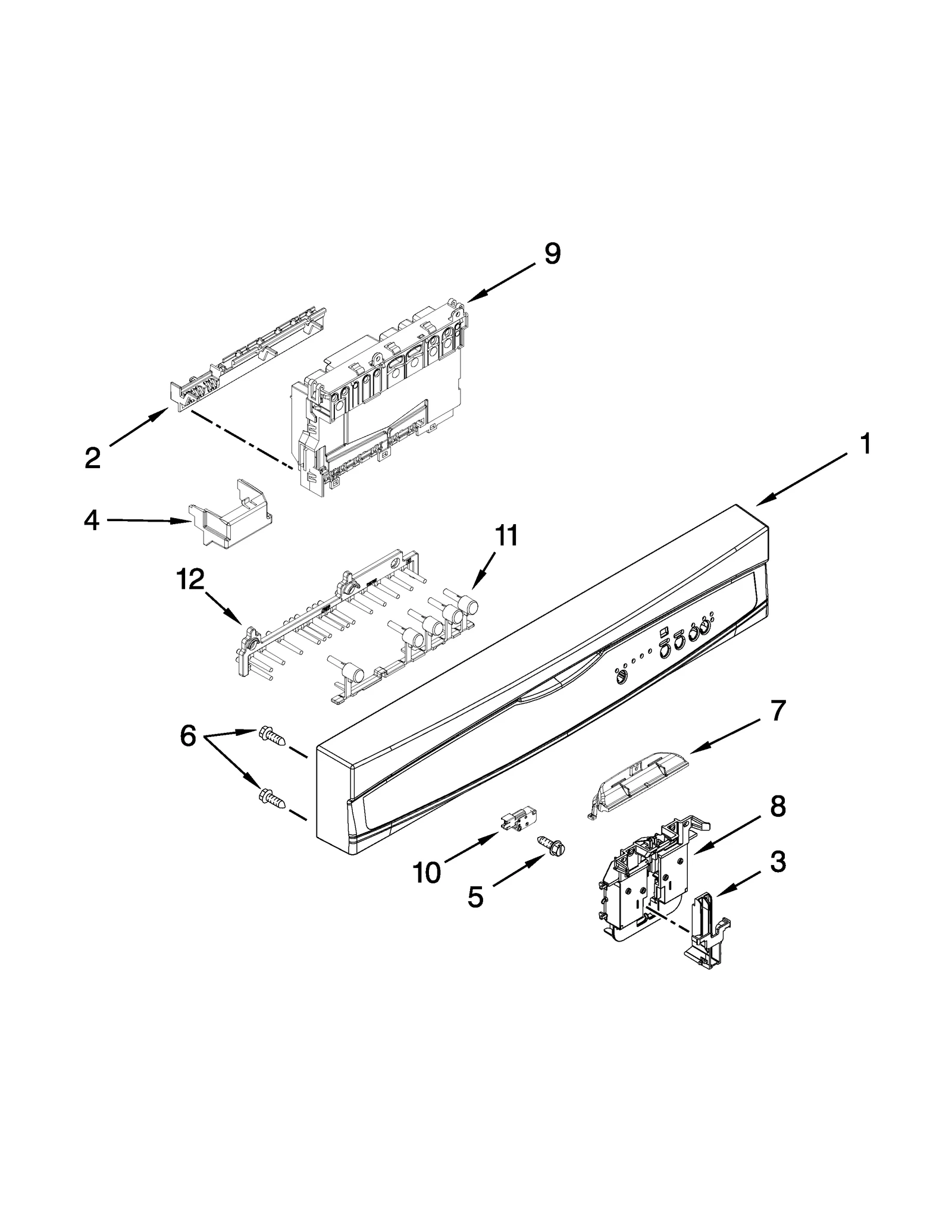

CONTROL PANEL AND LATCH PARTS
Parts in CONTROL PANEL AND LATCH PARTS
14 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | W10620354replaces W10620352 Console Assembly | - |
| 1A |  | W10620355replaces W10620353 Console Assembly | - |
| 2 |  | WPW10372484replaces W10372484 Brace | - |
| 3 |  | WP8524471replaces 8524471 Dishwasher Door Latch Actuator | $22.46 Part Advantage |
| 4 |  | W10783730replaces W10756253 Dishwasher Control Board Connector Cover | $18.88 RepairClinic |
| 5 |  | WP3400412replaces 3400412 Dishwasher Screw | $2.30 Part Advantage |
| 6 |  | WPW10348413replaces W10348413 Dishwasher Screw | $2.66 Part Advantage |
| 7 |  | WP8269323replaces 8269323 Dishwasher Door Handle | $64.70 ApplianceParts Pro |
| 7A | | WP8269323replaces 8269324 Handle (White) | $64.70 ApplianceParts Pro |
| 8 |  | WPW10274884replaces W10274884 Dishwasher Door Latch | $41.03 Part Advantage |
| 9 |  | W10906419replaces W10756231 Ctrl_yod_n61 | $164.77 PartSelect |
| 10 |  | WPW10274880replaces W10274880 Dishwasher Door Switch | $26.69 Part Advantage |
| 11 |  | Dishwasher Control Panel Button Set | - |
| 12 | | Dishwasher Valve Guide | - |
