Model
Kenmore 66514422N510
Dishwasher (Kenmore 66514422N510)
Parts Sections (10)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
66514422N510Dishwasher (Kenmore 66514422N510)
10 diagrams127 parts
Parts Sections (10)
Diagram

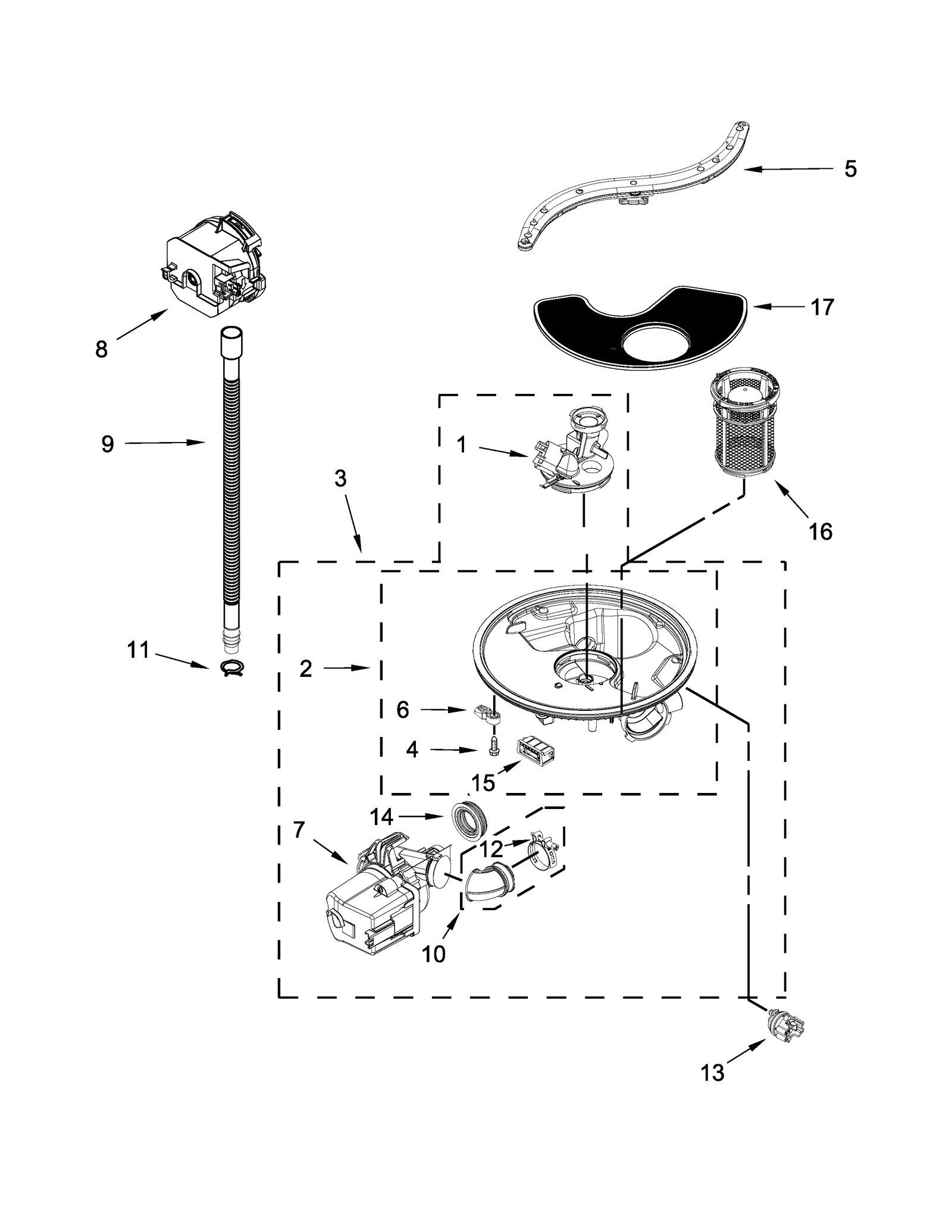

PUMP, WASHARM AND MOTOR PARTS
Parts in PUMP, WASHARM AND MOTOR PARTS
17 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | WPW10455271replaces W10455271 Cover | $10.94 Part Advantage |
| 2 |  | WPW10482462replaces W10482462 Dishwasher Sump and Seal Assembly | $99.18 Part Advantage |
| 3 |  | W10837026replaces W10733530 Sump Motor | $132.58 Part Advantage |
| 4 |  | WPW10348407replaces W10348407 Dishwasher Screw | $5.95 ApplianceParts Pro |
| 5 |  | WPW10491331replaces W10342793 Dishwasher Spray Arm | $43.89 Part Advantage |
| 6 |  | WPW10372113replaces W10372113 Dishwasher Sump Tab | $11.33 Parts Dr |
| 7 |  | W10846093replaces W10610147 Wash Pump | $118.22 Part Advantage |
| 8 |  | W10876537replaces W10724439 Dishwasher Drain Pump | $49.07 Part Advantage |
| 9 |  | 8269144Areplaces 8269144 Dishwasher Drain Hose | $10.57 Part Advantage |
| 10 |  | Dishwasher Circulation Pump-to-Sump Hose | $46.60 Part Advantage |
| 11 |  | WP285655replaces 370445 Dishwasher Hose Clamp | $3.38 Part Advantage |
| 12 |  | W10789434replaces W10169167 Dishwasher Hose Clamp | $5.34 Amazon |
| 13 |  | W11084121replaces W10723295 Owi-global 2 | $31.64 Part Advantage |
| 14 |  | WPW10538166replaces W10538166 Dishwasher Pump Grommet | $12.94 Part Advantage |
| 15 |  | W11243394replaces W10195086 Dishwasher Sump Motor Isolator | $8.95 ApplianceParts Pro |
| 16 |  | W10872845replaces W10693534 Dishwasher Filter Cup | $27.41 Part Advantage |
| 17 |  | WPW10463906replaces W10463906 Dishwasher Filter | $12.38 Part Advantage |
