Model
Kenmore 66514503N020
DISHWASHER (Kenmore 66514503N020)
Parts Sections (10)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
66514503N020DISHWASHER (Kenmore 66514503N020)
10 diagrams135 parts
Parts Sections (10)
Diagram

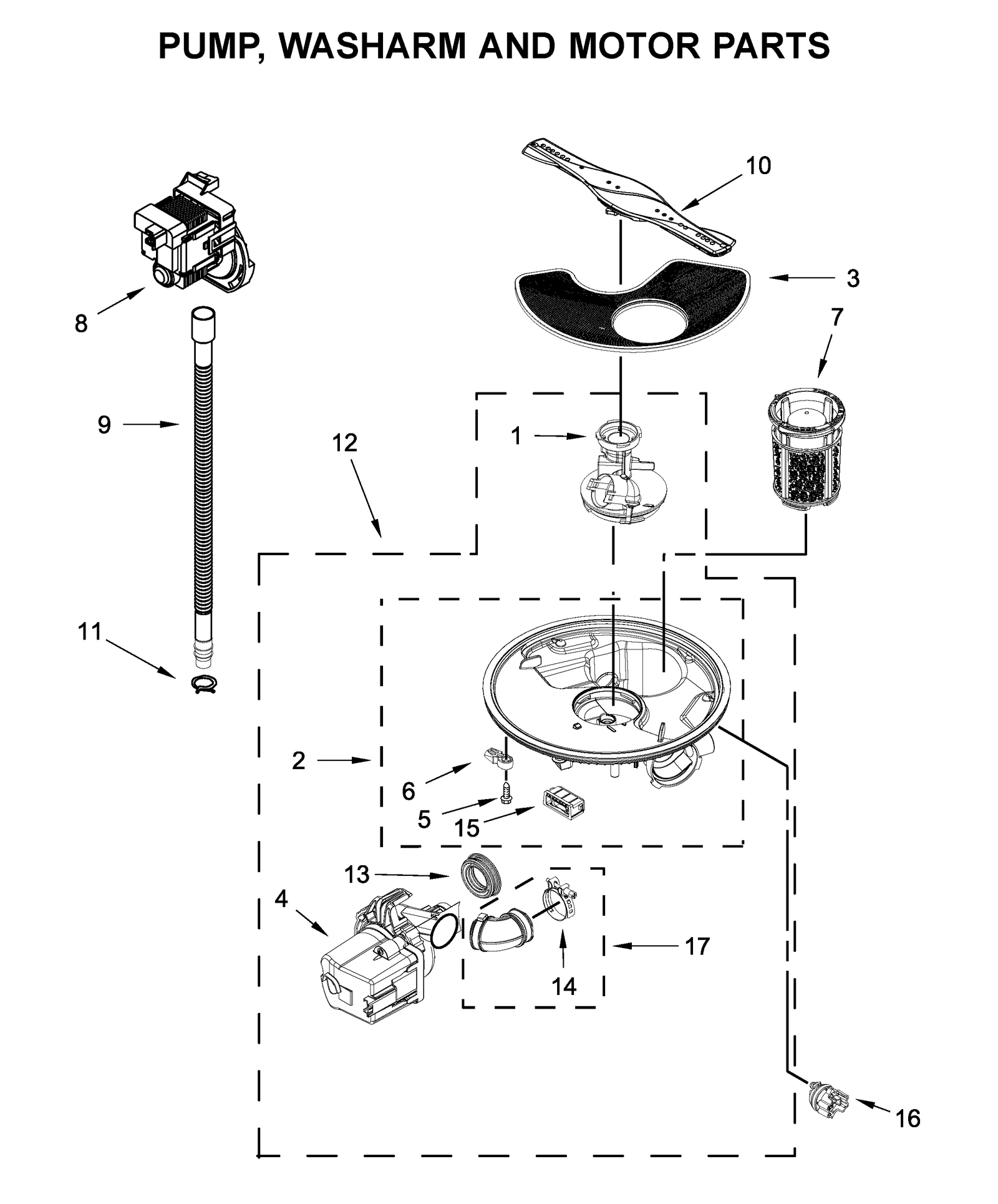

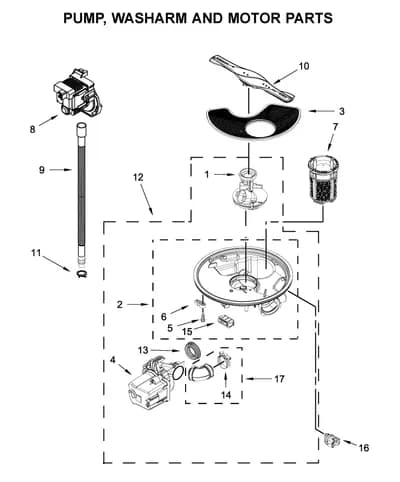

PUMP, WASHARM AND MOTOR PARTS
Parts in PUMP, WASHARM AND MOTOR PARTS
17 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | WPW10455271replaces W10455271 Cover | $10.94 Part Advantage |
| 2 |  | WPW10482462replaces W10482462 Dishwasher Sump and Seal Assembly | $99.18 Part Advantage |
| 3 |  | WPW10463906replaces W10463906 Dishwasher Filter | $12.38 Part Advantage |
| 4 |  | W11612326replaces W10805386 MP-SNGL PHAS | $54.75 Part Advantage |
| 5 |  | WPW10348407replaces W10348407 Dishwasher Screw | $5.95 ApplianceParts Pro |
| 6 |  | WPW10372113replaces W10372113 Dishwasher Sump Tab | $11.33 Parts Dr |
| 7 |  | W10872845replaces W10789806 FILTER CUP A | $27.41 Part Advantage |
| 8 |  | W10876537replaces W10724439 Dishwasher Drain Pump | $49.07 Part Advantage |
| 9 |  | 8269144Areplaces 8269144 Dishwasher Drain Hose | $10.57 Part Advantage |
| 10 |  | WPW10491331replaces W10342793 Dishwasher Spray Arm | $43.89 Part Advantage |
| 11 |  | WP285655replaces 370445 Dishwasher Hose Clamp | $3.38 Part Advantage |

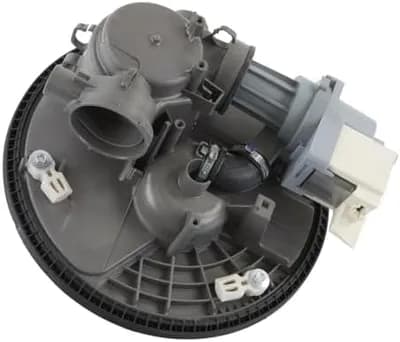

| 12 |  | W11025157replaces W10837401 Sump and Motor Assembly | $139.21 Part Advantage |
| 13 |  | WPW10538166replaces W11182008 GROMMET | $12.94 Part Advantage |
| 14 |  | W10789434replaces W10169167 Dishwasher Hose Clamp | $5.34 Amazon |
| 15 |  | W11243394replaces W10195086 Dishwasher Sump Motor Isolator | $8.95 ApplianceParts Pro |
| 16 |  | W11084121replaces W10723295 Owi-global 2 | $31.64 Part Advantage |
| 17 |  | Dishwasher Circulation Pump-to-Sump Hose | $46.60 Part Advantage |
