Model
Kenmore 66514523N610
Dishwasher (Kenmore 66514523N610)
Parts Sections (10)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
66514523N610Dishwasher (Kenmore 66514523N610)
10 diagrams165 parts
Parts Sections (10)
Diagram

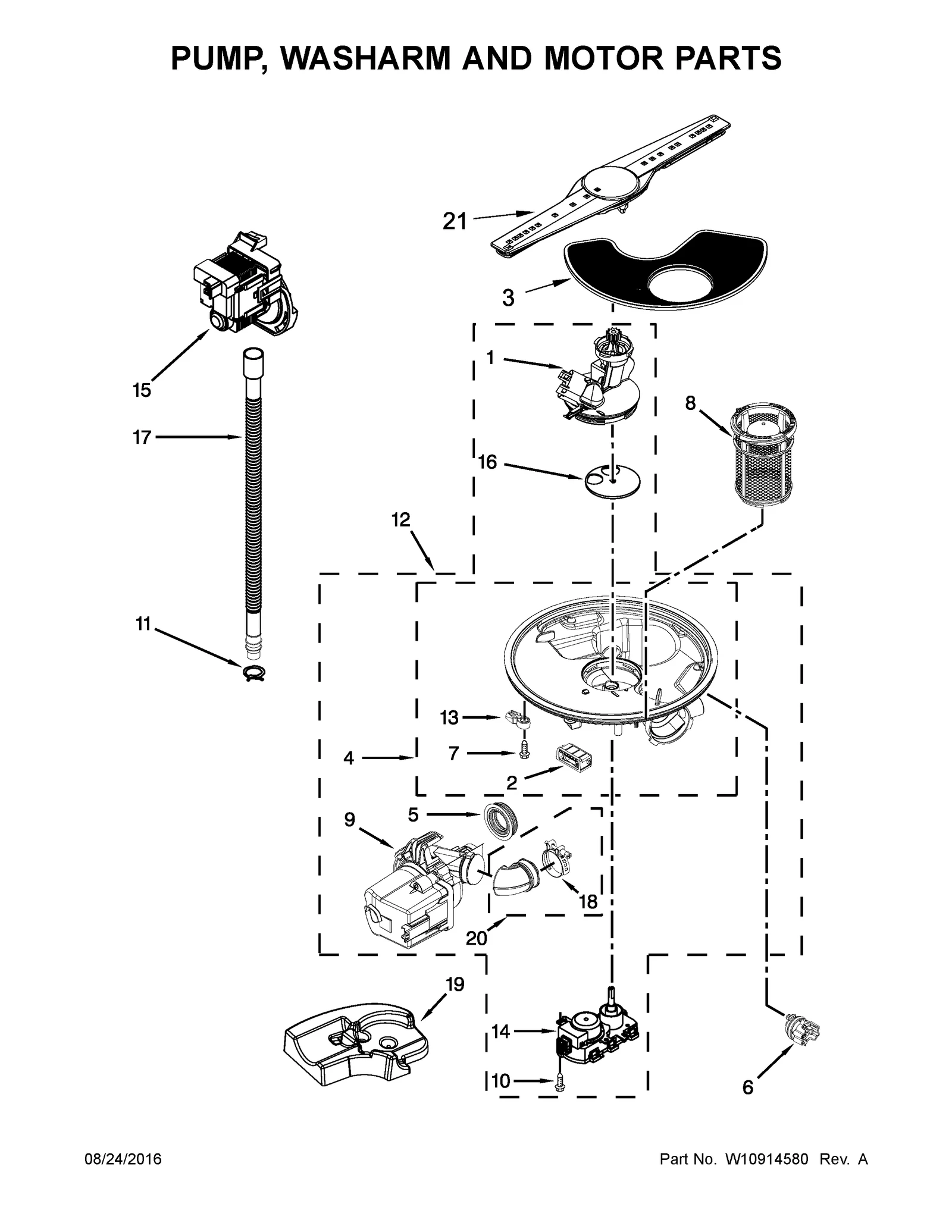

PUMP, WASHARM AND MOTOR PARTS
Parts in PUMP, WASHARM AND MOTOR PARTS
21 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | W10500351NLA Dishwasher Pump Outlet and Seal | Discontinued |
| 2 |  | W11243394replaces W10195086 Dishwasher Sump Motor Isolator | $8.95 ApplianceParts Pro |
| 3 |  | WPW10463906replaces W10463906 Dishwasher Filter | $12.38 Part Advantage |
| 4 |  | WPW10455268replaces W10455268 Dishwasher Sump and Seal Assembly | $72.65 Part Advantage |
| 5 |  | WPW10538166replaces W10538166 Dishwasher Pump Grommet | $12.94 Part Advantage |
| 6 |  | W11084121replaces W10723295 Owi-global 2 | $31.64 Part Advantage |
| 7 |  | WPW10348407replaces W10348407 Dishwasher Screw | $5.95 ApplianceParts Pro |
| 8 |  | W10872845replaces W10789806 FILTER CUP A | $27.41 Part Advantage |
| 9 |  | W11032770replaces W10816492 Mp-sngl Phas | $137.07 Parts Dr |
| 10 |  | WP9741232replaces 9741232 Dishwasher Screw | $2.30 Part Advantage |
| 11 |  | WP8269146replaces 8269146 Dishwasher Hose Clamp | $9.57 ApplianceParts Pro |
| 12 |  | W10902323replaces W10620221 Dishwasher Sump and Motor Assembly | $163.76 Parts Dr |
| 13 |  | WPW10372113replaces W10372113 Dishwasher Sump Tab | $11.33 Parts Dr |
| 14 |  | W10537869replaces W10849439 Dishwasher Diverter Motor | $41.24 Part Advantage |

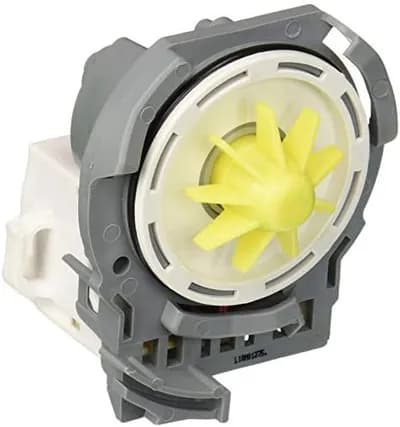

| 15 |  | W10876537replaces W10724439 Dishwasher Drain Pump | $49.07 Part Advantage |
| 16 |  | WPW10476221replaces W10476221 Dishwasher Pump Diverter Disc | $21.45 PartSelect |
| 17 |  | 8269144Areplaces 8269144 Dishwasher Drain Hose | $10.57 Part Advantage |
| 18 |  | W10789434replaces W10169167 Dishwasher Hose Clamp | $5.34 Amazon |

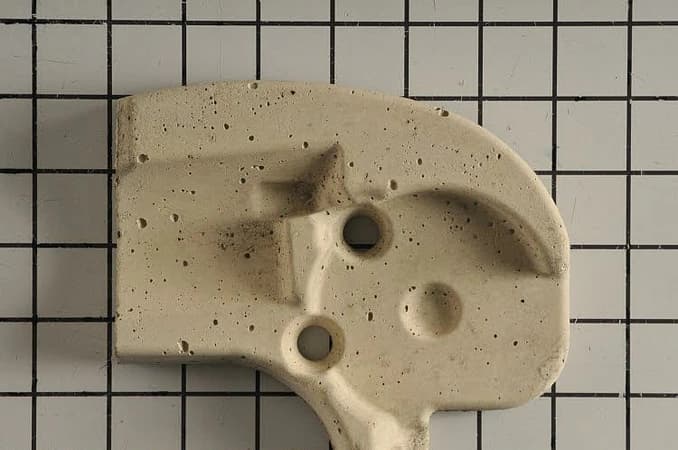

| 19 |  | W10350335replaces W10300776 Dishwasher Sump Damper | - |
| 20 |  | Dishwasher Circulation Pump-to-Sump Hose | $46.60 Part Advantage |
| 21 |  | WPW10491331replaces W10500354 Dishwasher Spray Arm, Lower | $43.89 Part Advantage |
