Model
Kenmore 66514562N610
Dishwasher (Kenmore 66514562N610)
Parts Sections (10)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
66514562N610Dishwasher (Kenmore 66514562N610)
10 diagrams168 parts
Parts Sections (10)
Diagram

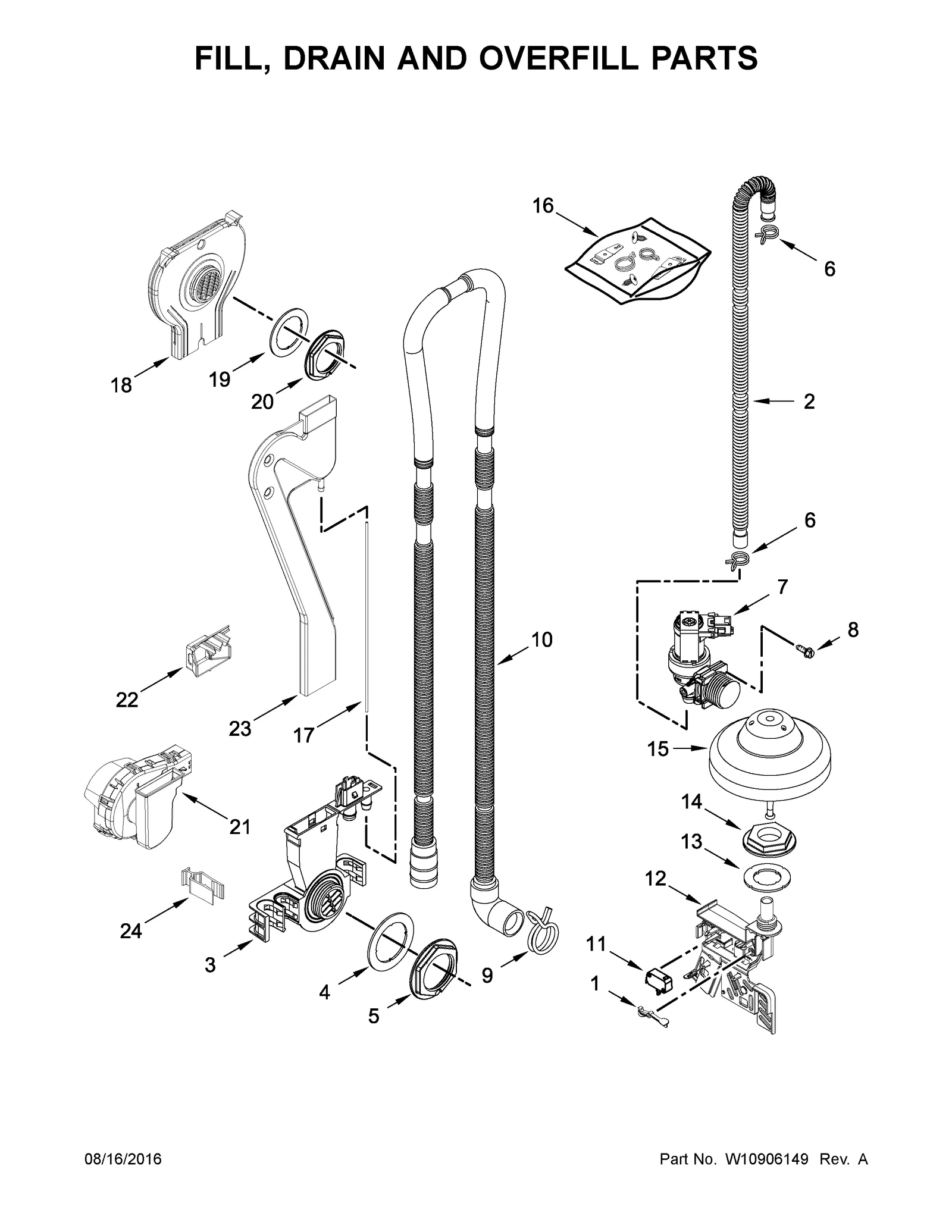

FILL, DRAIN AND OVERFILL PARTS
Parts in FILL, DRAIN AND OVERFILL PARTS
24 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | WPW10195037replaces W10195037 Dishwasher Float Switch Lever | $3.29 Part Advantage |
| 2 |  | W10878507replaces W10769066 Hose | $34.90 Part Advantage |

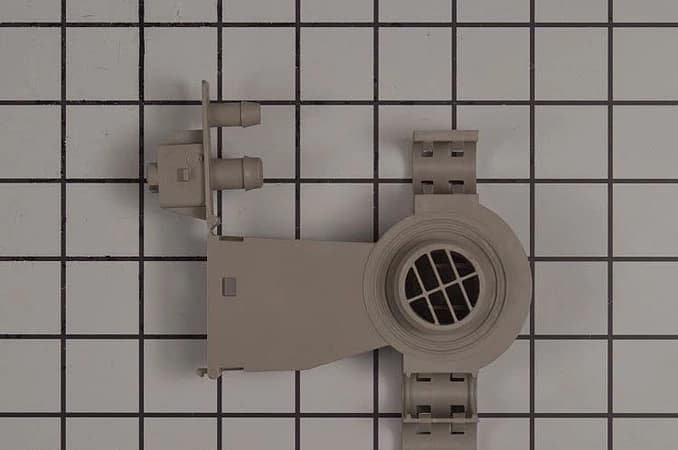

| 3 |  | W11676544replaces W10584470 Dishwasher Water Inlet Port | $14.64 ApplianceParts Pro |
| 4 |  | WP8531323replaces 8531323 Dishwasher Water Inlet Port Gasket | $11.93 Part Advantage |
| 5 |  | WPW10213825replaces W10213825 Dishwasher Water Inlet Port Nut | $9.57 ApplianceParts Pro |
| 6 |  | WP596669replaces 371505 Clamp | $2.30 Part Advantage |
| 7 |  | W11175771replaces W10327250 Dishwasher Water Inlet Valve | $37.49 Part Advantage |
| 8 |  | WP489069replaces 304392 Appliance Screw | $2.30 Part Advantage |
| 9 |  | WP285655replaces 370445 Dishwasher Hose Clamp | $3.38 Part Advantage |
| 10 |  | WPW10545278replaces W10545278 Dishwasher Drain Hose | $37.35 Part Advantage |
| 11 |  | WPW10195039replaces W10734532 Switch | $27.31 Part Advantage |
| 12 |  | W10873429replaces W10647205 Housing Overlay | $11.48 Part Advantage |
| 13 |  | WP8531743replaces 8531743 Dishwasher Float Switch Base Gasket | $19.46 Part Advantage |
| 14 |  | WPW10195038replaces W10195038 Dishwasher Float Switch Base Lock Nut | $3.38 Part Advantage |
| 15 |  | WPW10195036replaces W10195036 Dishwasher Float Assembly | $30.50 Part Advantage |
| 16 |  | WPW10292170replaces W10786174 BAG ASM (LOO | $33.43 Part Advantage |
| 17 |  | Dishwasher Vent Tube | - |

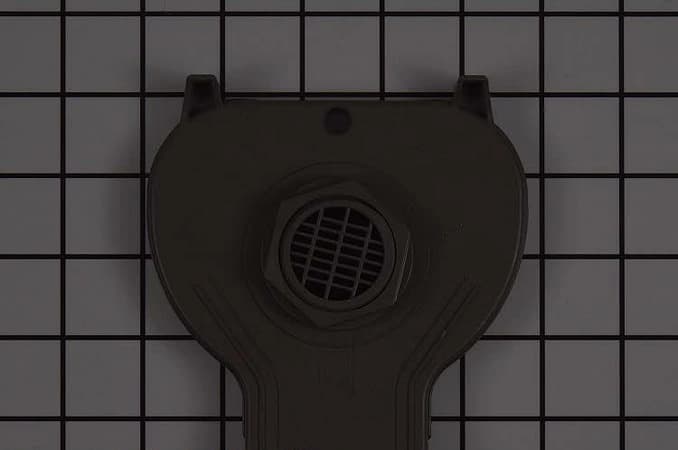

| 18 |  | W10871832replaces W10851715 Air Outlet | $34.47 RepairClinic |
| 19 |  | Dishwasher Water Inlet Port Gasket | $17.19 Parts Dr |
| 20 | | W10871832replaces W10851721 NUT, LOCKING | $34.47 RepairClinic |
| 21 |  | W11228135replaces W10673168 Dishwasher Blower Assembly | $49.19 Parts Dr |
| 22 |  | Nozzle | - |
| 23 | | W11288079replaces W10770367 Exhaust Tube | $31.94 Part Advantage |
| 24 | | Dishwasher Vent Duct Retainer Clip | - |
