Model
IKEA IFW7200TW10
Automatic Washer
Parts Sections (5)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelIKEA
IFW7200TW10Automatic Washer
5 diagrams131 parts

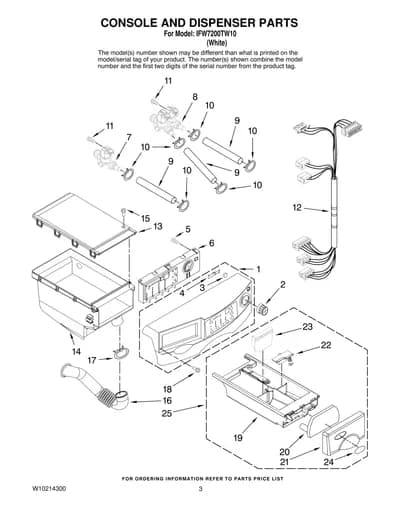

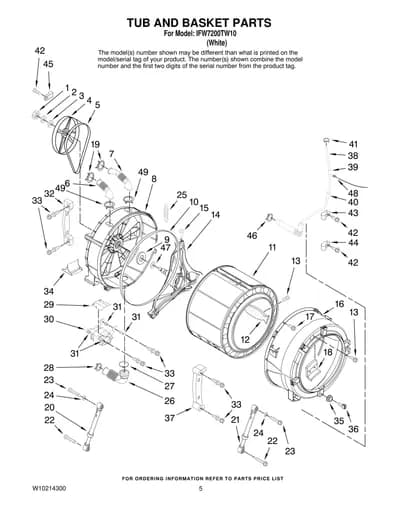

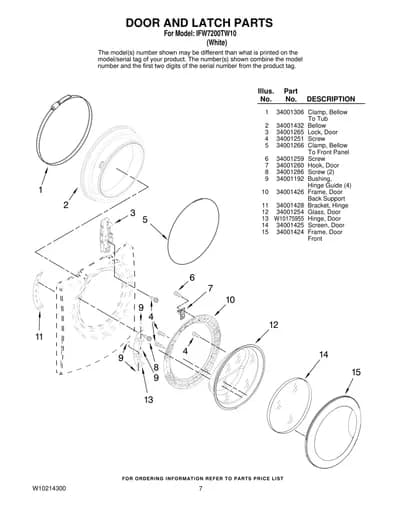

Parts Sections (5)
Diagram

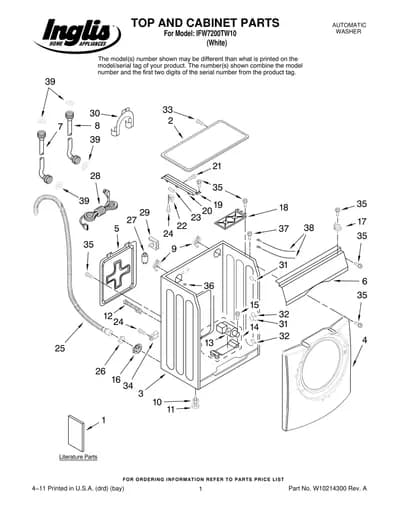

TOP AND CABINET PARTS
Parts in TOP AND CABINET PARTS
41 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10178031 Use & Care Guide | - |
| 1 | – | W10178029 Tech Sheet | - |
| 1 | – | W10178033 Installation Instructions | - |
| 2 | – | 34001332 Top | - |
| 3 |  | Cabinet | - |
| 4 | – | 34001427 Panel, Front | - |
| 5 | – | 34001338 Rear Panel | - |
| 6 | – | 34001441 Frame, Upper Front | - |
| 7 | – | W10267649 Hose, Water Inlet | - |
| 8 | – | W10267650 Hose, Water Inlet | - |
| 9 | – | 34001400 Cap, Ventilation Assembly | - |
| 10 |  | WP34001389replaces 34001389 Nut, Lock (4) | $5.95 ApplianceParts Pro |
| 11 | – | 34001341 Foot, Leveling (4) | - |
| 12 | – | 34001337 Bolt, Shipping (4) | - |

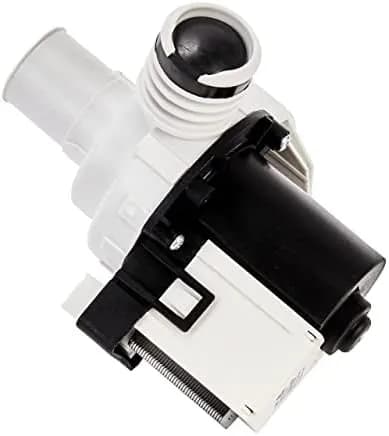

| 13 |  | WP34001340replaces 34001340 Pump, Drain | $78.67 Part Advantage |
| 14 |  | WPW10175948replaces W10175948 Pump, Drain− Complete Assembly | $169.83 Parts Dr |
| 15 | – | 34001388 Bolt | - |
| 16 | – | 34001200 Guide, Drain Hose | - |
| 17 |  | Switch, Pressure Sensor | Discontinued |
| 18 | – | 34001443 Absorber Assembly | - |
| 19 | | 34001326NLA Channel, Harness | Discontinued |
| 20 | | Bracket, Harness Channel | - |
| 21 |  | WP98008545replaces 34001232 Screw | $7.43 ApplianceParts Pro |
| 22 | – | 34001333 Trans−Reactor | - |
| 23 | – | 34001334 Bracket, Heater | - |
| 24 | | Screw | - |
| 25 | – | 34001095 Hose, Drain | - |
| 26 |  | WP596669replaces 34001161 Clamp, Hose | $2.30 Part Advantage |
| 27 | – | 34001330 Filter, EMI | - |
| 28 | – | 34001204 Cord, Power | - |
| 29 | – | 34001331 Clip, Outer Hose Holder | - |
| 30 | – | 34001336 U−Bend, Drain Hose | - |
| 31 | | 35001004NLA Clip, Harness | Discontinued |
| 32 | | Clip, Harness | - |
| 33 | | Screw (2) | - |
| 34 | – | 34001299 Clamp, Drain Hose Retainer | - |
| 35 | – | 34001252 Screw | - |
| 36 | | Guide, Spring− Washer Only | - |
| 37 | – | 34001317 Screw, Special | - |
| 38 |  | WPW10339879replaces 34001229 Tie, Wire | $2.30 Part Advantage |
| 39 | – | W10267651 Washer | - |
